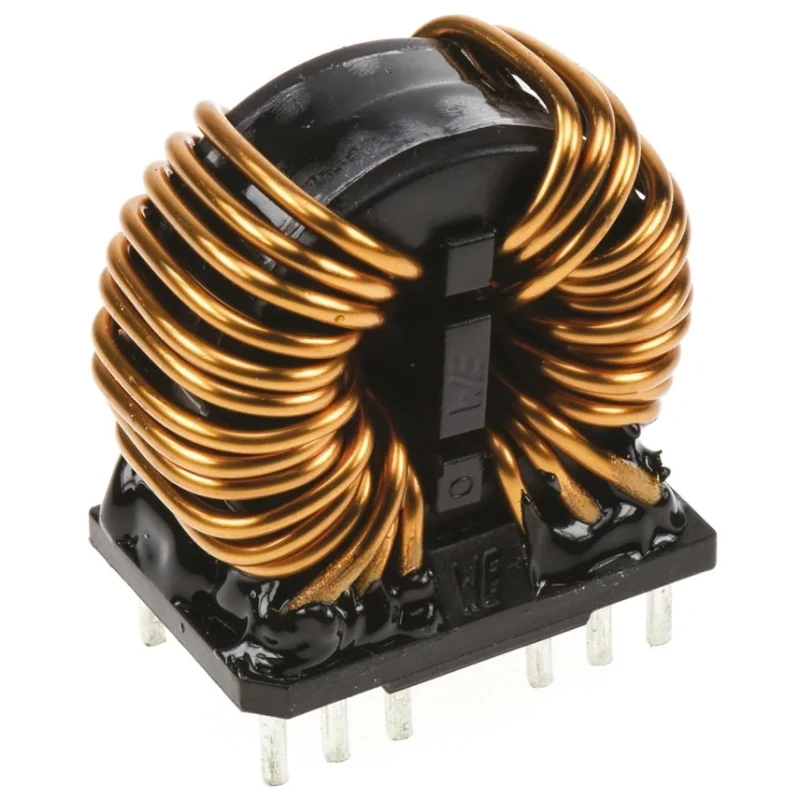

Wurth Elektronik 190 mH Nano Crystal Common Mode Choke 2 A Idc 310 mΩ Rdc Max SRF 300 MHz WE-CMBNC 7448050219
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 33mm |
| Brand | Wurth Elektronik |
| Height | 39mm |
| Length | 33mm |
| Depth | 19mm |
| Packaging | Tray & Carton |
| Mount Type | Through Hole |
| Series | WE-CMBNC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Test Frequency | 50Hz |
| Core Material | Nano Crystal |
| Inductance | 190mH |
| Standards/Approvals | ENEC 10, REACH, RoHS, VDE |
| Maximum DC Current | 2A |
| Maximum DC Resistance | 310mΩ |
| Inductance Tolerance | -30 to 50 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 300MHz |
| Lead Pitch | 25mm |
| Lead Diameter | 1mm |
| Small size Frequency range | 1 kHz-300 MHz |
| Wurth Elektronik 90 mH Nano Crystal Common Mode Choke, Max SRF | 300 MHz, 3.5 A Idc, 110 mΩ Rdc 250V ac, WE-CMBNCBrand: Wurth Elektronik |
| Wurth Elektronik 190 mH Nano Crystal Common Mode Choke, Max SRF | 300 MHz, 2 A Idc, 310 mΩ Rdc, WE-CMBNC |
Key Features
- Constructed with a nano crystalline core for improved permeability and performance.
- Supports a maximum DC current of 2 A for reliable operation.
- Features a maximum DC resistance of 310 milliohms ensuring low power loss.
- Designed for a maximum self-resonant frequency of 300 MHz for broadband suppression.
- Suitable for through-hole mount with lead diameter of 1 mm and lead pitch of 25 mm.
- Compact dimensions of 33 mm diameter, 39 mm height, 33 mm length, and 19 mm depth.
- Operates reliably within temperature range of -40°C to 125°C.
- RoHS, REACH, ENEC 10, and VDE compliant, ensuring quality and safety standards.
Product Description
Wurth Elektronik 7448050219 Nano Crystal Common Mode Choke is a high-quality leaded inductor designed for advanced power electronics applications. It incorporates a nano crystalline core material that delivers very high permeability and stable inductance values even at elevated temperatures. Rated for a maximum DC current of 2 A, this component offers a maximum DC resistance of 310 milliohms, balancing efficiency with effective noise suppression.
This common mode choke operates effectively up to a maximum self-resonant frequency of 300 MHz, providing broadband suppression capabilities across 1 kHz to 300 MHz. Engineered for through hole mounting with 1 mm lead diameter and 25 mm lead pitch, the choke measures 33 mm in diameter, 39 mm in height, 33 mm in length, and 19 mm in depth, making it compact and suitable for tight PCB layouts.
The operating temperature range is from -40°C to 125°C, allowing use in harsh environments. Compliance with ENEC 10, REACH, RoHS, and VDE standards ensures the component meets rigorous quality and environmental regulations.
Common applications include filtering power lines, suppressing radio interference in motors, and enhancing power line input and output filters. The plastic case and winding spacer improve isolation and durability for demanding industrial and commercial electronic systems.
Wurth Elektronik is recognized for engineering excellence and innovation in electronics components, providing reliable solutions tailored to laboratory, industrial, HVAC, manufacturing, and agricultural electronic applications.
Made with nano crystalline core for superior performance. Handles up to 2 amperes of DC current. Low DC resistance of 310 milliohms reduces power loss. Broad frequency range with self-resonant frequency up to 300 MHz. Compact through-hole design with standard lead dimensions.
Wide operating temperature range for versatile use. Compliant with multiple international safety and ecological standards. Ideal for noise suppression in power electronics and motors. Explore more electronic components and leaded Inductors from Wurth Elektronik on EnvMart for high-quality, precision electronics manufacturing and assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this common mode choke is 190 mH.
It supports a maximum DC current of 2 A for reliable operation.
The maximum DC resistance is 310 milliohms, ensuring low power loss during operation.
The choke has a maximum self-resonant frequency of 300 MHz, suitable for broadband suppression.
It has a diameter of 33 mm, height of 39 mm, length of 33 mm, and depth of 19 mm.
The operating temperature range is from -40°C to 125°C, allowing for use in harsh environments.
This model is designed for through-hole mounting with a lead diameter of 1 mm and lead pitch of 25 mm.
It is compliant with ENEC 10, REACH, RoHS, and VDE standards, ensuring quality and safety.
It is constructed with a nano crystalline core for improved permeability and performance.
It is suitable for filtering power lines, suppressing radio interference in motors, and enhancing power line input and output filters.
The common mode choke is packaged in tray and carton for distribution.
The inductance tolerance is between -30% to +50%.
