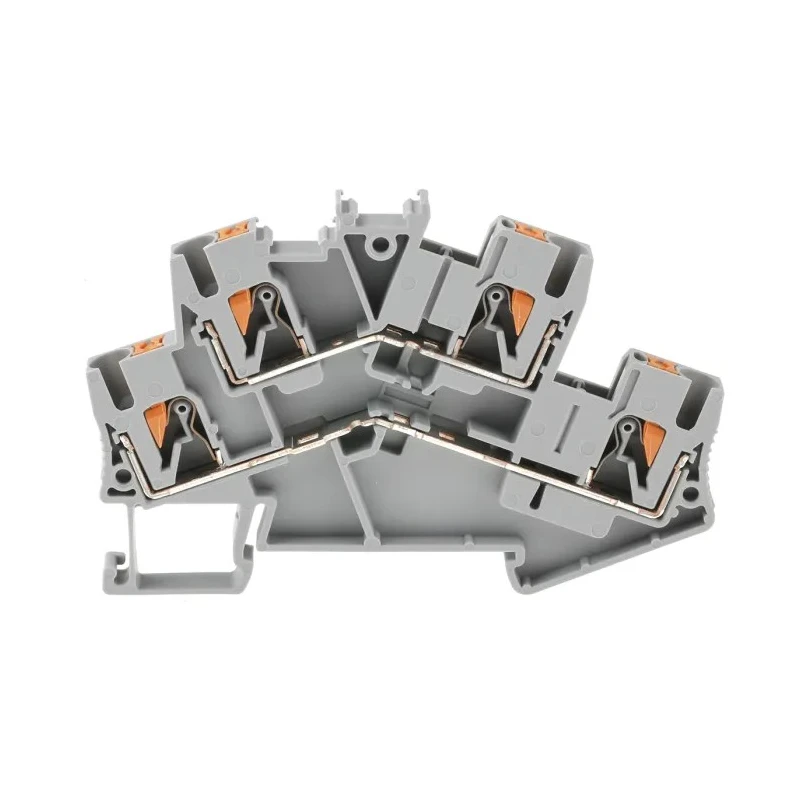

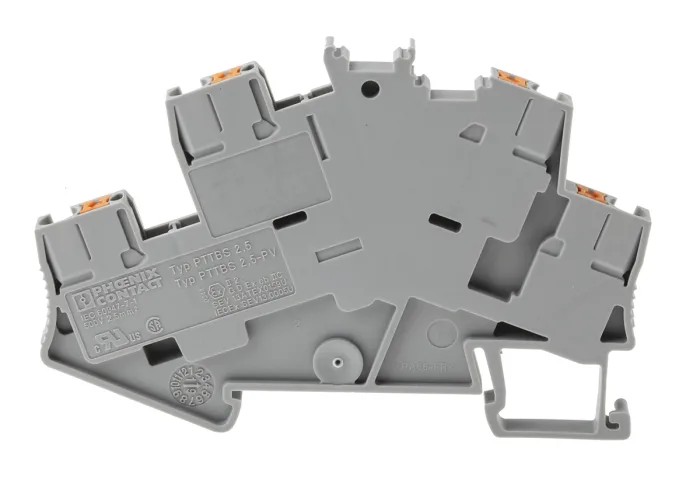

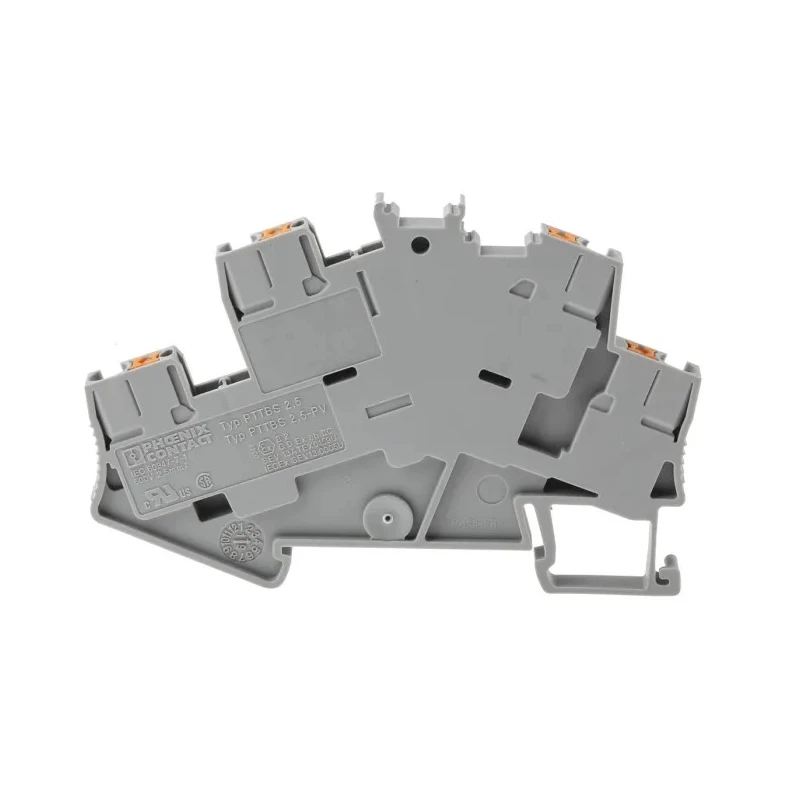

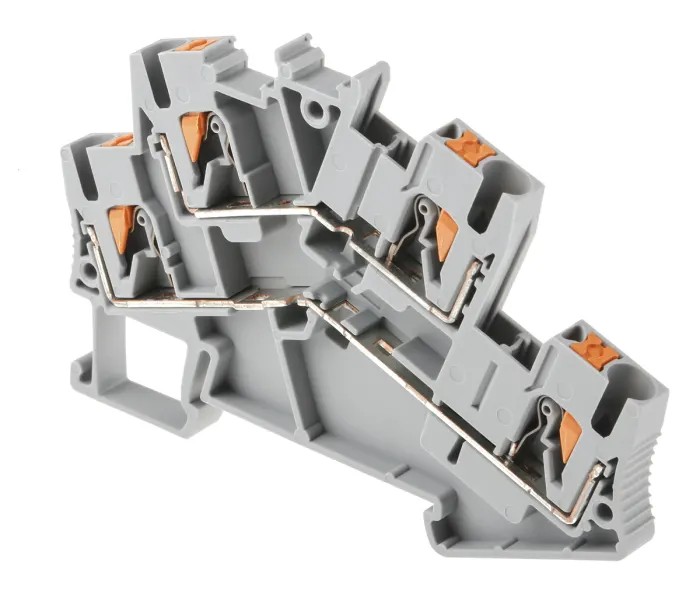

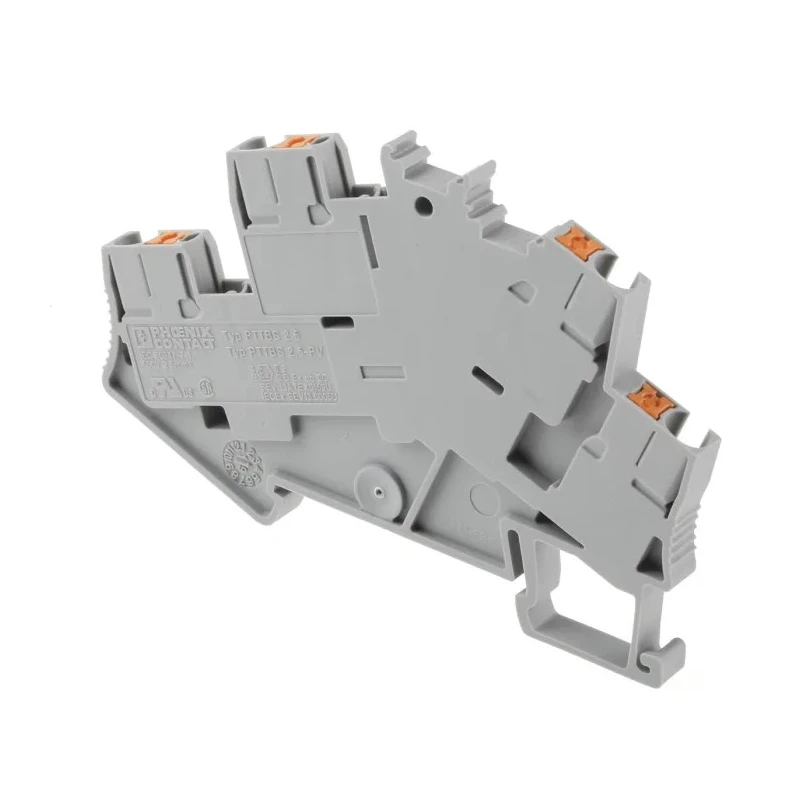

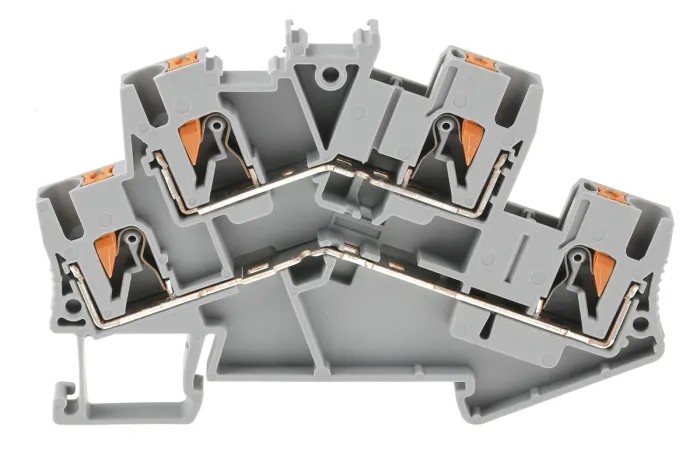

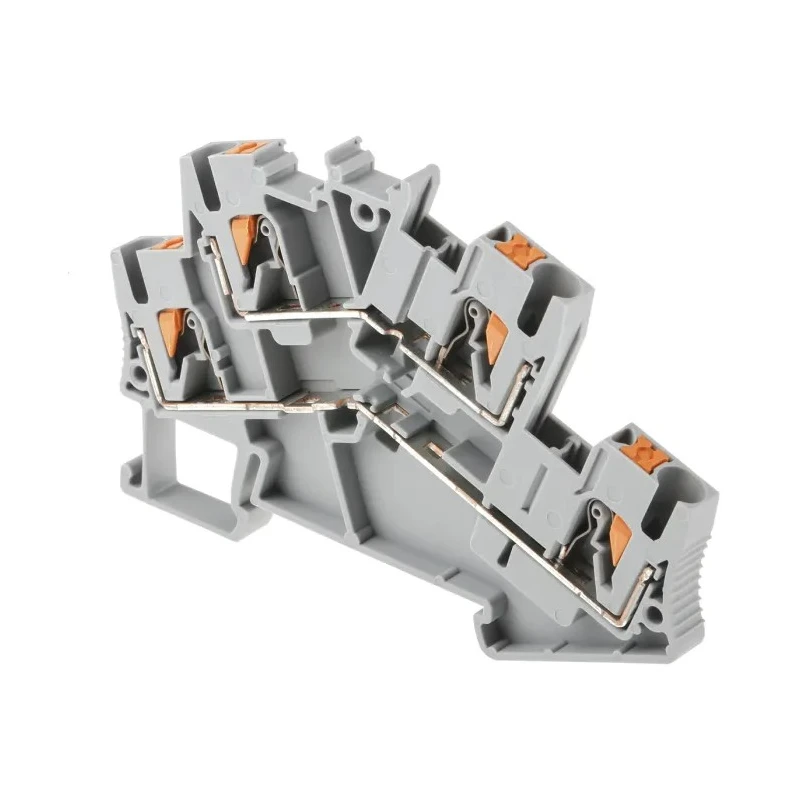

Phoenix Contact Double Level Terminal Block PTTBS 2.5 Series, Push-in Termination, 500V, 22A, Grey, 0.14mm² to 4mm² 3209604

Phoenix Contact 3209604 Double Level Terminal Block from the PTTBS 2.5 series is a compact and versatile electrical connector designed for making secure multi-level wire connections. With push-in termination and support for wire cross sections ranging from 0.14 mm² to 4 mm² (26 AWG to 12 AWG), it is ideal for medium voltage applications up to 500V and currents up to 22A. The terminal block’s grey color and dimensions of 5.2 mm width, 55 mm height, and 78 mm length allow for space-saving installation on DIN rails within electrical panels.

Featuring an operating temperature range of -60°C to 105°C, this terminal block performs reliably under demanding environmental conditions. Its construction is approved with multiple international standards such as ABS, ATEX, CSA, cUL, UL, VDE, IECEX, IECEE CB, IEC 60947-7-1, and more, making it suitable for diverse industrial, railway, and hazardous area installations. The ATEX certification ensures safety in explosion-prone areas, enhancing its utility in hazardous environment applications.

The double-level design allows for two wiring levels, facilitating complex wiring systems with a smaller footprint. The push-in connection method reduces insertion force by up to 50%, enabling quick and easy conductor insertion while maintaining a secure connection. The material meets the UL94V-0 fire safety rating, which limits flame spread to ensure enhanced fire safety.

The terminal block’s surge voltage rating of 6 kV protects connected circuits from voltage spikes, increasing system reliability. It also includes an actuation button to disconnect conductors or wire small cross sections safely. Its multi-level and double-level capabilities make it suitable for power distribution and supply circuits requiring compact, reliable DIN rail mounted terminal blocks.

Push-in connection for fast conductor insertion and maintenance. Compact and space-saving double-level design for efficient wiring. Supports wire sizes from 0.14 mm² to 4 mm² (26 to 12 AWG). Rated for 500V and 22A suitable for medium voltage applications.

Wide operating temperature range from -60°C to 105°C for harsh environments. Certified with ATEX and multiple international standards for hazardous locations. UL94V-0 fire safety rated material ensures flame resistance. Surge voltage rating of 6 kV withstands voltage spikes.

Actuation button facilitates safe conductor disconnection.

This Phoenix Contact terminal block is an excellent choice for industrial, railway, power distribution, and hazardous area applications requiring compact and reliable multi-level connection solutions. Explore EnvMart’s range of DIN rail Terminal Blocks for comprehensive electrical connectivity solutions.
