| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 1.2mm |
| Length | 3.6mm |
| Model | NZH5V6B,115 |
| Mount Type | Surface |
| Series | NZH |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | EU/CN RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 1W |
| Diode Configuration | Single |
| Test Current It | 20mA |
| Maximum Reverse Leakage Current | 5μA |
| Nominal Zener Voltage Vz | 5.6V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 13Ω |

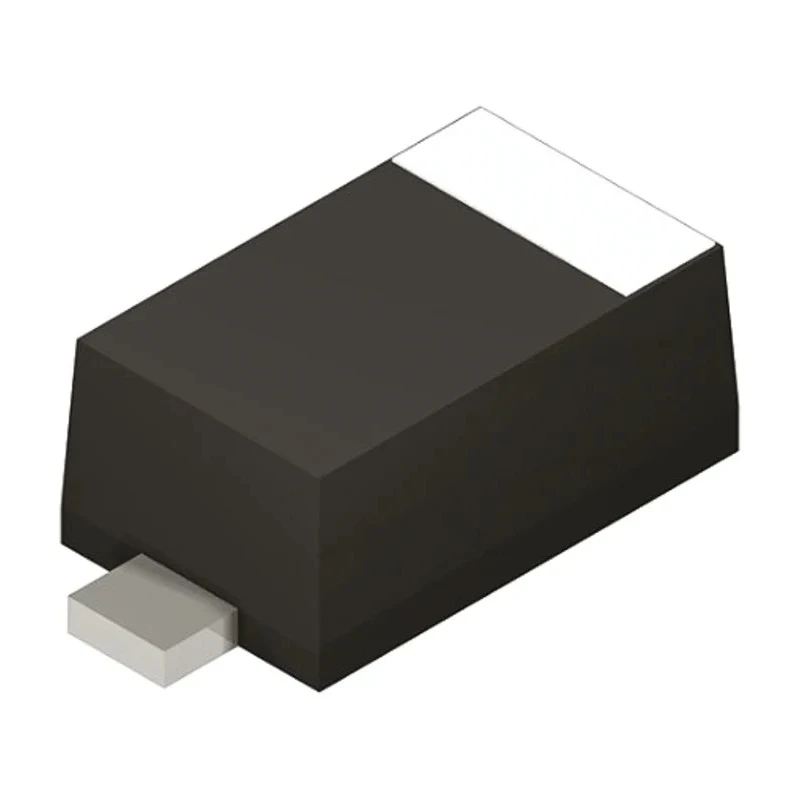

Nexperia NZH5V6B,115 is a high-quality, single Zener diode designed for voltage regulation and protection applications. Featuring a nominal Zener voltage of 5.6 V and a power dissipation rating of 1 watt, this device is optimized for surface mount technology with a 2-pin SOD-123 package. It offers precise voltage regulation with a tolerance of ±2.5%, making it ideal for electronic circuits requiring stable voltage clamping.
The diode supports a test current of 20 mA and maintains a low maximum reverse leakage current of 5 μA. It operates reliably across a wide temperature range from -55°C up to 150°C, suitable for industrial, automotive, and commercial electronics. Its maximum Zener impedance is 13 ohms, enhancing performance in transient voltage suppression.
Designed to meet automotive standard AEC-Q101 and compliant with EU/CN RoHS directives, this component aligns with industry standards for safety and environmental sustainability. Its compact dimensions, including a length of 3.6 mm and height of 1.2 mm, facilitate easy PCB integration in space-constrained devices.
This diode is ideal for use in semiconductor circuits, power management, signal conditioning, and other applications requiring effective voltage stabilization and protection. Its general-purpose Zener type suits multiple electronic configurations for voltage reference and zener clamping functions.
Nominal Zener voltage of 5.6 V for voltage regulation. 1 watt power dissipation rated for stable operation. Compact surface mount package SOD-123 with 2 pins. Voltage tolerance ±2.5% for precision applications. Operating temperature range from -55°C to 150°C.
Low reverse leakage current of 5 μA minimizes power loss. Automotive grade AEC-Q101 compliant for reliability. RoHS compliant ensuring environmental safety. Dimensions: 3.6 mm length, 1.2 mm height. General purpose Zener diode suitable for various circuits.
Explore the Nexperia range at EnvMart for reliable semiconductor components tailored to your industrial and commercial needs. Our Zener diode lineup includes precision devices ideal for electronic design engineers and manufacturers.
