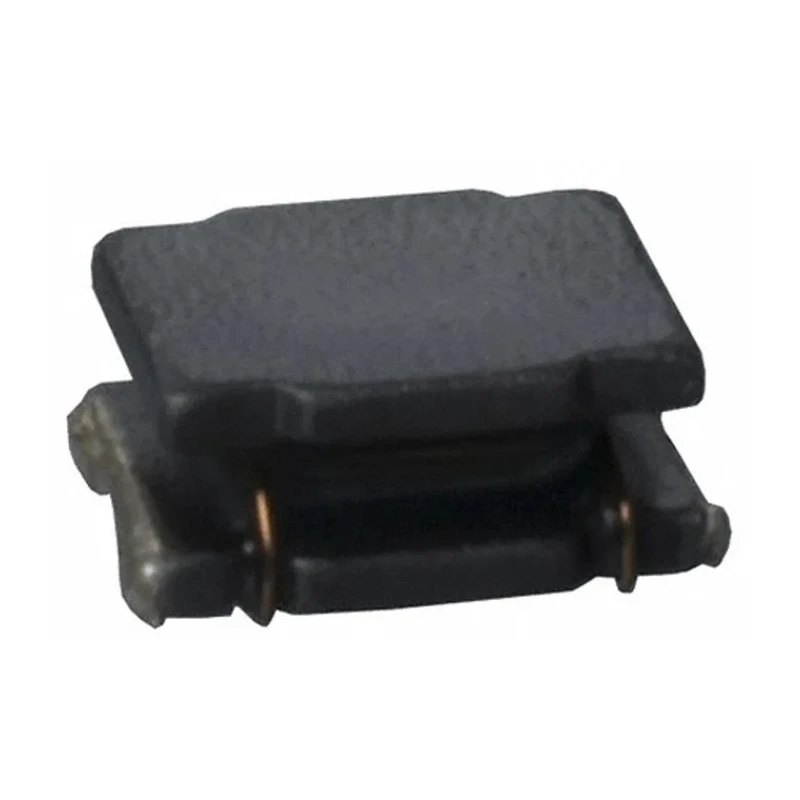

Murata Shielded Wirewound Surface Mount Inductor with Ferrite Core 22 μH ±20% 700 mA Idc 4532 Package LQH43PN220M26L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 2.6mm |
| Length | 4.5mm |
| Model | LQH43PN220M26L |
| Depth | 3.2mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 4532 |
| Maximum DC Current | 700mA |
| Maximum DC Resistance | 327mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 15MHz |
| Inductor Construction | Wirewound |
Key Features
- Features a 4532 package size for efficient surface mounting.
- Constructed with a ferrite core and wirewound construction for high inductance values.
- Shielded design reduces electromagnetic interference for enhanced performance.
- Operates reliably from -40°C to 85°C temperature range.
- Has a maximum DC resistance of 327 mΩ ensuring low power loss.
- Rated for a maximum self-resonant frequency of 15 MHz.
- Embossed tape packaging optimizes manufacturing assembly processes.
- Suitable for applications in digital cameras, mobile phones, TVs, and gaming machines.
Product Description
Murata LQH43PN220M26L is a shielded wirewound surface mount inductor designed with a ferrite core to provide a stable inductance of 22 μH with ±20% tolerance. This component supports a maximum DC current of 700 mA, making it ideal for power supply booster circuits and compact electronics requiring reliable inductance within small form factors.
The inductor is housed in a 4532 package, measuring 4.5 mm in length, 2.6 mm in height, and 3.2 mm in depth. The wirewound construction over a ferrite core enhances inductance while the resin coating improves mechanical strength and durability. This shielded design effectively minimizes electromagnetic interference, making it suitable for sensitive electronics applications.
Operating temperature ranges from -40°C to 85°C, ensuring performance stability across typical industrial and consumer environments. The maximum DC resistance is 327 mΩ, providing efficiency by reducing power losses. With a maximum self-resonant frequency of 15 MHz, it supports a broad range of frequency applications.
Packaging via embossed tape facilitates automated placement and assembly processes, optimizing production efficiency. Common applications include digital cameras, mobile phones, televisions, and gaming machines among other consumer and industrial devices.
Murata maintains strict RoHS compliance and high-quality manufacturing standards, with the product made in Japan. Features a 4532 package size for efficient surface mounting. Constructed with a ferrite core and wirewound construction for high inductance values.
Shielded design reduces electromagnetic interference for enhanced performance. Operates reliably from -40°C to 85°C temperature range. Has a maximum DC resistance of 327 mΩ ensuring low power loss. Rated for a maximum self-resonant frequency of 15 MHz.
Embossed tape packaging optimizes manufacturing assembly processes. Suitable for applications in digital cameras, mobile phones, TVs, and gaming machines. Explore our full range of Surface Mount Inductors at EnvMart for advanced electronic components needed in demanding industrial and commercial applications.
