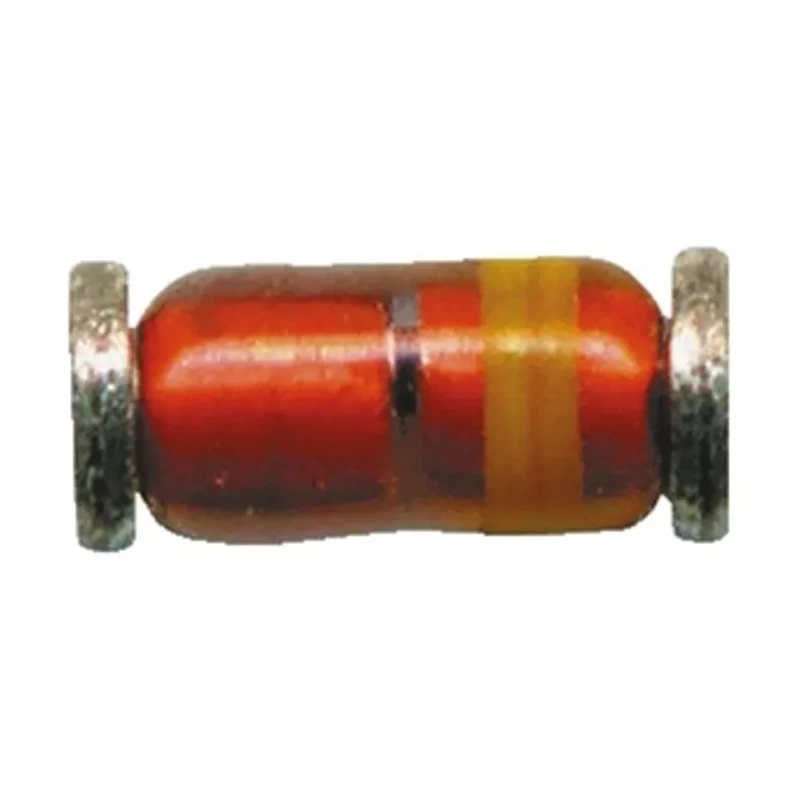

Vishay Silicon Junction Switching Diode 0.5 A 400 V DO-213AA EGL34G-E3/98

Vishay EGL34G-E3/98 is a high reliability silicon junction switching diode designed for surface mount applications. It supports a maximum forward current of 0.5 A and is rated for a peak reverse voltage of 400 V. Housed in a compact DO-213AA (equivalent to DO-204AL) molded epoxy package, this diode features a glass passivated junction that enhances durability and reliability in electronic circuits.

The device exhibits a very low leakage current, typically less than 0.2 μA, and offers fast switching performance with a peak reverse recovery time of 50 ns, making it suitable for power rectification and switching applications where efficiency and speed are critical.

Its wide operating temperature range from -65°C to 175°C ensures robust performance in harsh environmental conditions. The diode's maximum forward voltage of 1.35 V contributes to low conduction losses, optimizing energy consumption in electronic designs.

The diode has a peak non-repetitive forward surge current rating of 10 A, allowing it to withstand transient surges and high inrush currents commonly encountered in power supplies and switching circuits.

Mechanical construction includes a molded epoxy over glass body meeting UL 94 V-0 flammability standard, with matte tin plated leads compliant with J-STD-002 solderability tests, ensuring ease of assembly and reliability.

The clear color band marking the cathode end simplifies correct circuit installation. Typical applications include high voltage rectification in G2 grid CRTs, TV sets, and snubber circuits in camera flashes. The compact form factor and reliable electrical characteristics make this diode ideal for industrial, commercial, and consumer electronic applications.

Single silicon junction diode configuration for high reliability. Surface mount package DO-213AA suitable for compact devices. Maximum forward voltage of 1.35 V ensuring low conduction losses. Peak non-repetitive forward surge current of 10 A for transient robustness.

Operating temperature range from -65°C to 175°C for wide environmental suitability. Fast switching diode with peak reverse recovery time of 50 ns for efficient operation. Low leakage current typical less than 0.2 μA for reduced power wastage.

Glass passivated junction and molded epoxy package with UL 94 V-0 flammability rating. Matte tin plated leads solderable per industry standards for reliable connections. Color band denotes cathode end for clear polarity identification.
