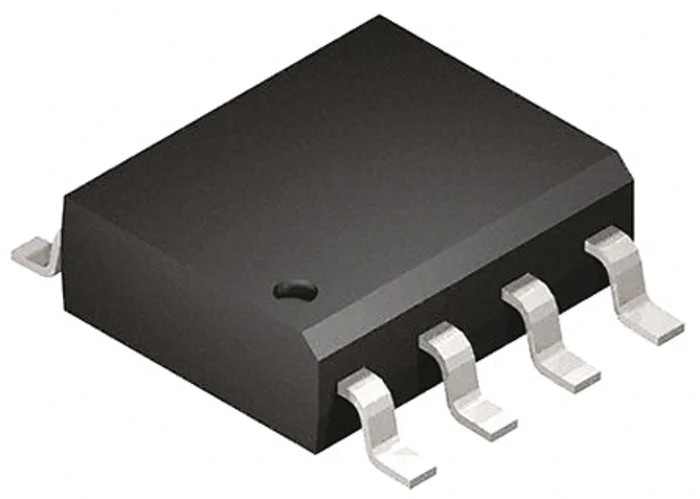

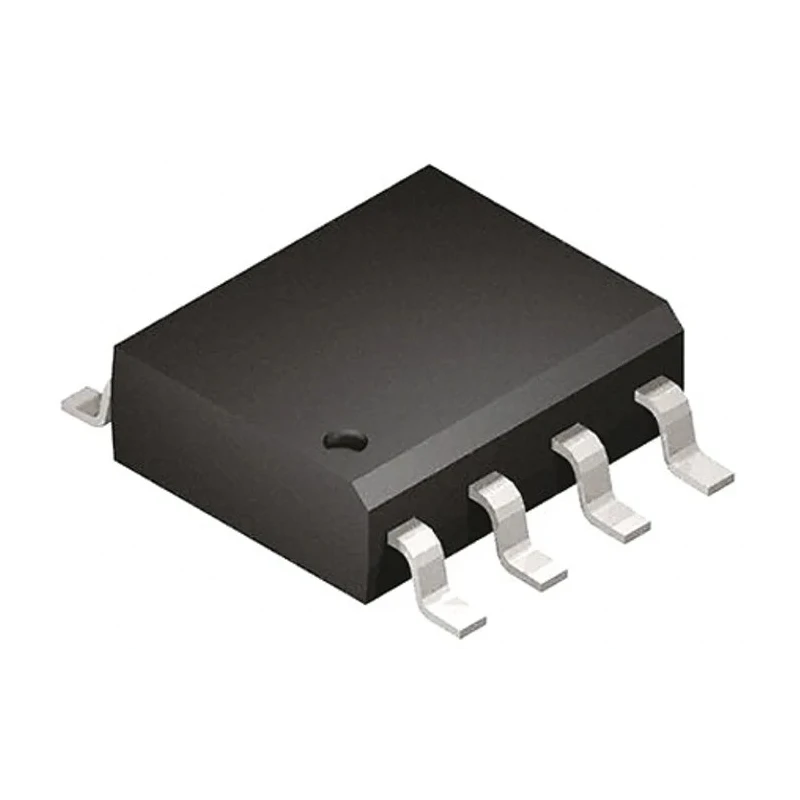

onsemi Repeater IC 1 HSTL LVPECL LVDS 8-Pin US 1600Mbps FIN1101K8X
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 0.7mm |
| Length | 2.3mm |
| Model | FIN1101K8X |
| Mount Type | Surface |
| Output type | LVDS |
| Series | FIN1101 |
| Input Type | HSTL, LVPECL |
| Maximum Operating Temperature | 85°C |
| Package Type | US |
| Sub Type | Repeater |
| Minimum Operating Temperature | -40°C |
| Pin Count | 8 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Transmission Data Rate | 1600Mbps |
| Differential Input High Threshold Voltage | 100mV |
| Differential Input Low Threshold Voltage | -100mV |
Key Features
- Operates at a transmission data rate of 1600Mbps for high-speed data communications.
- Minimum supply voltage of 3V and maximum supply voltage of 3.6V ensuring stable operation.
- Differential input high threshold voltage is 100mV and low threshold voltage is -100mV.
- Operates reliably in temperatures ranging from -40°C to 85°C with built-in ESD protection.
- Compact form factor with a height of 0.7mm and length of 2.3mm.
- Package designed for surface mount technology with a total of 8 pins.
- Suitable for LVDS communication applications including Firewire, SATA, and SCSI interfaces.
- Compliant with no automotive standard and no specific certifications reported.
Product Description
onsemi FIN1101K8X is a high-speed Repeater IC designed for LVDS communication featuring HSTL and LVPECL input types and LVDS output. This 8-pin US package surface-mount device delivers stable and efficient signal repeater functionality with a transmission data rate of 1600Mbps, making it ideal for interfaces such as Firewire, SATA, and SCSI.
The device operates within a minimum supply voltage of 3V and a maximum of 3.6V, accommodating various power configurations. Its differential input thresholds at 100mV (high) and -100mV (low) support noise immunity and signal integrity. It functions across a wide temperature range from -40°C to 85°C with inherent electrostatic discharge (ESD) protection, ensuring reliability in diverse industrial environments.
Compact in design, the component measures just 0.7mm in height and 2.3mm in length, making it suitable for modern compact PCB assembly requiring surface mounting. The 8-pin layout supports a straightforward installation and integration into electronic systems.
The FIN1101K8X is not certified to any automotive standards but excels in applications requiring high-speed interface communication in industrial, computing, and telecommunications sectors.
Operates at a transmission data rate of 1600Mbps for high-speed data communications. Minimum supply voltage of 3V and maximum supply voltage of 3.6V ensuring stable operation. Differential input high threshold voltage is 100mV and low threshold voltage is -100mV.
Operates reliably in temperatures ranging from -40°C to 85°C with built-in ESD protection. Compact form factor with a height of 0.7mm and length of 2.3mm. Package designed for surface mount technology with a total of 8 pins.
Suitable for LVDS communication applications including Firewire, SATA, and SCSI interfaces. Compliant with no automotive standard and no specific certifications reported. Model part number FIN1101K8X allows precise identification and compatibility assurance.
Explore the extensive range of semiconductors and Interface ICs at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FIN1101K8X operates at a transmission data rate of 1600Mbps, suitable for high-speed data communications.
This model supports HSTL and LVPECL input types, providing flexibility for various applications.
It operates with a minimum supply voltage of 3V and a maximum supply voltage of 3.6V, ensuring stable performance.
The device operates reliably in temperatures ranging from -40°C to 85°C, making it suitable for diverse industrial environments.
The FIN1101K8X has a compact form factor with a height of 0.7mm and a length of 2.3mm, designed for modern PCB assembly.
This model features a total of 8 pins, designed for easy installation and integration into electronic systems.
The output type of the FIN1101K8X is LVDS, suitable for various high-speed communication applications.
This model is not certified to any automotive standards and does not have specific certifications reported.
The differential input high threshold voltage for this model is 100mV, which supports noise immunity and signal integrity.
It is suitable for LVDS communication applications including Firewire, SATA, and SCSI interfaces.
The FIN1101K8X contains 1 element per chip, providing a straightforward solution for signal repetition.
This model includes built-in electrostatic discharge (ESD) protection, enhancing its reliability in various environments.
