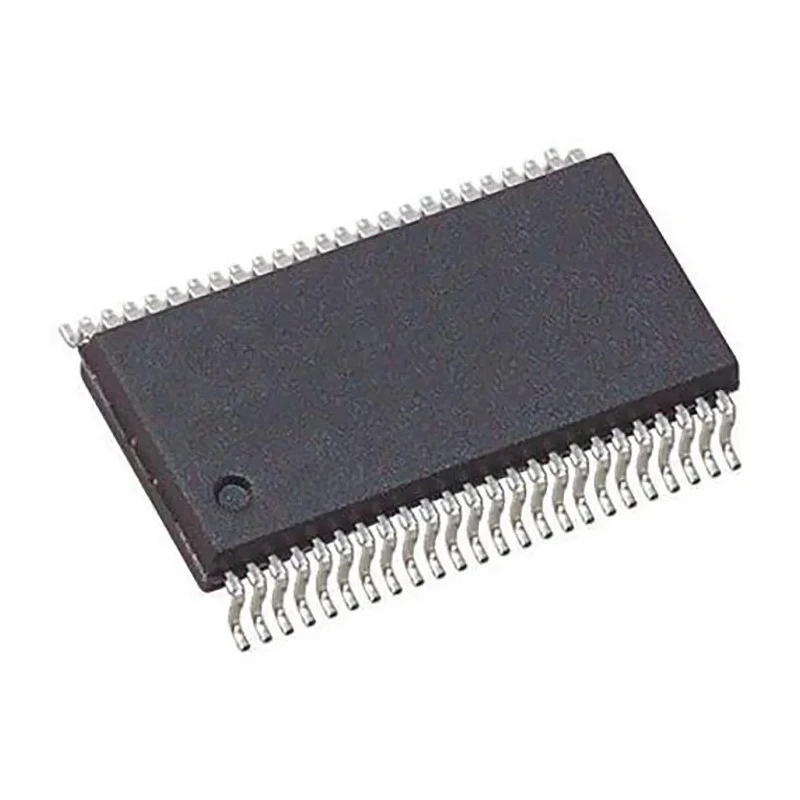

onsemi Repeater IC 8 Drivers 8 Receivers HSTL LVPECL LVDS 48-Pin TSSOP FIN1108MTDX
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 0.9mm |
| Length | 12.5mm |
| Model | FIN1108MTDX |
| Mount Type | Surface |
| Output type | LVDS |
| Series | FIN1108 |
| Input Type | HSTL, LVPECL |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Sub Type | Repeater |
| Minimum Operating Temperature | -40°C |
| Pin Count | 48 |
| Number of Elements per Chip | 8 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 8 |
| Number of Receivers | 8 |
| Transmission Data Rate | 800Mbps |
| Differential Input High Threshold Voltage | 100mV |
| Differential Input Low Threshold Voltage | -100mV |
Key Features
- Supports a transmission data rate of 800 Mbps for high-speed communications.
- Operates over a temperature range from -40°C to 85°C for industrial reliability.
- Minimum supply voltage of 3 V and maximum supply voltage of 3.6 V ensure compatibility with standard power sources.
- Equipped with ESD protection to withstand electrostatic discharge events.
- Compact 0.9 mm height and 12.5 mm length package suitable for surface mount PCB assembly.
- Designed for use in high-speed data interfaces such as Firewire, SATA, and SCSI applications.
- Low voltage differential signaling (LVDS) technology enables fast and noise-resistant transmission over twisted-pair cables.
- Surface mount TSSOP package provides manufacturing efficiency and space saving on PCBs.
Product Description
onsemi FIN1108MTDX is a specialized repeater integrated circuit designed for high-speed data communications. Featuring 8 drivers and 8 receivers, this device supports input types including HSTL and LVPECL, with LVDS outputs to ensure reliable signal transmission over cost-effective twisted-pair copper cables.
The device's 48-pin TSSOP surface mount package, measuring 12.5 mm in length and 0.9 mm in height, makes it ideal for compact PCB layouts in industrial, commercial, and electronics manufacturing environments. Operating from a minimum supply voltage of 3 V up to 3.6 V, it suits a variety of power supply conditions.
Engineered to perform under demanding conditions, the FIN1108MTDX functions across a temperature range of -40°C to 85°C, with built-in ESD protection to enhance durability and reliability in harsh industrial settings. It is well suited to applications such as Firewire, SATA, and SCSI interfaces requiring high-speed, differential data transmission.
LVDS technology utilized in this repeater IC allows for high data rates up to 800 Mbps while maintaining low power consumption and excellent noise immunity. This makes it a solid choice for semiconductor and interface IC applications in electronic component manufacturing, laboratory instrumentation, and telecommunications equipment.
Supports a transmission data rate of 800 Mbps for high-speed communications. Operates over a temperature range from -40°C to 85°C for industrial reliability. Minimum supply voltage of 3 V and maximum supply voltage of 3.6 V ensure compatibility with standard power sources.
Equipped with ESD protection to withstand electrostatic discharge events. Compact 0.9 mm height and 12.5 mm length package suitable for surface mount PCB assembly. Designed for use in high-speed data interfaces such as Firewire, SATA, and SCSI applications.
Low voltage differential signaling (LVDS) technology enables fast and noise-resistant transmission over twisted-pair cables. Surface mount TSSOP package provides manufacturing efficiency and space saving on PCBs.
This onsemi FIN1108MTDX repeater IC belongs to an essential product category of semiconductor Interface ICs widely used in the electronics and electrical industry. EnvMart provides a comprehensive selection of semiconductor devices including this advanced repeater IC designed to meet rigorous industrial and laboratory standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum transmission data rate of this model is 800 Mbps, suitable for high-speed communications.
It operates over a temperature range from -40°C to 85°C, ensuring reliability in industrial environments.
The minimum supply voltage is 3 V and the maximum supply voltage is 3.6 V, making it compatible with standard power sources.
This unit comes in a 48-pin TSSOP package, which is suitable for surface mount PCB assembly.
It features 8 drivers and 8 receivers, designed for efficient data transmission.
It supports input types including HSTL and LVPECL, facilitating versatile applications.
The output type of this repeater IC is LVDS, which allows for fast and noise-resistant transmission.
This model is designed for high-speed data interfaces such as Firewire, SATA, and SCSI applications.
The height is 0.9 mm and the length is 12.5 mm, making it compact for PCB layouts.
Yes, it is equipped with ESD protection to withstand electrostatic discharge events, enhancing its reliability.
The differential input high threshold voltage is 100 mV, which is important for signal integrity.
The country of origin for this model is India.
