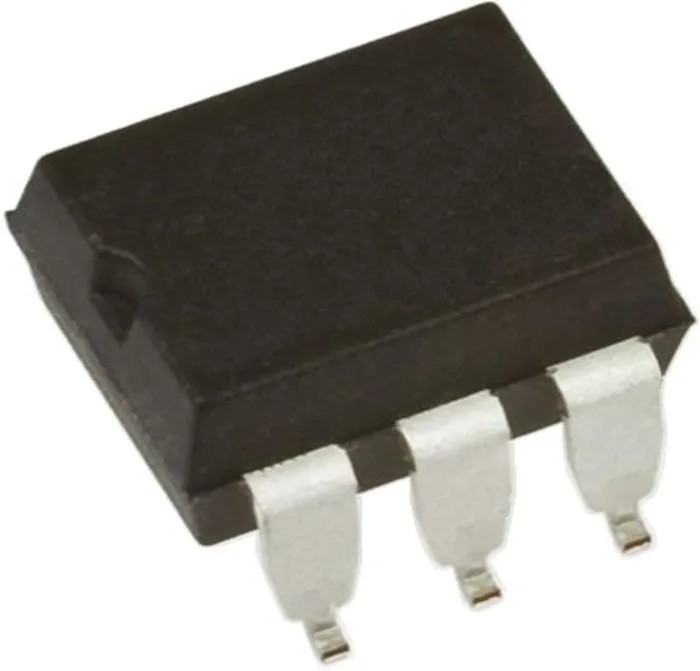

onsemi AC Input Optocoupler, Surface Mount, 6-Pin DIP, 1 Channel, 60mA, 1.5V Forward Voltage MOC3022SR2M
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | MOC3022SR2M |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | MOC |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL, VDE 0884 |
| Maximum Forward Voltage | 1.5V |
| Number of Pins | 6 |
| Input Current Type | AC |
Key Features
- Features one channel suitable for AC input current applications.
- Surface mount type with a 6-pin dual inline package for easy PCB integration.
- Maximum forward voltage of 1.5 volts ensuring efficient operation.
- Capable of handling a maximum input current of 60 milliamps AC.
- Offers isolation voltage up to 5300 Vrms for excellent electrical isolation.
- Operating temperature range from -40°C up to 85°C supports harsh environments.
- Includes logic output for reliable control circuit interfacing.
- Certified to UL and VDE 0884 standards for safety and quality compliance.
Product Description
onsemi MOC3022SR2M is an AC input optocoupler designed for industrial electronic applications requiring efficient isolation and control. This optocoupler features a single channel with a surface mount 6-pin DIP package, making it suitable for integration in power and control circuits.
Operating on a maximum forward voltage of 1.5 V and supporting up to 60 mA input current, this device ensures effective signal transmission while maintaining electrical isolation. Its robust isolation voltage rating of 5300 Vrms combined with UL and VDE 0884 certifications guarantees safety and reliability in demanding environments.
With an operating temperature range of -40°C to 85°C, it performs reliably in various industrial, automation, and electronic equipment use cases. This optocoupler includes a logic output feature facilitating seamless interaction with digital control systems.
One channel design for AC input with a 6-pin DIP surface mount package. Maximum forward voltage capped at 1.5 V for efficient conduction. Maximum input current of 60 mA enables handling moderate signal loads. High isolation voltage of 5300 Vrms secures circuits against electrical noise and interference.
Wide operating temperature range ensures stable performance in industrial environments. UL and VDE 0884 approvals validate product quality and compliance. Tape and reel packaging optimized for manufacturing automation. Non-automotive grade component suitable for general-purpose electronic applications.
This onsemi Optocoupler is ideally suited for use in industrial electronics, power control, HVAC systems, manufacturing automation, and laboratory equipment where reliable electrical isolation and AC input handling are essential.
Explore more optoelectronic components and semiconductors in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is 60 mA AC.
It offers an isolation voltage of up to 5300 Vrms, providing excellent electrical isolation.
The operating temperature range is from -40°C to 85°C, suitable for harsh environments.
This model comes in a 6-pin dual inline package (DIP) format for easy PCB integration.
The maximum forward voltage is 1.5 volts, ensuring efficient operation.
It is certified to UL and VDE 0884 standards for safety and quality compliance.
It is packaged in tape and reel format, optimized for manufacturing automation.
This optocoupler features a single channel design.
It supports AC input current applications.
This model is a surface mount type, allowing for easy integration into circuits.
This optocoupler is part of the MOC series.
The country of origin for this model is India.
