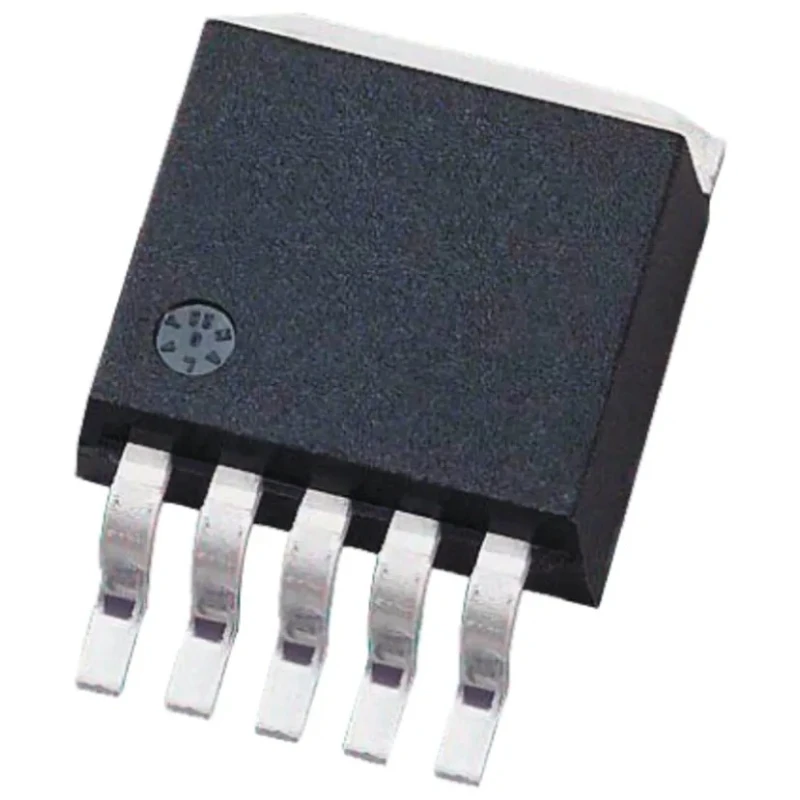

onsemi Low Dropout (LDO) Linear Voltage Regulator 9V 5-Pin NCP5663DSADJR4G
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators onsemi, Voltage Regulator 9V 5-Pin RS Stock No |
| Brand | onsemi |
| Height | 4.572mm |
| Length | 10.24mm |
| Model | NCP5663DSADJR4G |
| Width | 9.347mm |
| Mount Type | Surface |
| Series | NCP5663 |
| Maximum Operating Temperature | 150°C |
| Polarity | Positive |
| Maximum Input Voltage | 9V |
| Quiescent Current | 3mA |
| Minimum Input Voltage | 2V |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
Key Features
- Low dropout linear regulator designed for efficient voltage regulation.
- Operates with input voltages from 2V to 9V for versatile applications.
- Quiescent current is low at 3mA minimizing power consumption.
- Compact surface mount design with 5 pins for easy PCB integration.
- Maximum operating temperature of 150°C suitable for automotive environments.
- Positive polarity ensures compatibility with standard circuit designs.
- Automotive standard AEC-Q100 certified for quality and reliability.
- Series NCP5663 known for good transient response and low noise.
Product Description
onsemi NCP5663DSADJR4G is a high-performance Low Dropout (LDO) linear voltage regulator designed to provide stable and efficient voltage regulation with a maximum input voltage of 9V. This 5-pin surface mount device is engineered for applications demanding low quiescent current and excellent thermal performance with a maximum operating temperature rating of 150°C.
The device supports input voltages from 2V to 9V, making it versatile for a wide array of industrial, automotive, and consumer electronic circuits. Its positive polarity and compliance with the automotive standard AEC-Q100 endorse its reliability for automotive electronics.
The compact package with dimensions of 10.24 mm length, 9.347 mm width, and 4.572 mm height facilitates space-saving PCB designs. With a quiescent current of only 3mA, the regulator ensures low power consumption suitable for battery-powered applications.
The NCP5663 series is recognized for fast transient response, wide input voltage range, low noise, and high power supply rejection ratio (PSRR). It is especially beneficial in power management circuits requiring stable regulated outputs and minimal output voltage variation under load changes.
Low quiescent current reduces power loss during idle conditions. Wide input voltage range enhances flexibility in system designs. Surface mount package promotes streamlined assembly and compact layouts. Automotive grade certification ensures reliability under harsh conditions.
Dimension details assist in precise mechanical design integration. Robust thermal characteristics support extended operational life. Positive polarity simplifies circuit compatibility. Ideal for power management in industrial, automotive, and electronic devices.
This onsemi Voltage Regulator is a key component in power management ICs, suitable for use in semiconductor applications within the Electronics & Electricals sector. For additional technical details, datasheets and design tools are available from official channels.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with input voltages from 2V to 9V, providing versatility for various applications.
The quiescent current is low at 3mA, which helps minimize power consumption during operation.
It has a maximum operating temperature rating of 150°C, making it suitable for automotive environments.
The dimensions of the NCP5663DSADJR4G are 10.24 mm in length, 9.347 mm in width, and 4.572 mm in height.
This model features a 5-pin configuration, facilitating easy integration into PCB designs.
Yes, it is certified under the automotive standard AEC-Q100, ensuring quality and reliability for automotive applications.
The NCP5663DSADJR4G has a positive polarity, ensuring compatibility with standard circuit designs.
The low quiescent current of 3mA reduces power loss during idle conditions, making it suitable for battery-powered applications.
This voltage regulator is part of the NCP5663 series, known for its good transient response and low noise.
It is engineered for excellent thermal performance, supporting extended operational life under high-temperature conditions.
This model is suitable for power management in industrial, automotive, and consumer electronic circuits.
The NCP5663DSADJR4G utilizes a surface mount design, promoting streamlined assembly and compact layouts.
