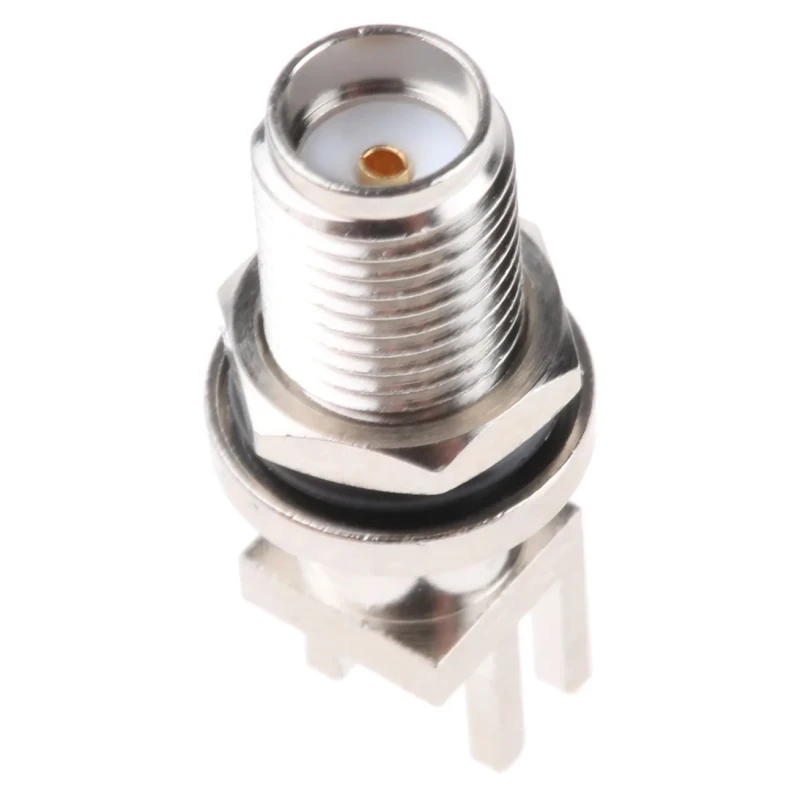

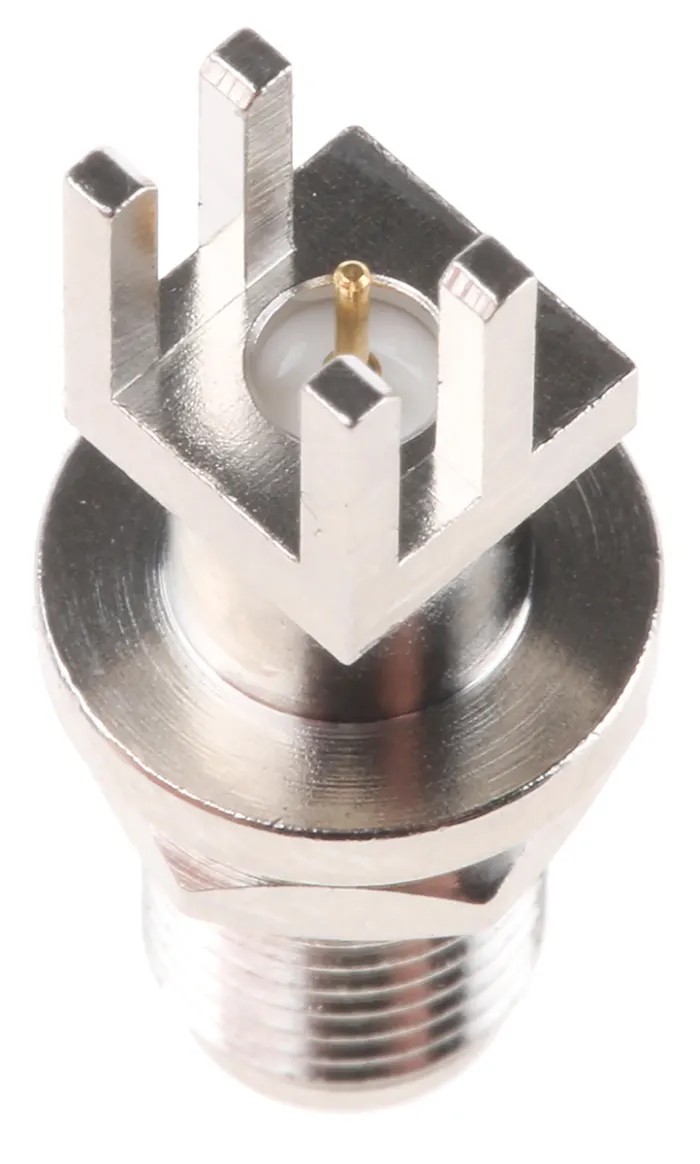

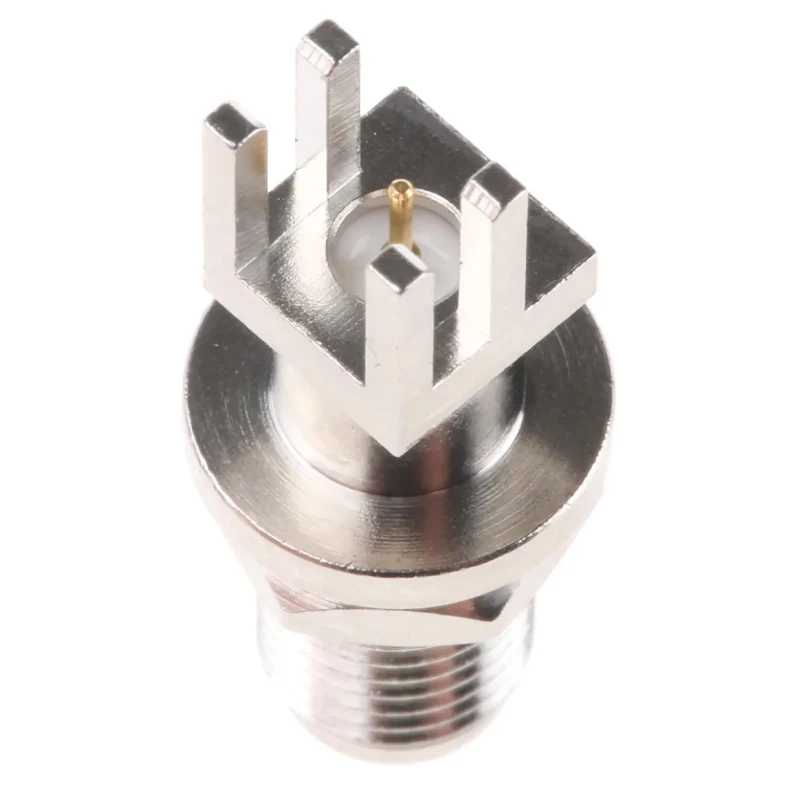

RS PRO SMA Series 50 Ω Panel Mount Coaxial Connector Female, Right Angle Body, Solder Termination 793-3635
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Right Angle |
| Model | 793-3635 |
| Mount Type | Panel Mount |
| Operating Frequency | 6GHz |
| Contact Material | Gold |
| Series | SMA |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Beryllium Copper Alloy |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMA |
| Body Plating | Nickel |
Key Features
- Right angle body orientation for space-efficient installation.
- Gold-plated beryllium copper contact material ensures excellent conductivity and corrosion resistance.
- Nickel-plated body for durability and wear resistance.
- Waterproof sealing with IP68 rating supports submersion and harsh environments.
- Operates from 0 to 6 GHz frequency, suitable for WiFi and radio applications.
- Panel mount type with bulkhead design ensures secure fitting through mounting panel.
- Solder termination provides stable and secure electrical connection.
- Designed for female SMA coaxial cables with 50 Ω impedance.
Product Description
RS PRO 793-3635 SMA Series 50 Ω Panel Mount Coaxial Connector Female with Right Angle Body and Solder Termination is engineered for demanding electronic component applications requiring dependable signal transmission. Manufactured with a gold-plated copper contact and beryllium copper alloy plating, it ensures long-lasting conductivity and wear resistance.
This panel mount connector features a right angle body orientation, providing easy integration in confined or awkward spaces, commonly found in WiFi and radio equipment setups. The nickel plating on the body enhances durability and shields against corrosion.
It offers a wide operating temperature range from -65°C to 165°C, making it suitable for industrial and commercial electronics in diverse environments. The IP68 rated waterproof sealing between insulators and conductors protects internal parts from moisture and debris, ensuring reliable performance even when submerged for short durations. The additional panel sealing secures the fitting firmly in place.
Capable of operating efficiently from DC up to 6 GHz frequency, this connector supports high-frequency signal transmission required for RF applications. The solder termination type guarantees a secure electrical connection with cables. With a bulkhead panel mount design and female connector gender, it is compatible with standard SMA coaxial cables rated at 50 Ω impedance and a voltage rating of 500 V.
Right angle body orientation for flexible mounting. Gold-plated beryllium copper contacts for high conductivity. Nickel body plating resists corrosion and wear. Waterproof sealing rated at IP68 for moisture protection. Wide operating temperature range of -65°C to 165°C.
Supports frequencies up to 6 GHz for RF applications. Solder termination ensures stable connectivity. Bulkhead panel mount type for secure installation. Voltage rated at 500 V for safe operation. Manufactured in Taiwan, Province Of China.
This Coaxial Connector is ideal for industrial, telecommunications, laboratory, electronic manufacturing, and commercial RF and WiFi systems requiring robust and reliable connections. For more products in the RS PRO range, explore our Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates efficiently at frequencies up to 6 GHz, making it suitable for RF applications.
It features a solder termination type, ensuring a stable and secure electrical connection with cables.
The connector is rated for 50 Ω impedance, which is standard for SMA coaxial cables.
It operates within a wide temperature range from -65°C to 165°C, suitable for various industrial and commercial applications.
This connector has a right angle body orientation, allowing for space-efficient installation in confined areas.
The contacts are gold-plated with a beryllium copper alloy, ensuring excellent conductivity and corrosion resistance.
Yes, it has an IP68 rating, providing waterproof sealing that protects against moisture and debris, even when submerged for short durations.
It supports panel mount installation with a bulkhead design, ensuring a secure fitting through the mounting panel.
The voltage rating for this model is 500 V, ensuring safe operation in various applications.
This coaxial connector is manufactured in Taiwan, Province Of China.
It is ideal for industrial, telecommunications, laboratory, electronic manufacturing, and commercial RF and WiFi systems requiring reliable connections.
The body is nickel-plated, which enhances durability and provides resistance against corrosion and wear.
