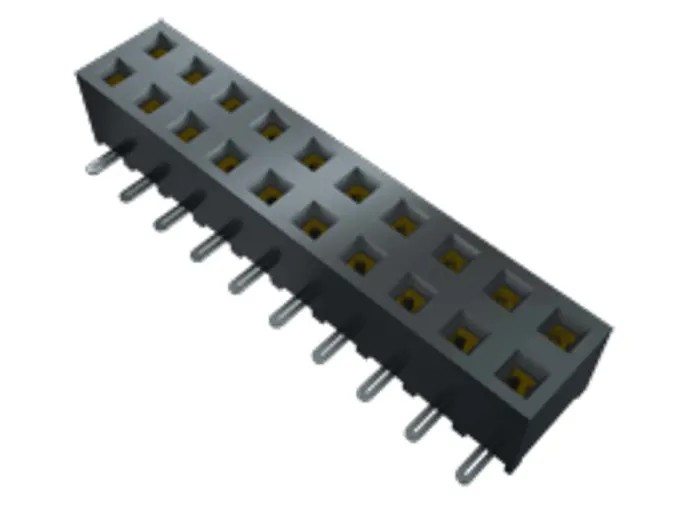

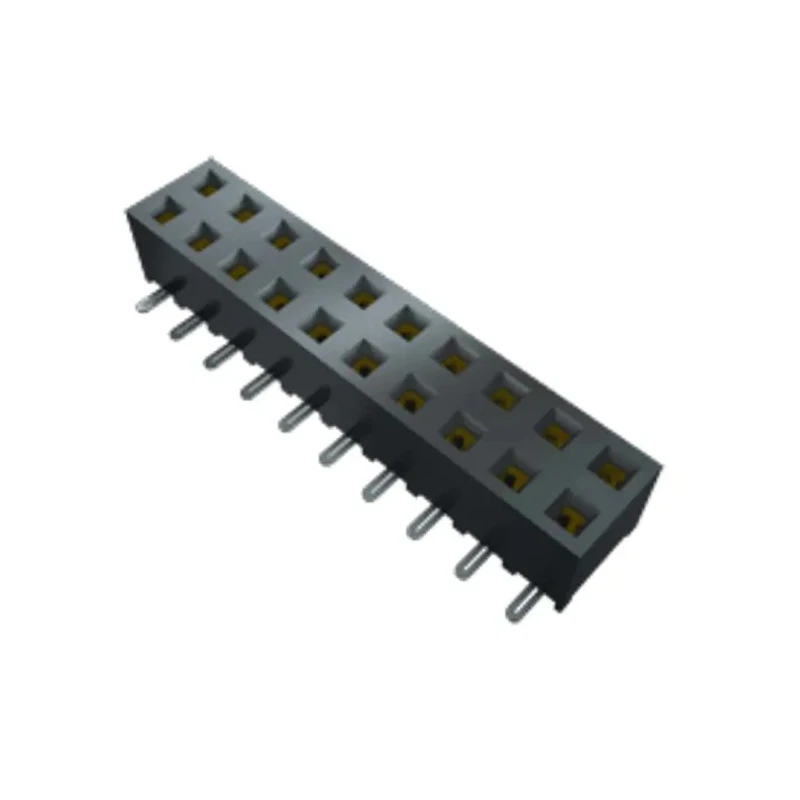

Samtec SMM Series Straight Surface PCB Socket 10-Contact 2 Row 2 mm Pitch Surface Mount SMM-105-02-S-D-TR

Samtec SMM-105-02-S-D-TR is a high-reliability PCB socket from the SMM Series featuring a straight surface mount design. It is engineered for 10 female contacts arranged in 2 rows with a 2 mm pitch, suitable for precise board-to-board connections in electronic assemblies.

The socket's housing is made from black liquid crystal polymer, chosen for its stability and durability in various industrial and electronic applications. Contacts are manufactured from beryllium copper alloy and plated with gold, providing excellent electrical conductivity and corrosion resistance.

Rated to handle currents up to 3.2 amperes per pin and voltages up to 350 volts, this connector is suitable for demanding power and signal applications. It operates reliably across an extended temperature range from -55 to 125 degrees Celsius, enabling its use in harsh environments.

With surface mount termination and a straight orientation, the socket is optimized for automated PCB assembly processes, ensuring secure mechanical and electrical connections. The 1.27 mm row pitch and 2 mm contact pitch enable compact PCB layouts without compromising performance.

This product is RoHS compliant, aligning with environmental regulations for electronic components. It belongs to the SMM series by Samtec, ensuring compatibility with other system components in the same family.

Features 10 female contacts arranged in 2 rows for robust connection. Surface mount termination type ensures secure mechanical and electrical interface. Housing constructed from black liquid crystal polymer for high durability.

Contact material is beryllium copper alloy plated with gold for excellent conductivity and corrosion resistance. Designed for operating temperatures from -55°C to 125°C for diverse environments. Rated for 3.2A current per pin with a 350V voltage rating supporting demanding applications.

Row pitch is 1.27 mm with a contact pitch of 2 mm, supporting compact PCB designs. Connector orientation is straight and intended for board-to-board connector system. RoHS compliant to ensure environmentally safe manufacturing standards.

Series: SMM, ensuring compatibility with related Samtec products.

This PCB socket is ideal for industrial, electronic manufacturing, and laboratory applications requiring durable and precise board-to-board connections. Explore the full Samtec SMM series on EnvMart for comprehensive PCB socket solutions.
