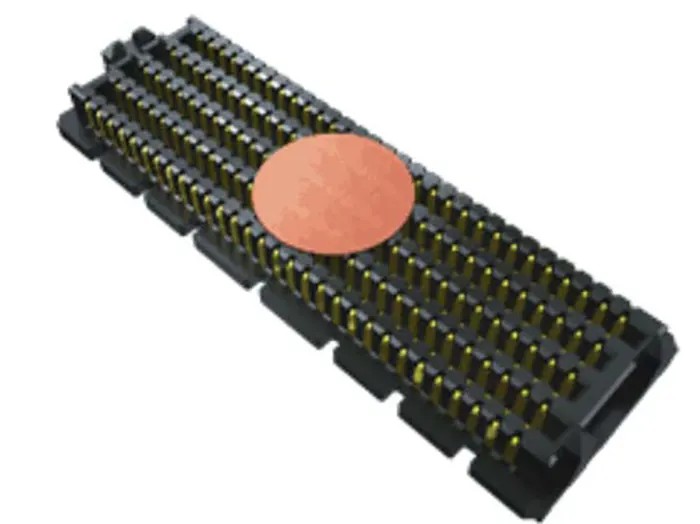

Samtec SEAM Series Straight Surface PCB Header, 400 Contacts, 1.27 mm Pitch, 10 Row, Shrouded SEAM-40-11.0-S-10-1-A-K-TR

Samtec SEAM-40-11.0-S-10-1-A-K-TR is a high-density, straight surface PCB Header designed for robust board-to-board interconnections. It features 400 male contacts arranged in 10 rows with a pitch of 1.27 mm, enabling compact and efficient PCB layouts. The housing material is made of black Liquid Crystal Polymer, known for excellent heat resistance and durability in demanding electronic applications.

The contacts are made from copper alloy and plated with silver and tin to ensure reliable conductivity and resistance to corrosion. The header employs a shrouded design that protects the contacts and helps guide mating connectors precisely, reducing the chance of misalignment during assembly. Its solder termination type facilitates easy surface mount installation on printed circuit boards.

Electrical specifications include a current carrying capacity of 2.7 A and a voltage rating of 240 V AC, suitable for a wide range of electronic devices and systems. This header is rated to operate efficiently in extreme conditions ranging from -55°C to 125°C, making it ideal for industrial, telecommunications, computing, and embedded system applications.

The SEAM series headers from Samtec are compliant with RoHS directives, supporting environmentally responsible manufacturing processes. The connector system is tailored for board-to-board connections, providing reliable signal and power transmission in high performance electronic assemblies.

Comprises 400 male contacts arranged in 10 rows for reliable electrical connection. Pitch between contacts is 1.27 mm supporting compact PCB designs. Constructed with Liquid Crystal Polymer housing for high temperature resistance.

Contact material is copper alloy plated with silver and tin for corrosion resistance. Designed for surface mount installation with solder termination type. Shrouded configuration provides protection and guides mating connectors accurately.

Electrical rating supports up to 2.7 A current and 240 V voltage. Operating temperature range from -55°C up to 125°C for diverse environments. Board-to-board connector system suitable for high-speed signal transmission.

Applications include industrial electronics, telecommunications equipment, computing systems, and embedded device manufacturing. Samtec SEAM headers provide a high-reliability solution for demanding PCB interconnections requiring density and performance.
