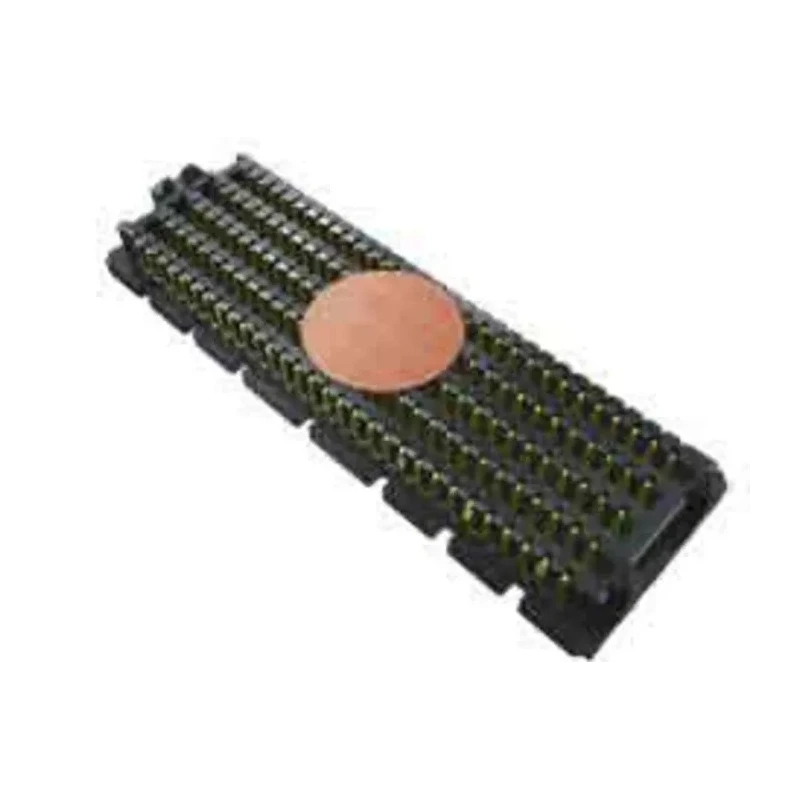

Samtec SEAM Series Straight Surface PCB Header, 400 Contacts, 1.27 mm Pitch, 8 Row, Shrouded SEAM-50-02.0-L-08-2-A-K-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec SEAM Series Straight Surface PCB Header, 400 Contacts, 1.27 mm Pitch, 8 Row, Shrouded SEAM-50-02.0-L-08-2-A-K-TR

Name: Samtec SEAM Series Straight Surface PCB Header, 400 Contacts, 1.27 mm Pitch, 8 Row, Shrouded SEAM-50-02.0-L-08-2-A-K-TR
Brand: Samtec
SKU: 154643
Price: 42.85 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	240V
Brand	Samtec
Orientation	Straight
Current	2.7A
Model	SEAM-50-02.0-L-08-2-A-K-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	SEAM
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	8
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	400
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Operates at a maximum current rating of 2.7A for robust electrical performance.
Constructed with a Liquid Crystal Polymer housing for superior durability and thermal stability.
Features gold-plated copper alloy contacts ensuring excellent conductivity and corrosion resistance.
Designed as a straight, board-to-board connector system suited for surface mount applications.
Supports operating temperatures from -55°C up to 125°C for versatile environmental tolerance.
Includes solder termination type for secure and stable PCB integration.
Offers a row pitch of 1.27 mm and shrouded contact design to protect against damage.
Rated for 240V operating voltage meeting industrial application standards.

Product Description

Samtec SEAM-50-02.0-L-08-2-A-K-TR is a Straight Surface PCB Header designed with 400 contacts arranged in 8 rows at a 1.27 mm pitch. This connector series provides high-density interconnection suited to industrial and electronic assembly applications. Featuring a robust Liquid Crystal Polymer housing, it ensures durability and long service life under demanding environmental conditions.

The contact material is a copper alloy with gold plating, which combines superior electrical conductivity with effective corrosion resistance, improving connection reliability. With a Maximum Operating Temperature of 125°C and a minimum of -55°C, this header is suited for demanding temperature environments across manufacturing, telecommunications, and computing industries.

Its shrouded design and solder termination type enhance integration stability providing reliable board-to-board connections in surface mount assembly processes. Operating at 2.7A current and 240V voltage, this PCB header complies with use in advanced electronic control systems and embedded solutions.

Maximum current rating of 2.7A ensures effective power handling. Liquid Crystal Polymer housing offers high durability and temperature stability. Gold-plated copper alloy contacts provide excellent conductivity and corrosion resistance.

Straight orientation in an 8-row configuration at 1.27 mm row pitch supports high-density PCB layouts. Shrouded contacts increase mechanical protection and prevent accidental damage. Solder termination type allows secure mounting in surface mount technology applications.

Wide operating temperature range between -55°C and 125°C supports diverse environments. 240V rated for safe use in various industrial electronic circuits.

This PCB header is ideal for use in industrial electronics manufacturing, telecommunications equipment, computing hardware assembly, and other precision electronic connector applications where reliability and performance are critical. Samtec's SEAM series connectors deliver rugged and dependable electrical connections with high signal integrity.

Explore additional PCB Headers and connectors in EnvMart's Electronics & Electricals category to find compatible components for your electronic assemblies.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum current rating for this model is 2.7A, ensuring effective power handling for various applications.

This PCB header is rated for an operating voltage of 240V, suitable for industrial electronic circuits.

It features a Liquid Crystal Polymer housing for durability and copper alloy contacts with gold plating for excellent conductivity and corrosion resistance.

The contacts are arranged in 8 rows with a pitch of 1.27 mm, supporting high-density PCB layouts.

This model supports an operating temperature range from -55°C to 125°C, making it suitable for diverse environmental conditions.

It uses a solder termination type, allowing for secure mounting in surface mount technology applications.

This PCB header has a total of 400 contacts, providing high-density interconnection capabilities.

Yes, this model is specifically designed as a straight, board-to-board connector system suited for surface mount applications.

The orientation of this connector is straight, facilitating easy integration into PCB layouts.

The contact gender of this model is male, which is standard for board-to-board connections.

The shrouded design increases mechanical protection and helps prevent accidental damage to the contacts during installation and use.

The country of origin for this PCB header is India, reflecting its manufacturing location.
