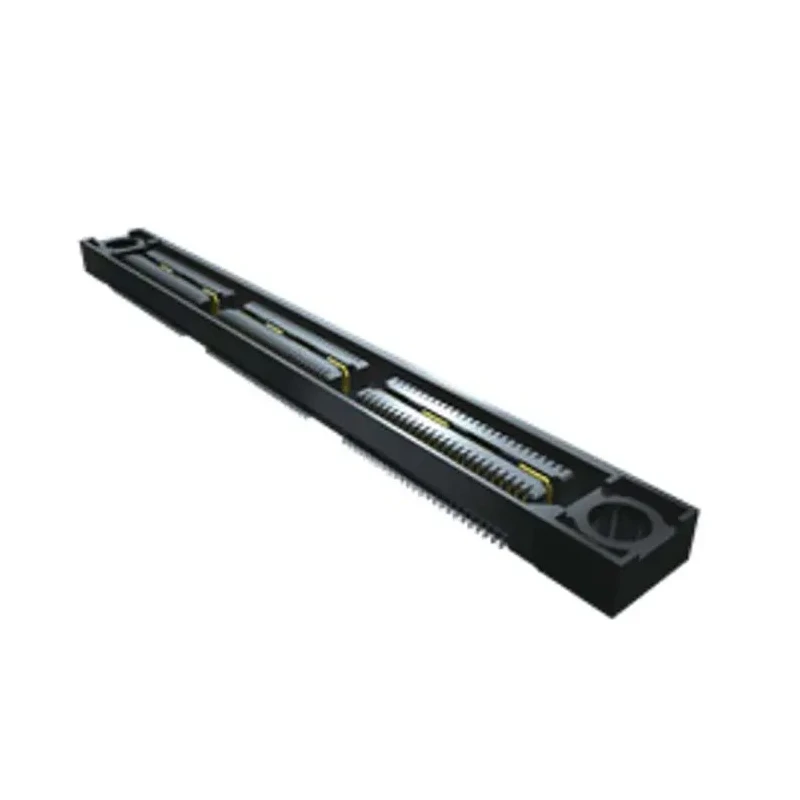

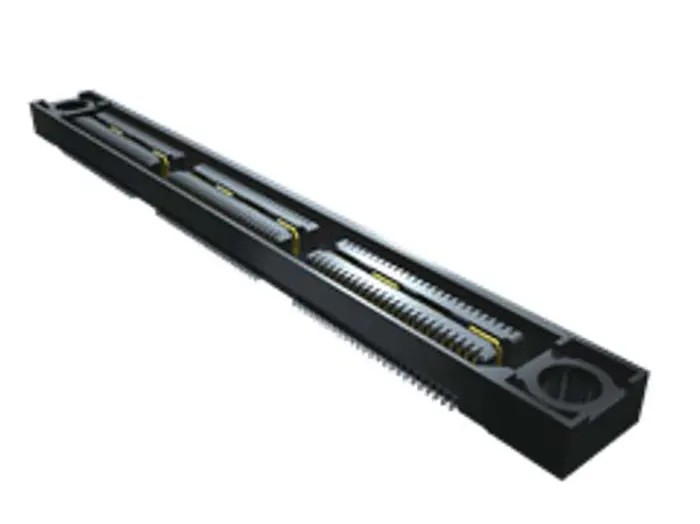

Samtec QSS Series Straight Surface PCB Socket, 150-Contact, 2 Row, 0.635 mm Pitch Crimp QSS-075-01-F-D-A

Free Delivery in India | Lowest Global Shipping Charges

Samtec QSS Series Straight Surface PCB Socket, 150-Contact, 2 Row, 0.635 mm Pitch Crimp QSS-075-01-F-D-A

Name: Samtec QSS Series Straight Surface PCB Socket, 150-Contact, 2 Row, 0.635 mm Pitch Crimp QSS-075-01-F-D-A
Brand: Samtec
SKU: 105939
Price: 9.12 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	285V
Brand	Samtec
Orientation	Straight
Current	1.8A
Model	QSS-075-01-F-D-A
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	QSS
Termination Type	Crimp
Maximum Operating Temperature	125°C
Sub Type	Plain Socket
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.635mm
Contact Plating	Gold
Number of Contacts	150
Connector System	Board-to-Board
Row Pitch	5.73mm

Key Features

Constructed with liquid crystal polymer housing for high durability and thermal resistance.
Phosphor bronze contacts plated with gold ensure excellent conductivity and corrosion resistance.
Rated for 1.8 A current and 285 V voltage operation for robust electrical performance.
Operating temperature range from -55°C to 125°C enables use in harsh environments.
Designed as board-to-board connector with straight orientation for surface mount installation.
Row pitch of 5.73 mm supports precise dual-row alignment and secure connection.
RoHS compliant for environmental safety and regulatory adherence.
High-speed ground plane socket strip ideal for advanced electronic applications requiring compact high-density connections.

Product Description

Samtec QSS-075-01-F-D-A is a high-performance Straight Surface PCB Socket offering 150 contacts arranged in 2 rows with a fine 0.635 mm pitch crimp termination system. This connector features a housing made from liquid crystal polymer, providing superior mechanical stability and thermal resistance suitable for demanding electronic manufacturing applications.

The contacts are made of phosphor bronze with gold plating, which ensures excellent electrical conductivity and longevity by resisting corrosion. It is rated for 1.8 amperes current capacity and 285 volts voltage rating, making it suitable for various power and signal transmission needs.

Operating reliably across a temperature range from -55°C to 125°C, this socket is engineered for high-speed board-to-board connections with a straight orientation and surface mount type. The 5.73 mm row pitch provides secure dual-row contact positioning, facilitating precise alignment during PCB assembly.

The Samtec QSS series is RoHS compliant, supporting environmental regulations and safe disposal practices. This product is widely used in industrial, telecommunications, automotive electronics, and other advanced technology sectors where high density and reliable electrical connections are critical.

Constructed with liquid crystal polymer housing for durability and thermal resistance. Phosphor bronze gold-plated contacts provide excellent conductivity. Rated for 1.8 A current and 285 V voltage operation. Operates between -55°C and 125°C for harsh environment suitability.

Designed as a straight orientation surface mount, board-to-board connector. Row pitch of 5.73 mm ensures precise dual-row alignment. RoHS compliant for environmental and regulatory adherence. Ideal for high-speed electronic applications requiring compact, dense contacts.

This socket is part of the Samtec QSS series, renowned for its quality and performance in electronic components. Explore more in the Electronics Components category on EnvMart for compatible connectors and related products.
