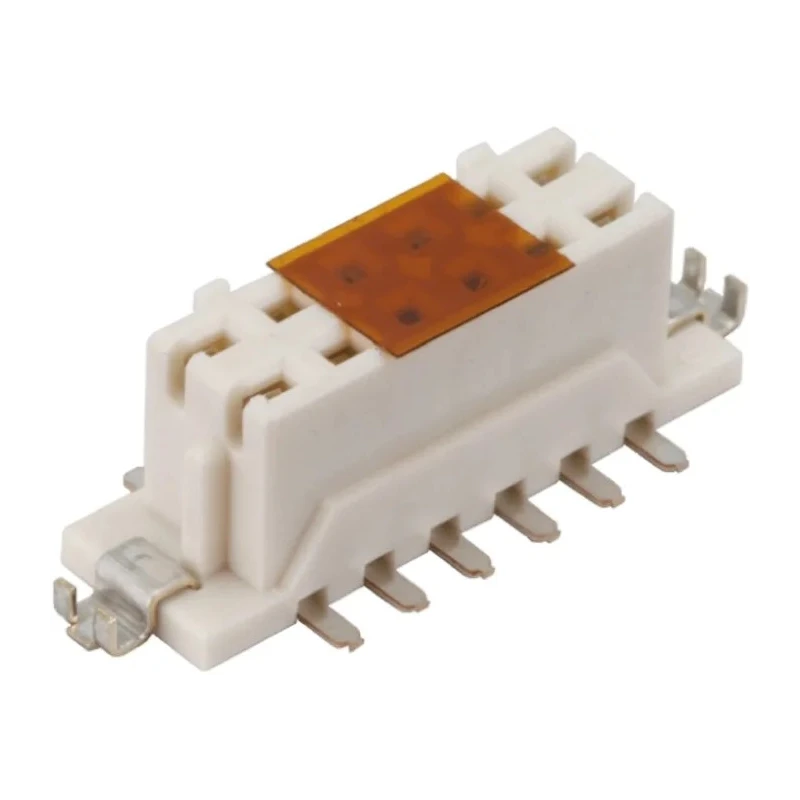

Hirose DF11 Series 16-Contact 2 Row 2 mm Pitch Straight Surface PCB Socket
Specifications
| Country of Origin | Indonesia |
|---|---|
| Voltage | 30V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 12A |
| Model | DF11 |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Copper |
| Series | DF11 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Wire-to-Board |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Tin, Gold |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector System | Board-to-Board, Cable-to-Board |
Key Features
- Compact double row design saves PCB space with 5 mm depth.
- Guide ribs prevent incorrect insertion and twisting during mating.
- Metal fittings on SMT versions secure PCB retention and prevent solder peeling.
- Compatible with DF11 series PCB headers for versatile board-to-board applications.
- Supports current up to 12A and voltage up to 30V for reliable performance.
- Constructed with polyamide housing and copper female contacts plated with tin and gold.
- Operating temperature ranges from -30°C to 85°C for varied environments.
- Suitable for digital cameras, LCD displays, car navigation, and measurement devices.
Product Description
Hirose DF11CZ-16DS-2V(22) is a high-quality 16-contact, 2 row, 2.00 mm pitch straight surface PCB socket from the DF11 series. Designed for compactness, it features a double row of contacts within a shallow 5 mm depth, optimizing space on printed circuit boards. The socket's polyamide housing incorporates guide ribs to prevent incorrect insertion and twisting, ensuring reliable mating with compatible connectors.
Metal fittings on surface-mount versions increase retention on the PCB and prevent solder peeling, enhancing durability in industrial and commercial applications. The connector supports a current rating of 12A and voltage up to 30V, suitable for various electronic devices.
This PCB socket mates with DF11 series headers for board-to-board and cable-to-board connector systems, widely used in portable devices that need multiple signal paths within a compact footprint. Common applications include digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and measurement instruments.
Female contacts are made of copper with tin and gold plating for reliable conductivity and corrosion resistance. The connector withstands operating temperatures from -30°C to 85°C, making it adaptable for different environmental conditions.
Compact double row design for efficient PCB space usage. Guide ribs prevent incorrect insertion and twisting. Metal fittings secure PCB retention and prevent solder peeling. Polyamide housing with tin and gold plated copper female contacts.
Supports 12A current and 30V voltage ratings. Operating temperature range from -30°C to 85°C. Board-to-board and cable-to-board applications. Ideal for portable devices, digital cameras, LCDs, and measurement devices. This product is manufactured in Indonesia and is new. Explore related PCB Sockets and connectors on EnvMart for comprehensive electronics interconnect solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a current rating of 12A and a voltage rating of up to 30V.
The Hirose DF11 model features a 2 mm pitch and has 16 contacts arranged in 2 rows.
The housing is made of polyamide, while the female contacts are constructed from copper and plated with tin and gold.
It operates within a temperature range of -30°C to 85°C, making it suitable for various environments.
The compact double row design allows for efficient use of PCB space, with a depth of only 5 mm.
This model utilizes surface mounting for installation on printed circuit boards.
It is designed to mate with DF11 series headers for board-to-board and cable-to-board applications.
The socket includes guide ribs that help prevent incorrect insertion and twisting during mating.
Common applications include digital cameras, LCD displays, car navigation systems, and measurement devices.
The termination type for this PCB socket is solder, which is used for securing connections.
This product is manufactured in Indonesia.
The contact gender for this model is female, allowing for connection with compatible male connectors.
