Nexperia Buffer & Line Driver, 3 State, Non-Inverting, 5-Pin TSSOP, Logic Family 74HCT, Operating Voltage 74HCT1G125GW,125

Nexperia 74HCT1G125GW,125 Buffer & Line Driver IC is a high-speed CMOS logic device designed for buffering and driving signals with a 3-state non-inverting output. It operates within a voltage range of 4.5 V to 5.5 V, making it suitable for TTL and CMOS signal interface applications.

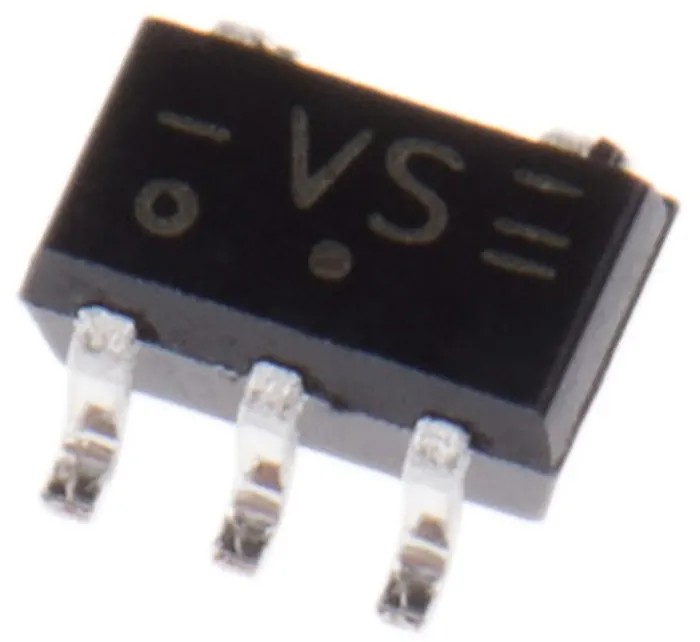

This device features a single channel buffer and line driver with a non-inverting output polarity, packaged in a compact 5-pin TSSOP surface-mount format. It provides a maximum propagation delay of 36 nanoseconds at the specified load capacitance, enabling fast response times in digital circuits.

With a supply current of approximately 20 microamperes, it is optimized for low power consumption applications. The buffer supports a maximum high-level output current of -6 mA and a maximum low-level output current of 6 mA, adequate for standard digital signal driving tasks.

Designed to operate reliably over a wide temperature range from -40°C to 125°C, this IC is ideal for industrial, automotive (non-automotive standard device but suitable for various commercial applications), and consumer electronics requiring stable line interface performance.

The device conforms to RoHS standards, ensuring it meets environmental and hazardous substance regulations. Its compact dimensions (2.2 mm length, 1.35 mm width, 1.1 mm height) make it an excellent choice for high-density PCB designs where space saving is crucial.

Manufactured in Malaysia, the product ensures quality and manufacturing excellence consistent with global semiconductor standards. The device belongs to the 74HCT logic family, compatible with TTL input and CMOS output levels.

Single channel buffer and line driver with non-inverting, 3-state output functionality. Operates at low supply current of 20μA and supports operating voltage range 4.5V to 5.5V. Compact 5-pin TSSOP surface mount packaging for space-efficient PCB layout.

Supports operating temperature range from -40°C to 125°C for harsh environments. Maximum propagation delay of 36ns ensures fast digital signal switching. Meets RoHS environmental compliance standards. Manufactured in Malaysia with rigorous quality standards.

This Nexperia buffer and line driver IC is suitable for electronic circuits in industrial automation, digital signal processing, telecommunications equipment, and electronic instrumentation where signal integrity and fast switching are essential. It provides efficient buffering and line driving capabilities in low-voltage CMOS technology.
