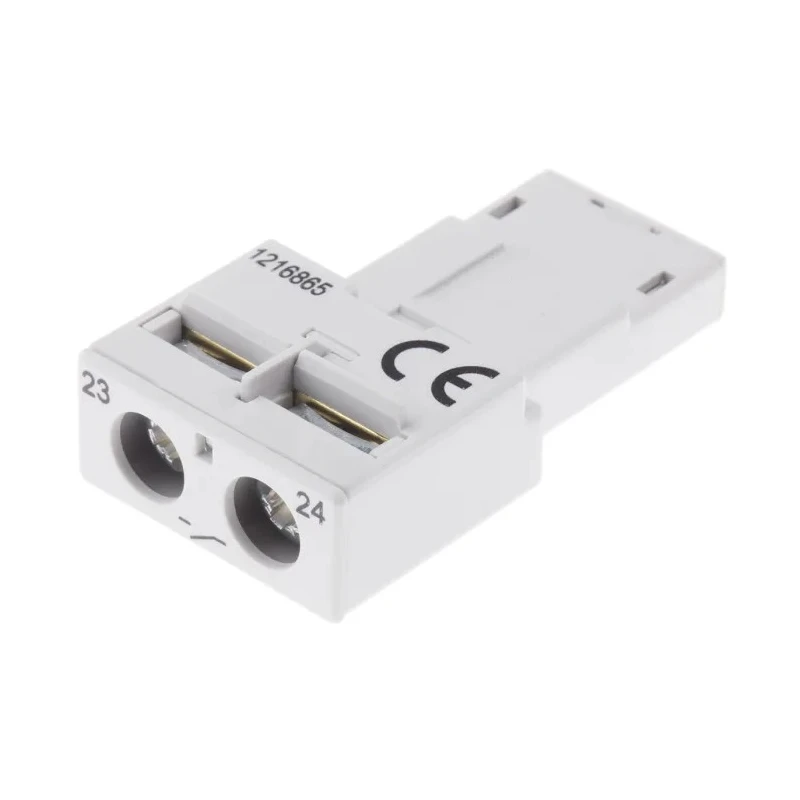

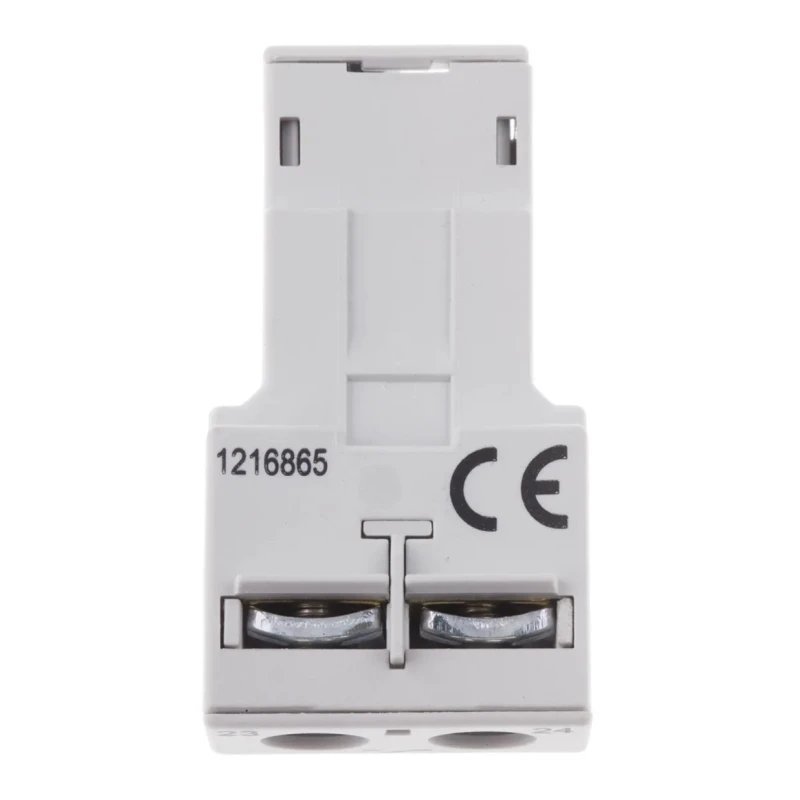

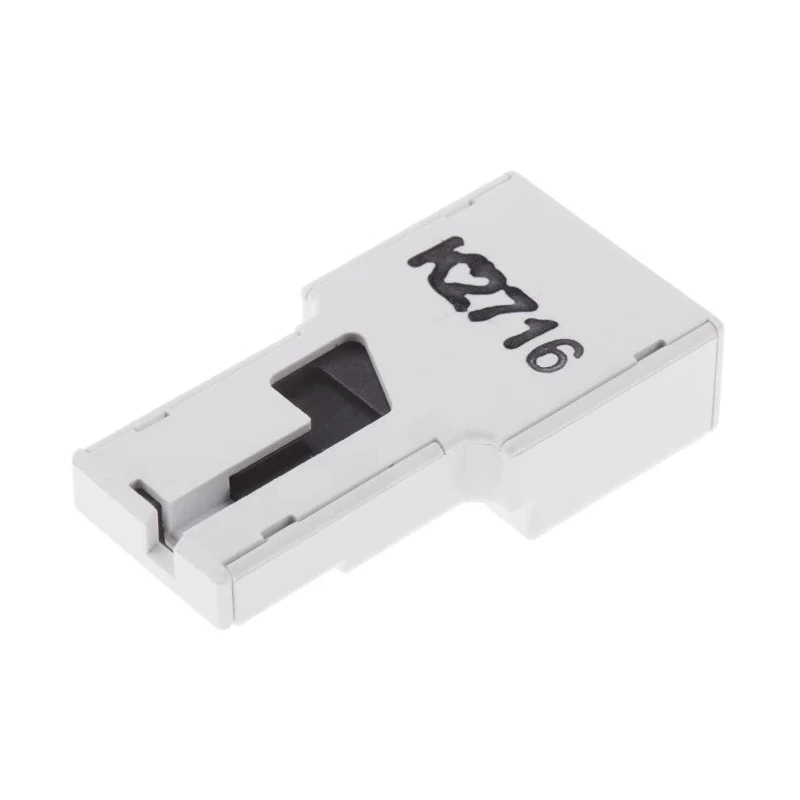

RS PRO Auxiliary Contact Block, 1 Contact 1 NO, HSV Series, Rail Mount, 1.5 A 240V 121-6865

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Auxiliary Contact Block, 1 Contact 1 NO, HSV Series, Rail Mount, 1.5 A 240V 121-6865

Name: RS PRO Auxiliary Contact Block, 1 Contact 1 NO, HSV Series, Rail Mount, 1.5 A 240V 121-6865
Brand: RS PRO
SKU: 139836
Price: 10.31 USD
Availability: InStock



Category Auxiliary Contact Block Brand RS PRO Condition New

Specifications

Country of Origin	Slovenia
Brand	RS PRO
Model	121-6865
Mount Type	Rail
Series	HSV
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Standards/Approvals	EN 60715
Number of Contacts	1
Contact Voltage	240V
Normal State Configuration	1 NO
Contact Current	1.5A
Operational Current Ie	1.5A
Pole and Throw Configuration	1P
Mechanical Durability	100000Cycles
Rated Insulation Voltage Ui	690V
• Manual control	- START, STOP, push-buttons - with a trip indication (i.e. push-buttons stay in the middle position)

Key Features

Designed with manual control for START and STOP push-buttons with trip indication.
Automatic switch-off at over-current using thermal or magnetic release for safety.
Supports control with under-voltage release or shunt release features.
Includes an auxiliary switch for side or flush mounting to indicate switching state.
Contact material is resistant to welding and reduces contact heating.
Mounts to a 35 mm wide mounting rail compliant with EN 60715 standard.
Operates reliably in vertical or horizontal positions within -25°C to 60°C range.
Mechanical durability rated for 100,000 operation cycles ensuring long service life.

Product Description

RS PRO 121-6865 Auxiliary Contact Block is a high-quality single contact block designed for electrical automation and control applications. It features 1 Contact with 1 Normally Open (1 NO) configuration, suitable for rail mounting in compliance with EN 60715 standards. The product supports an operational current of 1.5 A and a contact voltage rated at 240V, making it reliable for low-power auxiliary switching.

Equipped with manual control buttons for START and STOP along with trip indication, this Auxiliary Contact Block provides precise operational feedback. It automatically switches off under over-current situations using thermal or magnetic release mechanisms for enhanced protection. The device can be controlled via under-voltage or shunt release options, offering flexible system integration.

Constructed from UL approved Nylon 66 material with a 94V-2 fire resistance rating, the contact block is durable and resistant to contact welding, minimizing heating during operation. It includes an auxiliary switch for either side or flush mounting that clearly indicates the switching state, ensuring operator safety and system reliability.

The component mounts easily on a 35 mm mounting rail and functions reliably in either vertical or horizontal mounting positions. It withstands a temperature range from -25°C to 60°C and has mechanical durability rated for 100,000 cycles, guaranteeing long-term usage in industrial, laboratory, and commercial electrical control environments.

This product is sourced from Slovenia and conforms to EN 60715 standards, reflecting consistent quality and compliance. Suitable for use in automation systems, control cabinets, and other industrial applications requiring reliable auxiliary switching functions.

Manual control includes START and STOP push-buttons with trip indication. Automatic over-current switch-off via thermal or magnetic release. Control options include under-voltage and shunt release. Auxiliary switch available for side or flush mounting to show switching state.

Contact material designed to resist welding and reduce heating. Mounts on 35 mm rail per EN 60715 standard. Supports vertical or horizontal mounting positions. Mechanical durability of 100,000 operation cycles. Explore more high quality automation and control gear products at EnvMart for your industrial and commercial needs.
