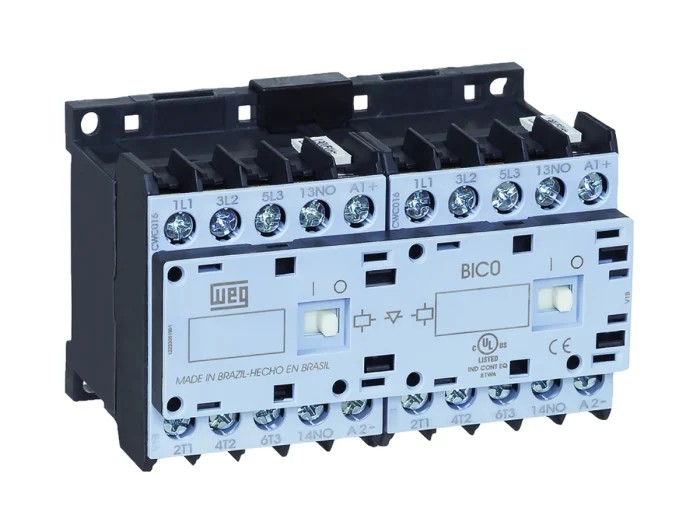

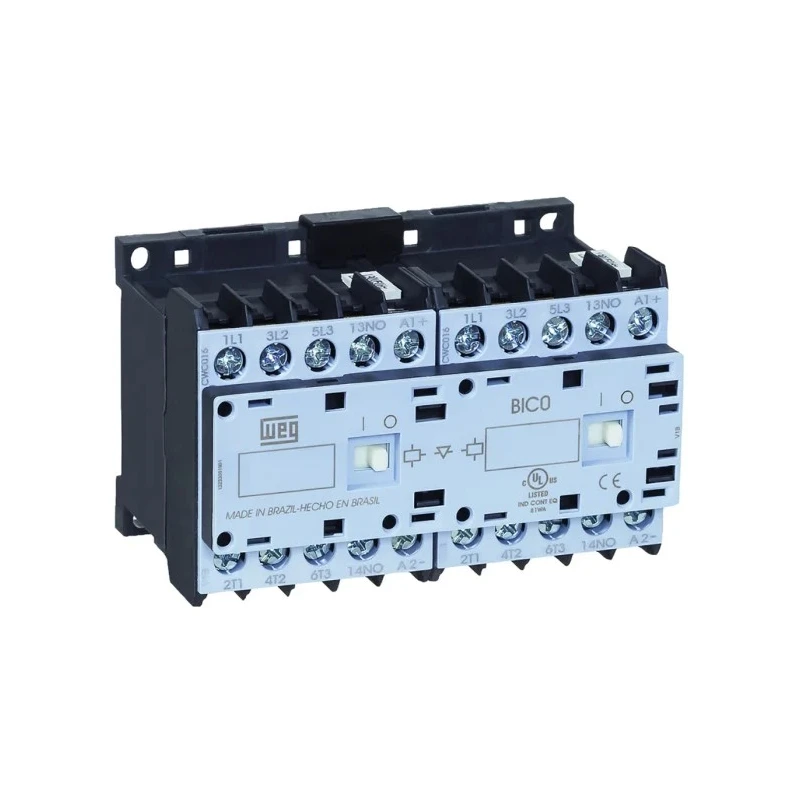

WEG Reversing Contactor, 230V AC Coil, 3-Pole, 7 A, 3 kW, 3 NO, 690V AC CWCI0

Free Delivery in India | Lowest Global Shipping Charges

WEG Reversing Contactor, 230V AC Coil, 3-Pole, 7 A, 3 kW, 3 NO, 690V AC CWCI0



Category Reversing Contactor Brand WEG Condition New

Specifications

Country of Origin	Brazil
Brand	WEG
Function	Motor Control, Reversing
Length	58mm
Model	CWCI0
Depth	59mm
Width	90mm
Mount Type	DIN Rail
Series	CWCI0
Power Rating	3kW
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Number of Poles	3
Standards/Approvals	IEC, RoHS, UL
Contact Voltage	690V ac
Coil Voltage	230V ac
Normal State Configuration	3 NO
Contact Current	7A
Number of Auxiliary Contacts	1
Auxiliary Contact Configuration	1 NC
Operational Current Ie	7A
Control Circuit Voltage Uc	230V ac
Contactor Application	Motor Control
Pole and Throw Configuration	3PST

Key Features

Features a coil voltage of 230V AC for reliable operation.
Includes 3 poles with 3 normally open contacts for efficient motor switching.
Operates at contact voltage up to 690V AC with a maximum current of 7 A.
Equipped with 1 auxiliary contact configured as 1 normally closed contact.
Compact DIN rail mount with screw terminal type for ease of installation.
Suitable for motor control applications requiring reversing functions.
Designed to operate between -25°C and 55°C for versatile industrial environments.
Complies with IEC, RoHS, and UL standards for quality and safety.

Product Description

WEG CWCI0 Reversing Contactor with a 230V AC coil and 3 poles is specifically engineered for motor control and reversing operations. It supports a contact current of 7 amperes and provides a power rating of 3 kW at 230V AC, making it suitable for various industrial applications.

This contactor features a modular and compact design optimized for installation on DIN rails, equipped with screw terminals for secure electrical connections. It has 3 normally open (NO) contacts and incorporates 1 auxiliary contact configured as 1 normally closed (NC) contact, enhancing control flexibility.

The device is rated for contact voltage up to 690V AC and is built to operate reliably within a temperature range from -25°C to 55°C. It meets global standards including IEC, RoHS, and UL, ensuring product safety and quality compliance.

WEG's professional-grade CWC series offers durable, robust, and highly reliable reversing contactors. The CWCI0 model supports motor control and reversing functions effectively, making it ideal for automation, manufacturing, HVAC, water treatment, and other industrial sectors.

Features a coil voltage of 230V AC for reliable operation. Includes 3 poles with 3 normally open contacts for efficient motor switching. Operates at contact voltage up to 690V AC with a maximum current of 7 A. Equipped with 1 auxiliary contact configured as 1 normally closed contact.

Compact DIN rail mount with screw terminal type for ease of installation. Suitable for motor control applications requiring reversing functions. Designed to operate between -25°C and 55°C for versatile industrial environments.

Complies with IEC, RoHS, and UL standards for quality and safety. Constructed with durable materials ensuring robustness and reliability. Dimensions are 90mm width, 58mm length, and 59mm depth. Set contains 1 Pc WEG CWCI0 Reversing Contactor.
