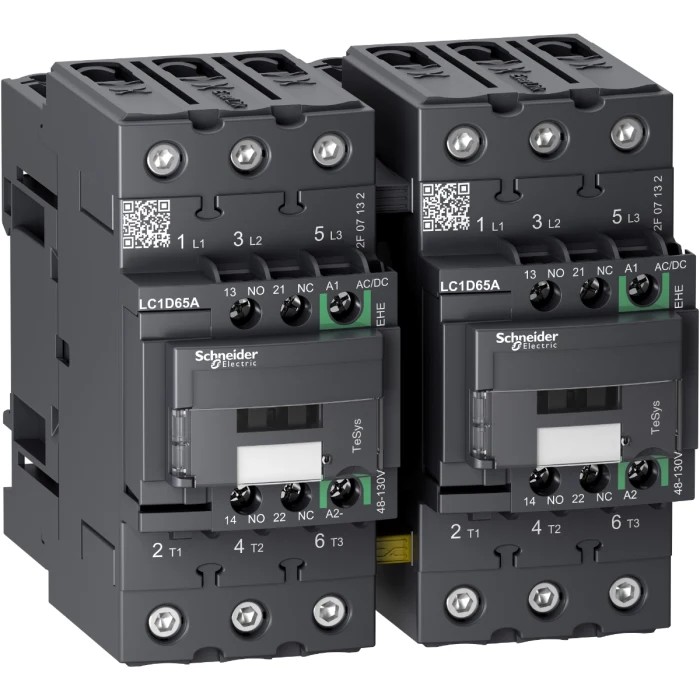

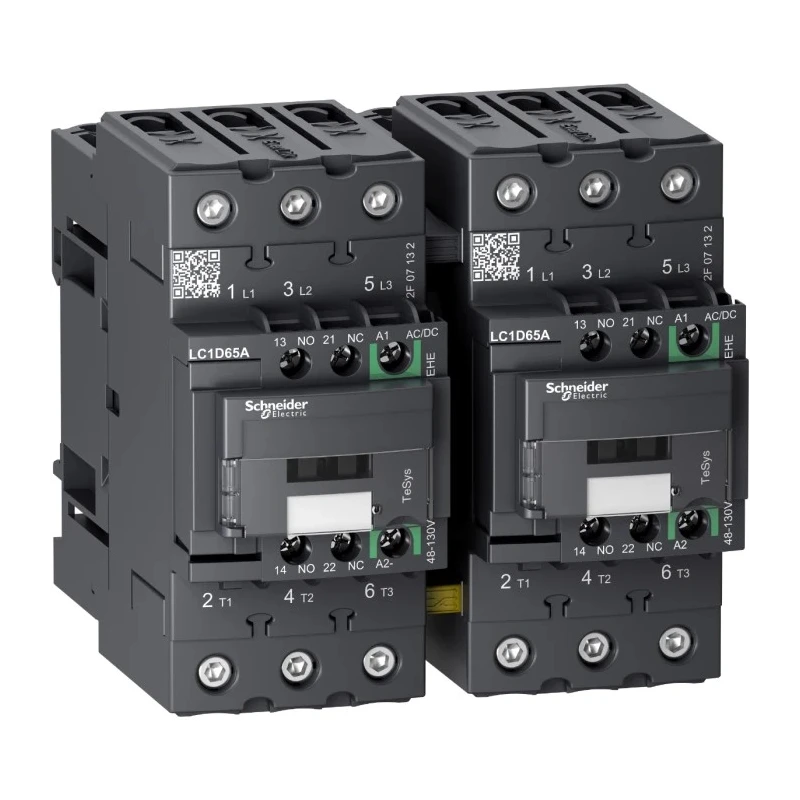

Schneider Electric TeSys D Reversing Contactor, 110V AC/DC Coil, 3-Pole, 65A, 30 kW Power Rating, 3 NO, 690V AC LC2D65AEHE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load, Reversing |
| Length | 119mm |
| Model | LC2D65AEHE |
| Depth | 122mm |
| Width | 120mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 30kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | IEC, CCC, CSA, EAC, UL, RoHS |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac/dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 65A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 65A |
| Control Circuit Voltage Uc | 130V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3PST |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running |
| Example of use | all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- This contactor features a 65A contact current and supports a power rating of 30 kW at 130V.
- It has a contact voltage rating of 690V AC with 3 normally open (NO) contacts.
- The unit is mounted on a DIN rail and includes 2 auxiliary contacts configured as 1 NO and 1 NC.
- The device operates reliably within temperatures from -25°C to 60°C.
- Screw terminal connections ensure secure wiring with IP20 finger-safe protection.
- Designed as a Better World product, it supports sustainability with disassembly features.
- Standards compliance includes IEC, CCC, CSA, EAC, UL, and RoHS certifications.
Product Description
Schneider Electric LC2D65AEHE TeSys D Reversing Contactor is engineered for efficient motor control and resistive load switching in industrial automation settings. It incorporates a 110V AC/DC coil with 3 poles and 3 normally open contacts, rated for 65A contact current and capable of handling 30 kW power at 130V.
This contactor features a robust DIN rail mounting system, and screw terminals that offer secure, finger-safe wiring compliant with IP20 standards. It has 2 auxiliary contacts configured as one normally open and one normally closed, enhancing functionality for control circuits.
Designed to operate in a wide temperature range from -25°C to 60°C, this device meets rigorous international standards including IEC, CCC, CSA, EAC, UL, and RoHS, assuring durability and safety. Its compact dimensions (122mm depth, 119mm length, 120mm width) allow easy integration in control panels.
The LC2D65AEHE model comes preassembled with a reversing power busbar, simplifying installation. As a Better World product, it is designed for disassembly promoting environmental sustainability.
Typical applications include motor control, resistive load management in manufacturing, HVAC systems, pumps, compressors, conveyors, and other industrial automation uses. This contactor supports AC-1 and AC-3 categories, suitable for devices with power factors above 0.95 and squirrel cage motor control respectively.
Choose Schneider Electric TeSys D LC2D65AEHE contactor for reliable performance in demanding industrial and commercial control systems. This contactor features a 65A contact current and supports a power rating of 30 kW at 130V.
It has a contact voltage rating of 690V AC with 3 normally open (NO) contacts. The unit is mounted on a DIN rail and includes 2 auxiliary contacts configured as 1 NO and 1 NC. The device operates reliably within temperatures from -25°C to 60°C.
Screw terminal connections ensure secure wiring with IP20 finger-safe protection. Designed as a Better World product, it supports sustainability with disassembly features. Standards compliance includes IEC, CCC, CSA, EAC, UL, and RoHS certifications.
Explore more solutions in the Contactors category at EnvMart for superior industrial automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this reversing contactor is 30 kW at 130V.
It has a contact current rating of 65A.
The maximum contact voltage for this unit is 690V AC.
The coil voltage for this model is 110V AC/DC.
This unit is designed for DIN rail mounting.
The dimensions are 119mm in length, 120mm in width, and 122mm in depth.
It includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
It operates reliably within a temperature range of -25°C to 60°C.
It complies with IEC, CCC, CSA, EAC, UL, and RoHS standards.
This contactor is designed for motor control and resistive load management in industrial automation settings.
It features screw terminal connections that are IP20 finger-safe.
It is designed for disassembly, promoting environmental sustainability.
