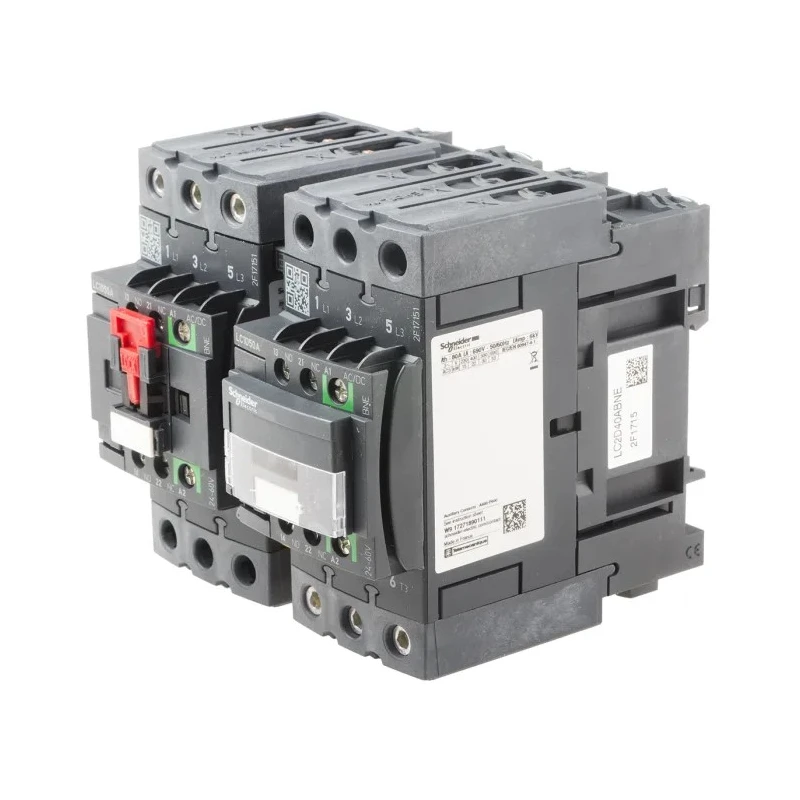

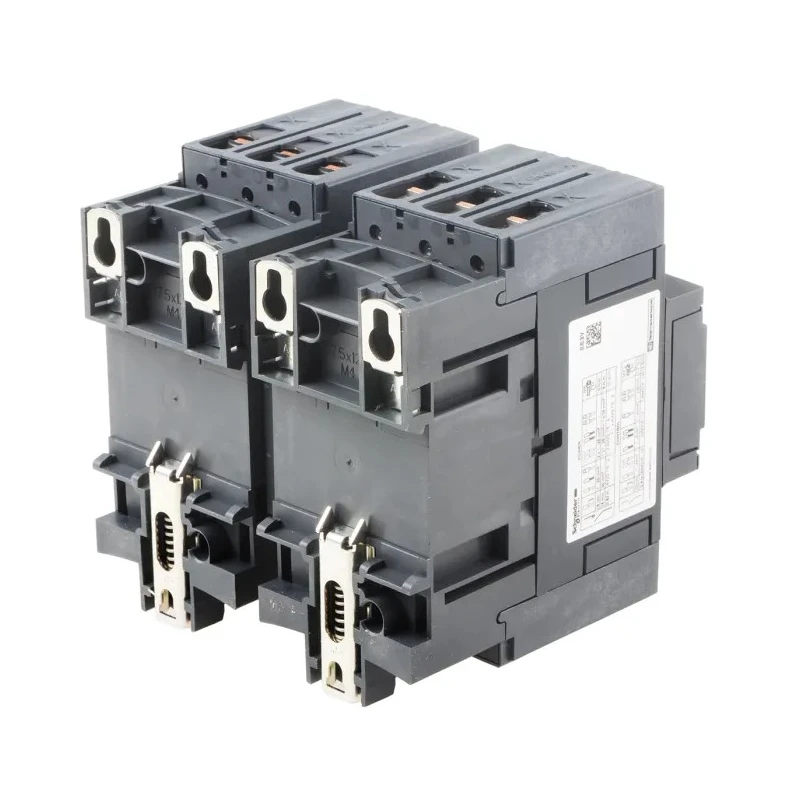

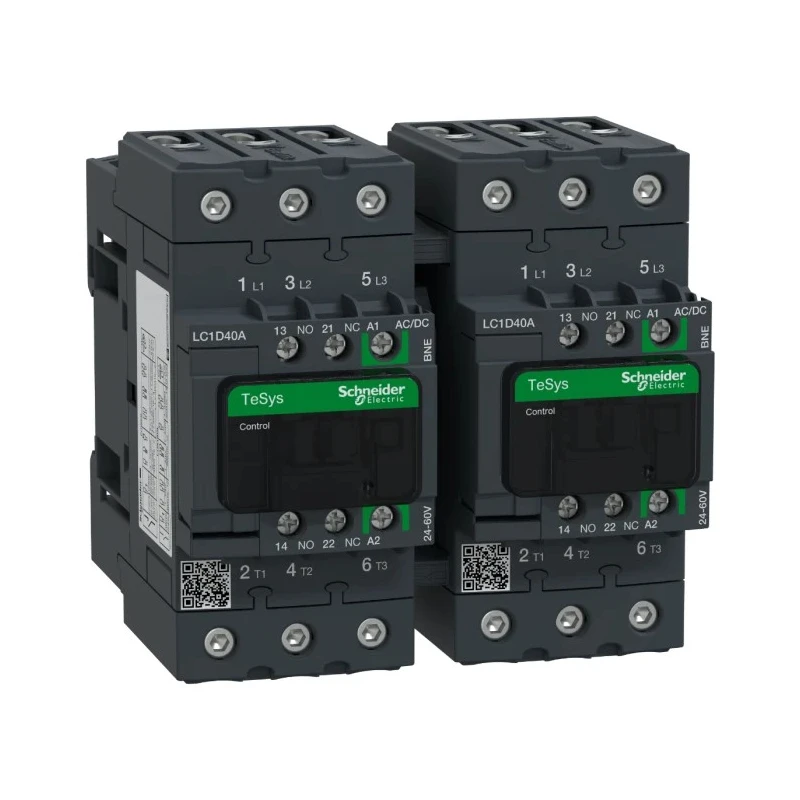

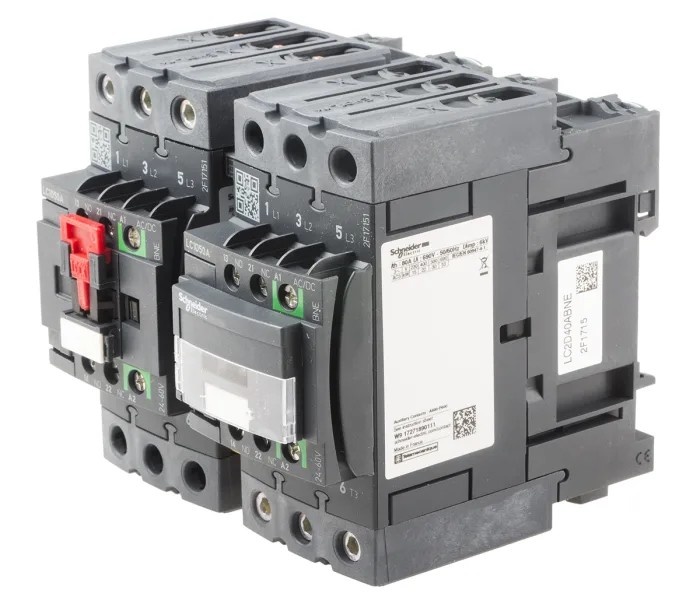

Schneider Electric TeSys D Reversing Contactor 24V ac/dc Coil, 3-Pole, 40 A, 18.5 kW, 60V Control Circuit LC2D40ABNE

Schneider Electric LC2D40ABNE is a high-performance TeSys D series reversing contactor engineered for motor control and resistive load applications. It features a 24V AC/DC coil and supports a contact current of 40A with a power rating of 18.5 kW. The contactor is configured with 3 poles and 3 normally open contacts, optimized to provide reliable performance in reversing motor circuits and resistive load operations.

This device is designed for installation on standard DIN rails and utilizes secure screw terminal connections, facilitating straightforward wiring and maintenance. Its operating temperature range extends from -25°C to 60°C, making it suitable for various industrial environments.

The LC2D40ABNE model supports a control circuit voltage of 60V and mains contact voltage up to 690V AC. It is equipped with two auxiliary contacts, arranged as 1 normally open and 1 normally closed, enhancing control flexibility for auxiliary functions.

Compliance with certifications such as CSA, CCC, EAC, IEC, RoHS, and UL ensures the contactor meets stringent global safety and environmental standards. The product also features IP20 rated finger-safe terminals with North American and International terminal markings, enhancing operator safety.

This Schneider Electric reversing contactor is ideal for diverse industrial and commercial applications including motor control, conveyor systems, lifts, escalators, compressors, pumps, mixers, and HVAC units. Its robust design supports the operational demands of these sectors, ensuring reliability and longevity.

Designed for motor control and resistive load with reversing functionality. Includes 3 poles with 3 normally open contacts and 2 auxiliary contacts (1 NO/1 NC). Mount type: DIN Rail with screw terminals. Operates in ambient temperatures from -25°C to 60°C.

Rated for 40A contact current and 690V AC contact voltage. Complies with international standards including CSA, CCC, EAC, IEC, RoHS, and UL. IP20 finger-safe terminals designed for easy and safe installation.

This Schneider Electric TeSys D Reversing Contactor LC2D40ABNE is part of the Better World product line, designed for disassembly and sustainability. Explore other contactors in the Electronics & Electricals category at EnvMart.
