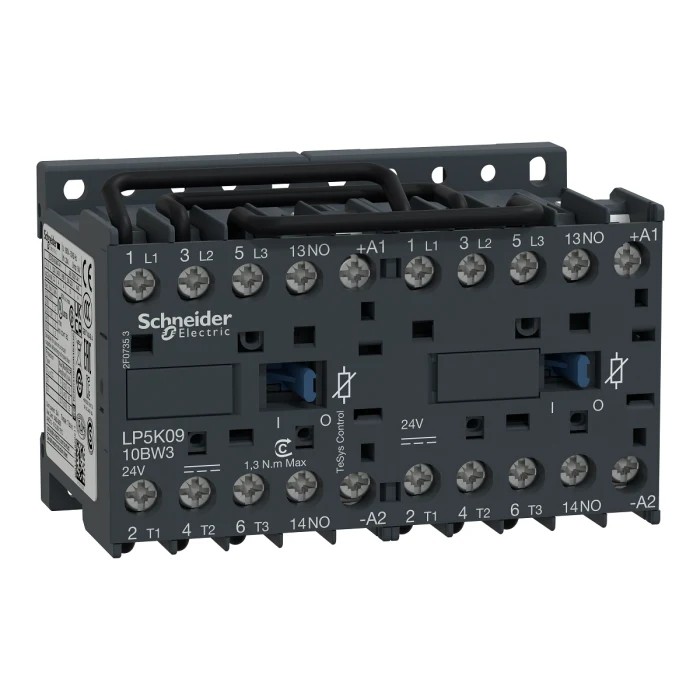

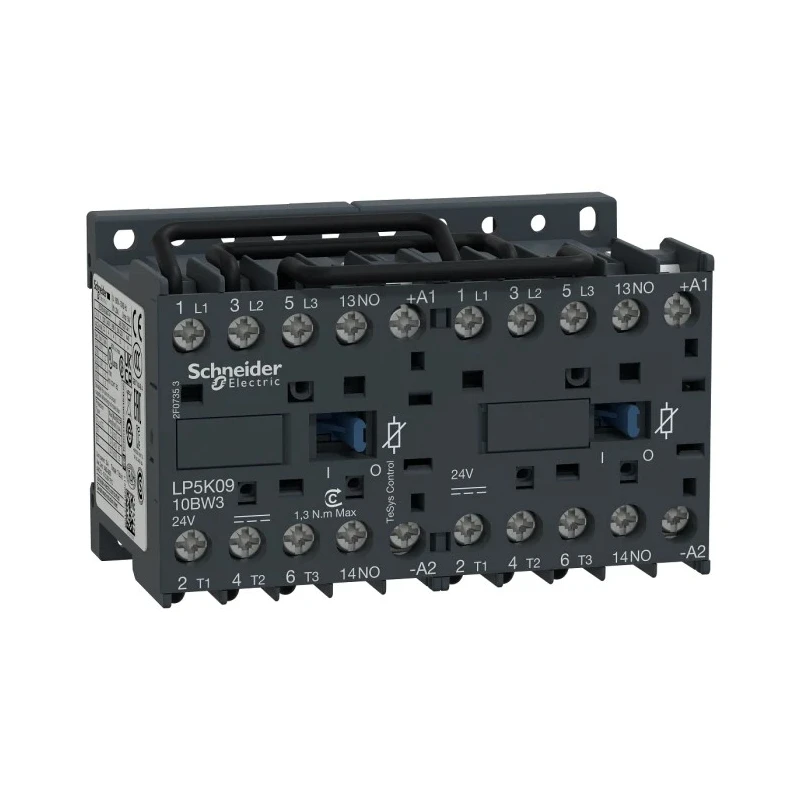

Schneider Electric LP5K Reversing Contactor, 24V DC Coil, 3-Pole, 9A, 4kW, 3NO, 690V AC LP5K0910BW3

Schneider Electric LP5K0910BW3 is a TeSys K reversing contactor engineered for industrial and commercial motor control and resistive load applications. This device operates with a 24V DC coil voltage, supporting a 3-pole configuration and rated for a 9A operational current at 690V AC. It is designed to handle power loads up to 4 kW, providing reliable switching performance for motors and resistive devices.

The contactor features a compact form factor with dimensions of 90 mm width, 58 mm length, and 57 mm depth, making it suitable for DIN rail mounting or screw fixing in control cabinets. Its screw clamp terminal type ensures a secure and stable electrical connection. With one auxiliary contact configured as normally open (1 NO), it provides flexibility for control circuit integration.

Its operational temperature range from -25°C minimum to 50°C maximum allows use in diverse environmental conditions. The contactor is suitable for frequent operation, supporting up to 600 cycles per hour in AC-3 category, which is applicable for squirrel cage motors where breaking occurs while the motor is running, including uses such as lifts, escalators, conveyors, compressors, and pumps.

This product complies with multiple international safety and quality standards including IEC, UL, CSA, EAC, CCC, and RoHS directives, ensuring high reliability and environmental compliance. The mechanical interlock design provides safe reversing operation without requiring electrical interlocking. Additionally, the pre-wired reversing power busbar simplifies installation and reduces wiring time.

Schneider Electric’s Green Premium compliant design focuses on sustainability by facilitating product disassembly and material recovery, aligning with environmentally responsible manufacturing principles. This reversing contactor is ideal for industrial automation systems, manufacturing plants, HVAC controls, and other electrical automation applications requiring reliable motor control solutions.

Compact and robust 3-pole Reversing Contactor. 24V DC coil with low consumption and transient suppressor module. Suitable for motor control and resistive load applications. Supports high cycling durability up to 600 cycles per hour.

Complies with multiple safety and environmental certifications. Preassembled with reversing power busbar and mechanical interlock. Installation via DIN rail or screw fixing with screw clamp terminals. Meets Green Premium standards for sustainable use.

For detailed applications and compatibility, explore the broader selection of automation and control gear products in the EnvMart catalog.
