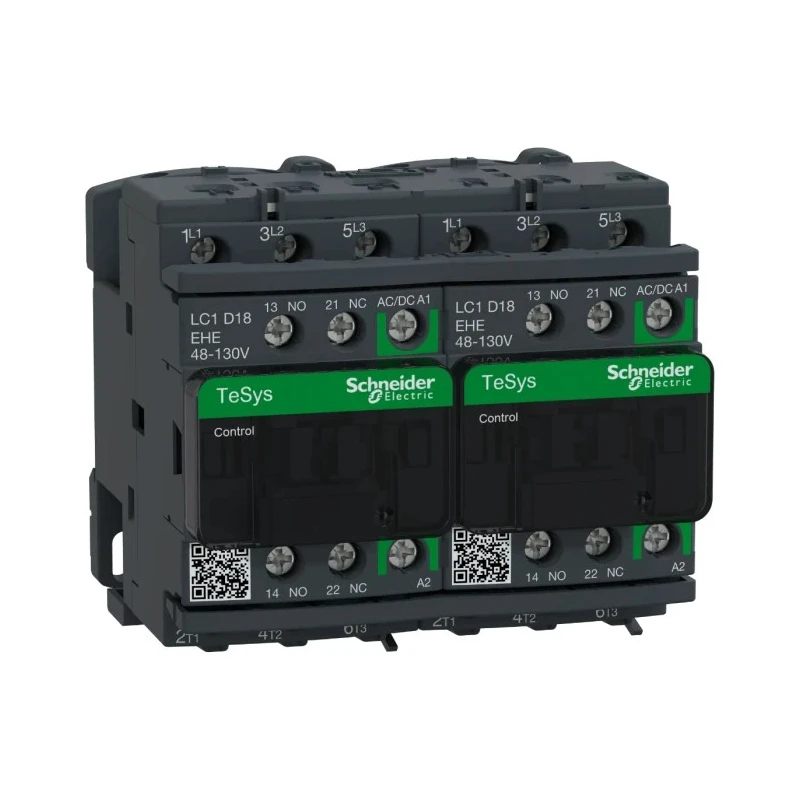

Schneider Electric LC2D Reversing Contactor, 110V AC/DC Coil, 3-Pole, 18A, 7.5 kW, 130V Control Voltage, 3 NO, 690V AC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load, Reversing |
| Length | 90mm |
| Model | LC2D |
| Depth | 77mm |
| Width | 86mm |
| Mount Type | DIN Rail |
| Series | LC2D |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac/dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 18A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 18A |
| Control Circuit Voltage Uc | 130V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3PST |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running |
| Example of use | all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Operates with a 110V AC/DC coil voltage for versatile control.
- Designed to handle a contact current of 18A and power rating of 7.5 kW.
- Comes with 3 poles and 3 normally open main contacts for reversing functions.
- Equipped with two auxiliary contacts configured as 2 NO and 2 NC.
- Suitable for motor control and resistive load switching applications.
- Mountable via DIN rail or panel screws, providing installation flexibility.
- Features IP20 finger-safe screw terminals with international marking standards.
- Approved under standards including CCC, CSA, EAC, IEC, RoHS, and UL for industrial reliability.
Product Description
Schneider Electric LC2D18EHE reversing contactor is engineered for reliable motor control and resistive load applications. It operates on a 110V AC/DC coil voltage with a control circuit voltage of 130V, offering a power rating of 7.5 kW and contact current capacity of 18A. Featuring a 3-pole configuration with 3 normally open contacts, this contactor enables efficient reversing functionality with built-in auxiliary contacts (2 NO/2 NC) for additional switching requirements.
Designed for industrial automation, this contactor supports mounting on both DIN rails and panels with screw connections. The terminals provide IP20 finger-safe protection and are labeled for both North American and International standards to facilitate safe and straightforward wiring.
The contactor is compliant with multiple international standards such as CCC, CSA, EAC, IEC, RoHS, and UL, ensuring high quality and safety in diverse industrial environments. It supports operating temperatures from -25°C to 60°C, making it suitable for a wide range of conditions.
The LC2D series features a preassembled reversing power busbar and mechanical and electrical interlocks that prevent simultaneous closing of both contactors, thereby providing safe and reliable motor reversing functions. Its linear translation movement enables double breaking of poles for better performance and durability.
Operates on a 110V AC/DC coil voltage and 130V control voltage. Supports a contact current of 18A, suitable for 7.5 kW power applications. 3-pole design with 3 normally open contacts for motor reversing control. Includes 2 auxiliary contacts (2 NO/2 NC) for extended functionality.
Mountable on DIN rail or panel with secure screw terminals. IP20 finger-safe terminals with international and North American markings. Certified under CCC, CSA, EAC, IEC, RoHS, and UL standards. Temperature operating range: -25°C to 60°C.
This Reversing Contactor is ideal for industrial, manufacturing, HVAC, and motor control applications requiring reliable switching and reversing functionality. Explore the full Schneider Electric LC2D range at EnvMart for optimized industrial automation solutions.
