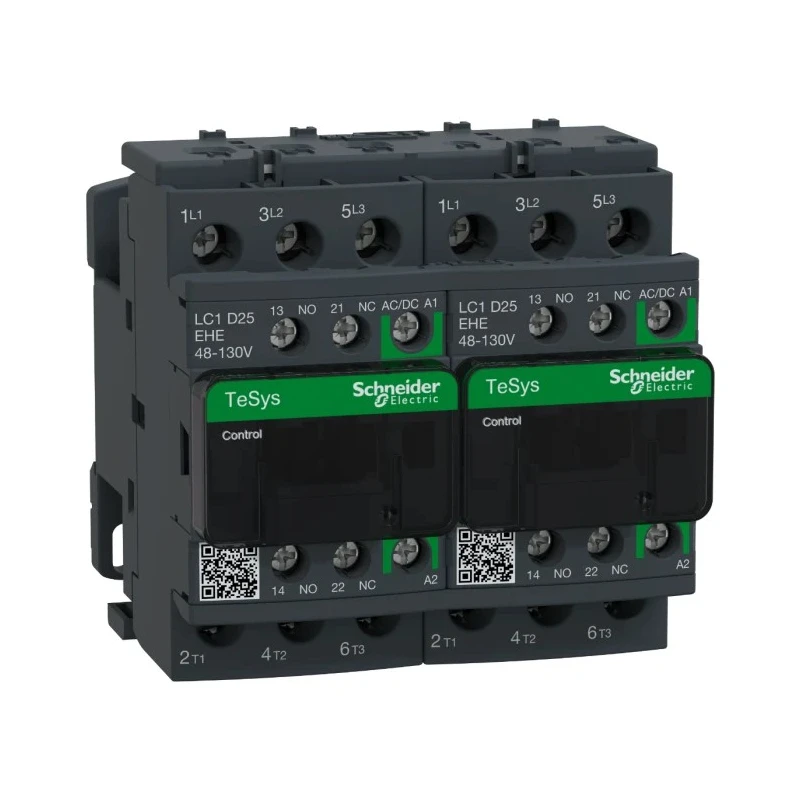

Schneider Electric TeSys D Reversing Contactor 110V ac/dc Coil, 3-Pole, 25 A, 11 kW, 130V Control Voltage, 3 NO LC2D25EHE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load, Reversing |
| Length | 90mm |
| Model | LC2D25EHE |
| Depth | 85mm |
| Width | 92mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 11kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | RoHS, UL, CCC, CSA, EAC, IEC |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac/dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 130V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3PST |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running |
| Example of use | all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed for industrial and automation applications requiring motor reversing control.
- Features a 3-pole configuration with 3 normally open contacts for power load switching.
- Includes auxiliary contacts configured as 2 NO and 2 NC for flexible control circuits.
- Suitable for operation from -25°C to 60°C, ensuring broad environmental tolerance.
- Mountable on DIN rail with IP20 finger-safe screw terminals for secure and safe connections.
- Complies with international standards including RoHS, UL, CCC, CSA, EAC, and IEC.
- Preassembled with reversing power busbar to simplify installation and wiring.
- Supports applications with control circuit voltage of 130V and contact voltage up to 690V AC.
Product Description
Schneider Electric LC2D25EHE TeSys D Reversing Contactor is engineered for high-performance motor control, featuring a 110V AC/DC coil, three-pole design, and rated for 25 A contact current with an 11 kW power rating. This contactor supports motor reversing and resistive load applications, making it essential in industrial automation and electrical control systems.
The contactor is equipped with 3 normally open (NO) power contacts and an auxiliary contact configuration of 2 NO and 2 NC, enabling complex control circuits. Its operational temperature range of -25°C to 60°C ensures reliable use across varied environments. Designed for DIN rail mounting, it offers IP20 finger-safe screw terminals with both North American and international terminal markings for enhanced safety and installation flexibility.
Preassembled with a reversing power busbar, the LC2D25EHE facilitates straightforward installation. The device conforms to major international standards such as RoHS, UL, CCC, CSA, EAC, and IEC, highlighting its quality and compliance for global industrial use.
This reversing contactor utilizes linear translation movement providing double breaking of the poles, ensuring a long mechanical and electrical lifespan. It supports control circuit voltages up to 130V and contact voltages up to 690V AC, suitable for demanding electrical loads.
Applications include control of squirrel cage motors, conveyor systems, lifts, escalators, compressors, pumps, mixers, and HVAC equipment. The contactor supports AC-1 utilization for resistive loads and AC-3 for motor control, meeting versatile industrial requirements.
Designed for industrial and automation use with reversing capabilities. Preassembled reversing power busbar enhances installation efficiency. Complies with international safety and environmental standards. IP20 finger-safe terminals with clear markings for safe wiring.
Supports robust motor and resistive load control applications.
Choose Schneider Electric TeSys D Reversing Contactors for reliable operation, diverse application support, and compliance with global standards. Explore more products in the Automation & Control Gear category at EnvMart.
