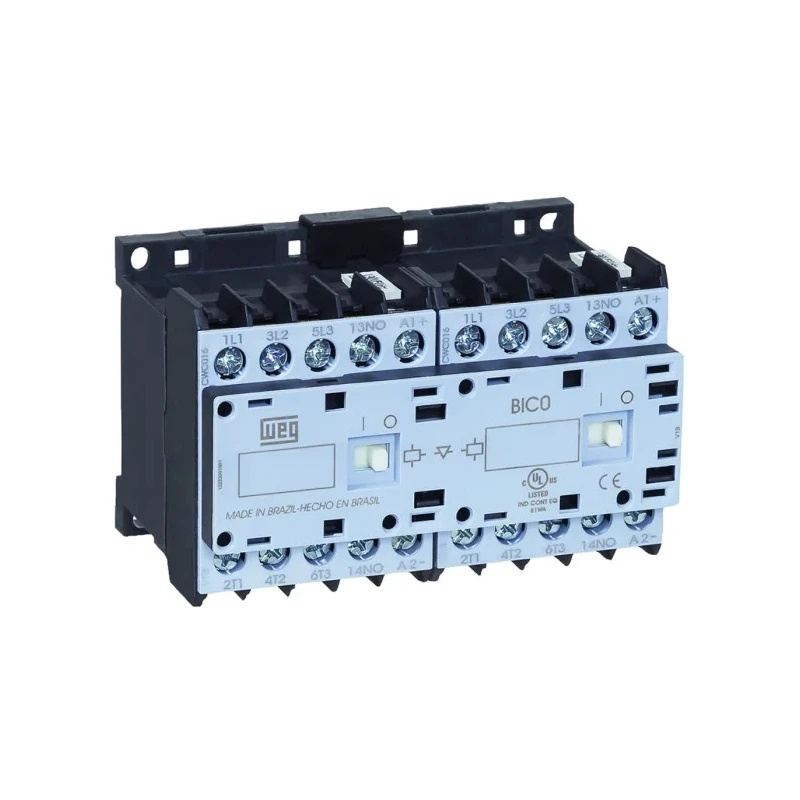

WEG CWCI0 Reversing Contactor, 24V Coil Voltage, 3-Pole, 16A, 7.5 kW, 690V AC Motor Control CWCI0

Free Delivery in India | Lowest Global Shipping Charges

WEG CWCI0 Reversing Contactor, 24V Coil Voltage, 3-Pole, 16A, 7.5 kW, 690V AC Motor Control CWCI0



Category Reversing Contactor Brand WEG Condition New

Specifications

Country of Origin	Brazil
Brand	WEG
Function	Motor Control, Reversing
Length	58mm
Model	CWCI0
Depth	59mm
Width	90mm
Mount Type	DIN Rail
Series	CWCI0
Power Rating	7.5kW
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Number of Poles	3
Standards/Approvals	UL, RoHS, IEC
Contact Voltage	690V ac
Coil Voltage	24V
Normal State Configuration	3 NO
Contact Current	16A
Number of Auxiliary Contacts	1
Auxiliary Contact Configuration	1 NC
Operational Current Ie	16A
Control Circuit Voltage Uc	24V
Contactor Application	Motor Control
Pole and Throw Configuration	3PST

Key Features

Features a 24V coil voltage for reliable operation.
Equipped with three poles and a contact current rating of 16 amps.
Power rating of 7.5 kW supported at 690V AC contact voltage.
Includes one auxiliary contact with configuration 1 NC.
Designed for DIN rail mounting with screw terminal type connections.
Operates within temperature range of -25°C to 55°C.
Compact dimensions of 90mm width, 58mm length, and 59mm depth.
Meets international standards including UL, RoHS, and IEC certifications.

Product Description

WEG CWCI016-01-30C03 CWCI0 Reversing Contactor is engineered for efficient motor control and reversing functions with a robust 24V coil voltage and a three-pole configuration supporting 16A contact current. This reversing contactor operates at a contact voltage of 690V AC and supports a power rating of 7.5 kW, making it suitable for demanding industrial automation and electrical control applications.

The contactor features one auxiliary contact configured as 1 NC, and screw terminal connections ensure secure and reliable electrical interfacing. Its DIN rail mounting compatibility facilitates easy installation and replacement in control panels.

Designed for rigorous industrial environments, it functions reliably within an ambient temperature range from -25°C to 55°C. With compact dimensions (90mm width, 58mm length, and 59mm depth), it saves valuable panel space while delivering high performance.

This model complies with IEC/EN60947 and DIN VDE 0660 standards and holds certifications such as UL and RoHS, underscoring its quality and compliance with international electrical safety norms.

Its modular construction and professional-grade reliability make the CWCI0 series ideal for automated manufacturing, HVAC systems, motor starters, and various electrical automation applications in industrial, commercial, and laboratory settings.

Features a 24V coil voltage for reliable operation. Equipped with three poles and a contact current rating of 16 amps. Power rating of 7.5 kW supported at 690V AC contact voltage. Includes one auxiliary contact with configuration 1 NC.

Designed for DIN rail mounting with screw terminal type connections. Operates within temperature range of -25°C to 55°C. Compact dimensions of 90mm width, 58mm length, and 59mm depth. Meets international standards including UL, RoHS, and IEC certifications.

Robust and modular design for industrial motor control and automation systems.

Choose the WEG CWCI0 Reversing Contactor for durable and efficient motor reversing control in advanced electrical automation projects. Explore more industrial control components and contactors on EnvMart for your application needs.
