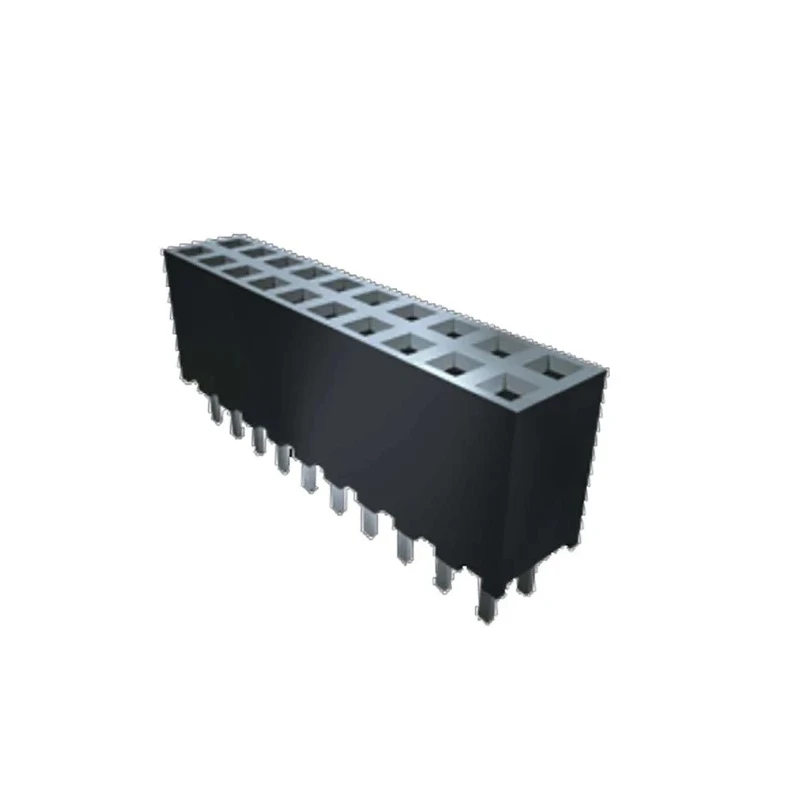

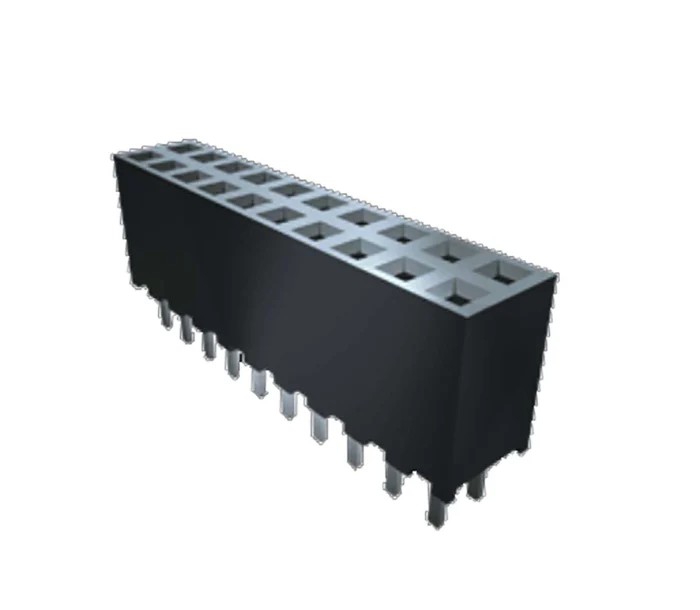

Samtec PCB Socket 20-Contact 2 Row 2 mm Pitch Surface Mount SQW-110-01-F-D-VS-A

Name: Samtec PCB Socket 20-Contact 2 Row 2 mm Pitch Surface Mount SQW-110-01-F-D-VS-A
Brand: Samtec
SKU: 105455
Price: 3.49 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	281V
Brand	Samtec
Orientation	Straight
Current	3.8A
Model	SQW-110-01-F-D-VS-A
Mount Type	Surface
Special Feature	FleXYZ™ design allows design flexibility in all three axes
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Current Rating	3.8A per pin(2 pins powered)
Series	SQW
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Max Cycles	100 with 10μ" (0.25μm) Au
Pitch	2mm
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Female
Connector System	Board-to-Board
Operating temp range	-55°C to +125°C

Key Features

Equipped with phosphor bronze contacts plated with gold for enhanced conductivity.
Constructed with a robust liquid crystal polymer housing material.
Designed for surface mount termination with a straight orientation.
Supports a current rating of 3.8 A per pin with 2 pins powered.
Operates reliably between -55°C and 125°C temperature range.
Features FleXYZ™ design enabling flexibility in all three mechanical axes.
Suitable for rugged, cost-effective applications requiring long-lasting cycles up to 100 with 10μ" gold plating.

Product Description

Samtec SQW-110-01-F-D-VS-A is a high-quality PCB Socket designed for board-to-board connectivity featuring 20 female contacts arranged in 2 rows with a 2 mm row pitch. The socket utilizes a black liquid crystal polymer housing for excellent durability alongside phosphor bronze contacts with gold plating to ensure reliable electrical performance.

This surface mount socket supports a current rating of 3.8 A per pin (with 2 pins powered), making it suitable for moderate power electronic applications. Its operating temperature range from -55°C to 125°C ensures functionality in demanding environments.

The FleXYZ™ design allows flexibility in all three mechanical axes, facilitating varied PCB layout configurations. The socket is engineered for up to 100 mating cycles with 10μ" (0.25μm) gold plating, ensuring longevity in industrial, electronic manufacturing, and laboratory settings.

This connector system is straight in orientation and mounts securely on the board surface to maintain robust electrical connections in power and signal transmission applications. Phosphor bronze contacts with gold plating improve conductivity and corrosion resistance.

Liquid crystal polymer housing provides strength and thermal stability. Surface mount termination suits modern PCB assembly methods. Current rating of 3.8 A per pin supports a wide range of electronic boards. FleXYZ™ special design offers enhanced mechanical adaptability for design flexibility.

Operating temperature range of -55°C to +125°C enables use in harsh industrial conditions. Long durability up to 100 cycles with gold plating ensures product lifespan.

This robust PCB Socket fits various industrial, electronic, and manufacturing applications where reliable board-to-board connectivity and electrical integrity are mandatory. It is ideal for integration in electronic components, power connectors, and surface mount technology applications.
