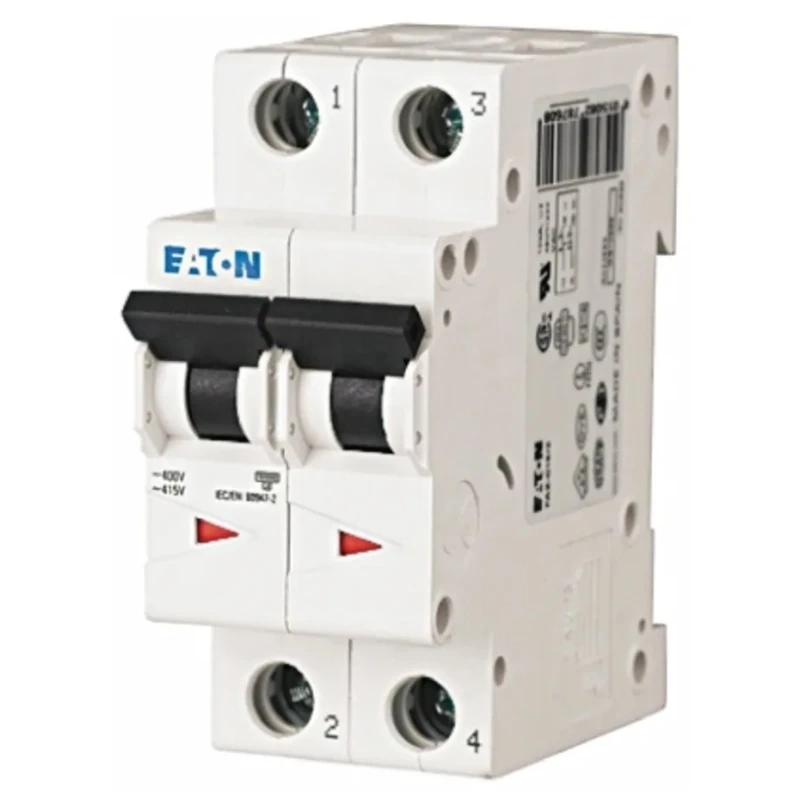

Eaton xEffect Miniature Circuit Breaker 2-Pole 63A Type C 400V AC 6kA Breaking Capacity FAZ6-C63/2
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Eaton |
| Model | FAZ6 |
| Depth | 62mm |
| IP Rating | IP20 |
| Width | 35mm |
| Mount Type | DIN Rail |
| Current Rating | 63A |
| Series | xEffect |
| Breaking Capacity | 6kA |
| Number of Poles | 2 |
| Standards/Approvals | EN 60898, IEC |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| Type B | Instantaneous trip when the electrical current through the device is 3 to 5 times the rated current. The type B trip curve MCBs are designed for standard circuit protection, typically protection of generators, persons and very long cables |
| Type C | Instantaneous trip when the flow-through current is 5 to 10 times the rated current |
| Type D | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type K | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type S | Instantaneous trip when the flow-through current is 13 to 17 times the rated current |
| Type Z | Instantaneous trip when the flow-through current is 2 to 3 times the rated current |
| MCB Module widths | 1P 17.5mm, 2P 35mm and 3P 52.5mm |
Key Features
- Thermal and electromagnetic release ensures precise overcurrent protection.
- Rated for 400V AC voltage and 6kA breaking capacity.
- Designed for DIN rail mounting with toggle switch actuator.
- Compact width of 35mm accommodates space-saving panel installations.
- IP20 finger-safe rating enhances operator safety.
- Trip-free mechanism prevents manual override of the breaker.
- Suitable for industrial, commercial, and distribution board applications.
- Complies with IEC and EN 60898 standards.
Product Description
Eaton FAZ6-C63/2 xEffect Miniature Circuit Breaker is a robust 2-pole device designed for protection against overload and short circuit in electrical installations. Rated at 63A with a Type C tripping characteristic, it provides sensitive and reliable thermal-magnetic tripping for quick interruption in fault conditions.
This MCB supports a nominal voltage of 400V AC and a breaking capacity of 6kA, suitable for moderate fault current levels in commercial and industrial settings. Designed for DIN rail mounting with a 35mm module width per device, it supports efficient panel assembly and space optimization.
The toggle switch actuator facilitates clear on/off status indication, and the trip-free mechanism enhances operational safety by preventing the breaker from remaining manually set in ON position despite faults. The IP20 ingress protection rating provides finger protection to reduce accidental contact risks.
Compliance with international standards EN 60898 and IEC ensures product reliability and safety. Eaton's xEffect FAZ6 series incorporates advanced current limiting technology that reduces let-through energy, improving protection of connected equipment.
This series includes a variety of devices, interlocks, and accessories compatible with the FAZ6 platform, suitable for diverse electrical distribution and control tasks. Thermal-magnetic overcurrent protection for accurate fault clearing.
Clear indication of contact status via front toggle switch. Compact 35mm width suitable for 2-pole installations. DIN rail mounting for quick and secure installation. Standardized tripping characteristics optimized for varied applications.
Enhanced safety with trip-free and finger-safe design. Wide application in industrial, building automation, and electrical distribution systems. Explore Eaton products and other high-quality Miniature Circuit Breakers on EnvMart for your electrical protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this model is 63A.
It has a breaking capacity of 6kA, suitable for moderate fault current levels.
This unit is rated for a nominal voltage of 400V AC.
This model features Type C tripping characteristics, which trip instantaneously when the flow-through current is 5 to 10 times the rated current.
The width of this model is 35mm, allowing for space-saving installations.
It is designed for DIN rail mounting, ensuring quick and secure installation.
This unit has an IP20 ingress protection rating, providing finger protection against accidental contact.
The depth of this miniature circuit breaker is 62mm.
It complies with international standards EN 60898 and IEC, ensuring reliability and safety.
It utilizes a thermal magnetic tripping mechanism for accurate fault clearing.
This model is suitable for industrial, commercial, and distribution board applications.
The reset actuator type is a toggle switch, providing clear on/off status indication.
