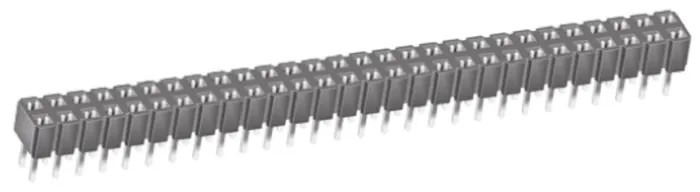

Samtec CES Series 56-Contact 2 Row 2.54 mm Pitch Straight Through Hole PCB Socket CES-128-01-T-D

Free Delivery in India | Lowest Global Shipping Charges

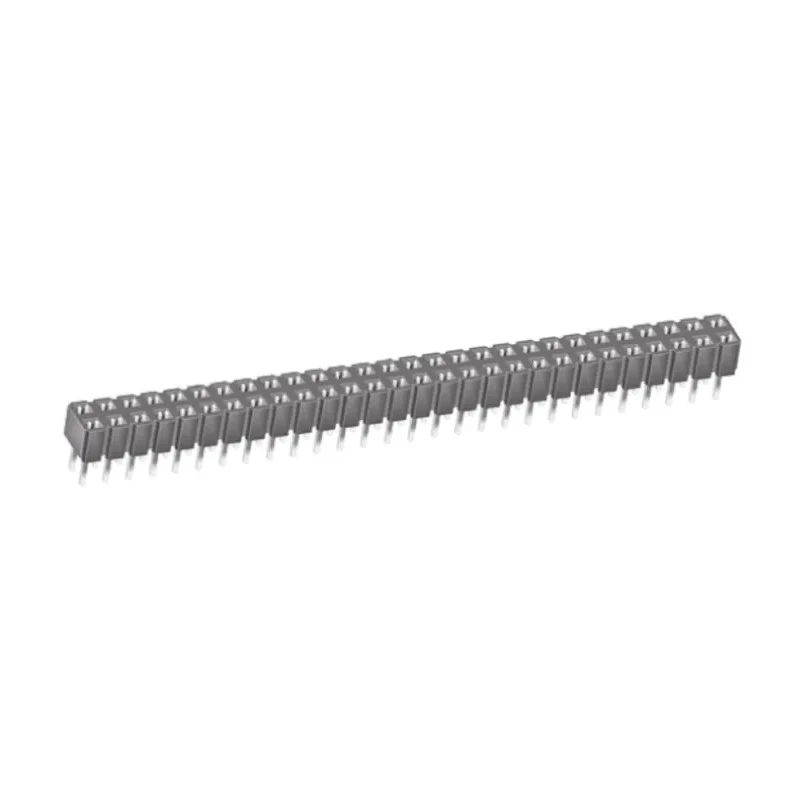

Samtec CES Series 56-Contact 2 Row 2.54 mm Pitch Straight Through Hole PCB Socket CES-128-01-T-D

Name: Samtec CES Series 56-Contact 2 Row 2.54 mm Pitch Straight Through Hole PCB Socket CES-128-01-T-D
Brand: Samtec
SKU: 105207
Price: 6.76 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	333V
Brand	Samtec
Orientation	Straight
Current	12A
Model	CES-128-01-T-D
Mount Type	Through Hole
Housing Material	Black Glass Filled Polyester
Contact Material	Bronze
Series	CES
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Standards/Approvals	RoHS
Contact Plating	Tin
Number of Contacts	56
Connector System	Board-to-Board
TLW series low profile square post headers	see stock number 765-6168 typically
TSM series square post headers	see stock number 765-6613 typically
TSW series square post headers	see stock number 767-1044 typically

Key Features

Low profile socket strip with 3.25 mm solder tail length for solder termination.
Black glass filled polyester housing ensures durability and insulation.
Contacts made from phosphor bronze with matte tin plating optimize conductivity and corrosion resistance.
Supports current up to 12 A and voltage rating up to 333 V.
Operates reliably in temperature range from -55°C to 105°C.
Suitable for use with TLW, TSM, and TSW series square post headers for versatile connectivity.
Board-to-board PCB system compatible, providing robust soldered connections.
RoHS compliant ensuring environmental and safety standards.

Product Description

Samtec CES-128-01-T-D is a high-quality PCB socket from the CES series, featuring 56 contacts arranged in 2 rows with a 2.54 mm pitch. This straight through hole socket is designed for board-to-board connections, providing a low-profile solution with a solder termination tail length of 3.25 mm. The housing is constructed from black glass filled polyester offering strong mechanical stability and effective electrical insulation.

The socket contacts are manufactured from phosphor bronze, known for its excellent electrical conductivity and mechanical properties, and are plated with matte tin for enhanced corrosion resistance and solderability. Rated for 12 A current and 333 V voltage, it is suitable for a wide range of electronic applications requiring reliable connections.

Operational temperature ranges from -55°C to 105°C ensure this socket performs well under diverse environmental conditions. This component complies with RoHS standards, aligning with environmental regulations.

These CES series sockets are compatible with Samtec's TLW, TSM, and TSW series low profile square post headers, making them versatile for various PCB design requirements. Low profile 2.54 mm pitch closed entry socket strip with 3.25 mm solder tail.

Black glass filled polyester housing ensures durability and insulation. Phosphor bronze contacts with matte tin plating optimize connectivity. Supports 12 A current and 333 V voltage ratings. Wide operating temperature range from -55°C to 105°C.

Compatible with TLW, TSM, and TSW series headers for flexible board interconnects. RoHS compliant for environmental safety.

This PCB Socket is ideal for industrial, electronic manufacturing, test equipment, and commercial PCB assembly applications requiring durable and efficient board-to-board connection solutions. It is a reliable choice for enhancing electronic device performance.
