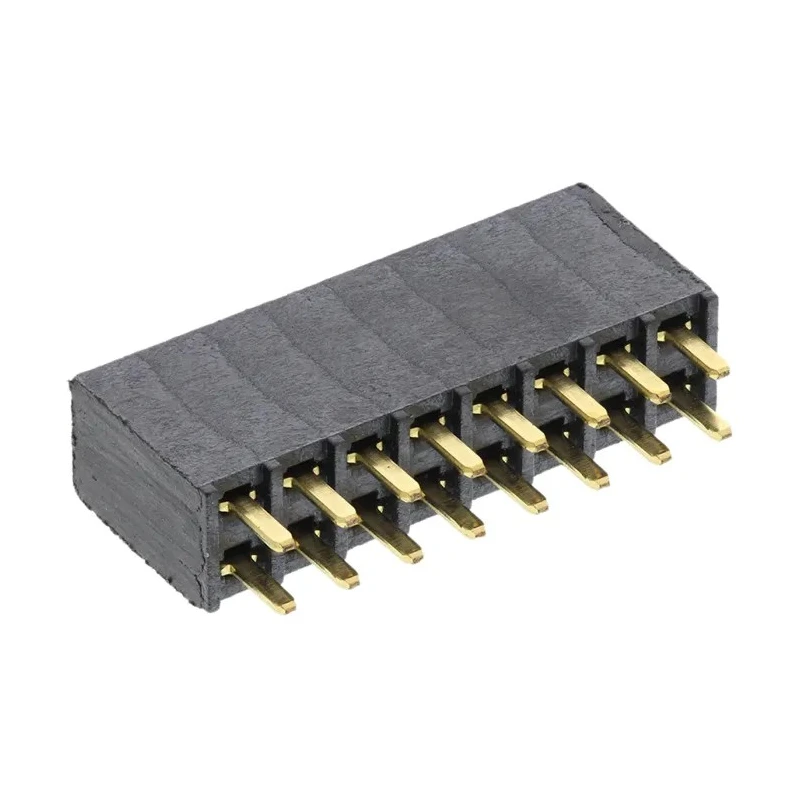

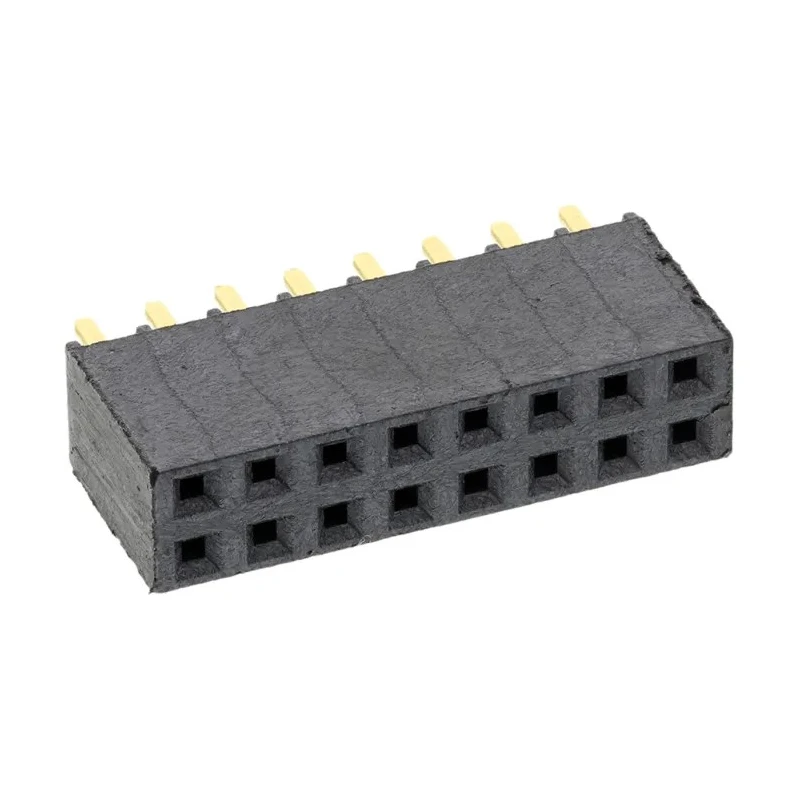

Samtec SSW Series Straight Through Hole PCB Socket 16-Contact 2 Row 2.54 mm Pitch 550V Solder SSW-108-01-G-D

Samtec SSW-108-01-G-D is a premium Straight Through Hole PCB Socket featuring a 16-contact, 2-row configuration with a 2.54 mm pitch. The device is designed for robust and high-reliability board-to-board connections in industrial electronic assemblies.

The socket housing is made from durable black liquid crystal polymer, ensuring structural integrity and resistance to wear. The female contacts are crafted from phosphor bronze and plated with 0.51μm of gold, providing superior electrical conductivity and long-term corrosion resistance. This makes it ideal for applications where reliable signal integrity is critical.

Operating within a voltage rating of 550V and current rating of 6.9A, this PCB socket supports moderate power demands in various electronic and electrical equipment. The through hole mount type and straight orientation enable straightforward PCB integration and soldering, facilitating efficient assembly processes.

The operating temperature range from -55°C up to 125°C allows the socket to perform reliably in diverse environmental conditions, including industrial, manufacturing, and laboratory environments. Its 2.5 mm row pitch and compatibility with corresponding Samtec square post headers make it adaptable to multiple board-to-board connection designs.

Black liquid crystal polymer housing provides durability and heat resistance. Phosphor bronze contacts plated with gold ensure excellent connectivity. Through hole solder termination for secure PCB mounting. 16 contacts arranged in 2 rows with 2.54 mm pitch facilitate compact connection.

Voltage rating of 550V and current capacity of 6.9A enable robust electrical performance. Suitable for industrial, manufacturing, electronic, and laboratory applications. Operating temperature range from -55°C to 125°C for varied environmental conditions.

Compatible with Samtec TSW and TSM series headers for board-to-board connections.

This connector is ideal for use in electronic devices requiring guaranteed connectivity, such as power distribution modules, control panels, instrumentation, and communication equipment. It aids in enhancing production efficiency by providing reliable, solder-tail connections designed to last under demanding operating conditions.
