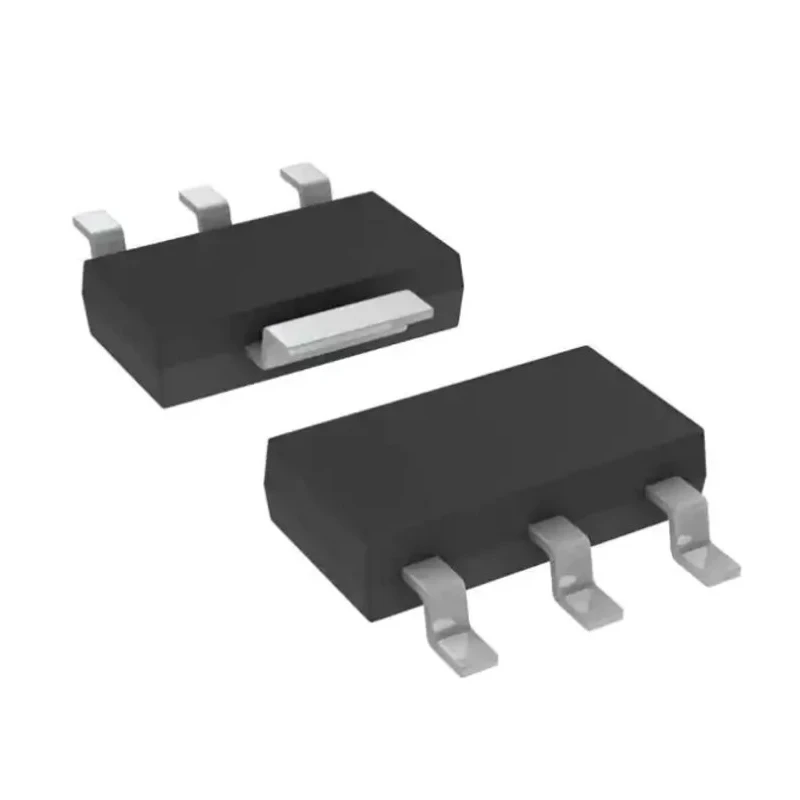

STMicroelectronics MOSFET Gate Driver 1 Output 10 μA 3-Pin SOT-223 5.5V VNL5050N3TR-E

STMicroelectronics VNL5050N3TR-E is a monolithic MOSFET gate driver IC designed to control resistive or inductive loads with a single output. It operates at a supply voltage of 5.5V within a temperature range of -40°C to 150°C, making it suitable for demanding industrial and automotive environments.

This device features a built-in thermal shutdown mechanism to protect the chip from overheating and short circuits. The output current limitation function prevents damage during overload conditions, while fast demagnetization capability efficiently handles inductive loads during turn-off. Its low 10 μA drive current and minimal standby current enhance power efficiency for embedded applications.

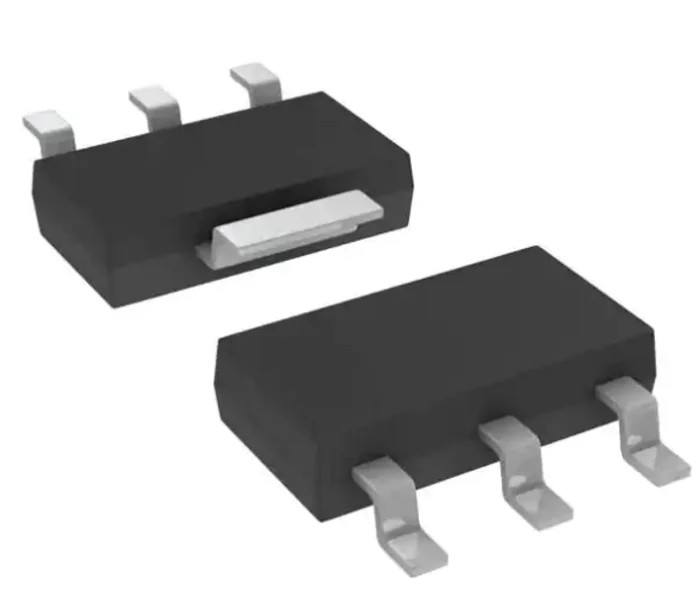

Housed in a compact 3-pin SOT-223 surface mount package (6.7mm x 3.7mm x 1.8mm), it supports a wide range of power management use cases. Rise and fall times are both 10 μs, ensuring timely switching operations. Although it does not carry specific automotive standards approval, it remains suitable for robust electronic control systems.

Key features include ESD protection, overvoltage clamp, and automatic thermal restart after fault conditions, improving device longevity and system safety. The VNL5050N3TR-E is widely used in industrial control, power supply circuits, and automotive electronics requiring reliable MOSFET gate driving solutions.

Set your designs apart with the high-performance STMicroelectronics VNL5050N3TR-E MOSFET Gate Driver, engineered to deliver efficient and safe MOSFET switching. Trust EnvMart for your semiconductor component needs with detailed industrial-grade product information.

Designed for driving resistive or inductive loads with one side connected to the battery. Built-in thermal shutdown protects against over temperature and short-circuit conditions. Output current limitation safeguards the device during overload conditions.

Features fast demagnetization of inductive loads upon turn-off. Includes ESD protection and overvoltage clamp for device reliability. Very low standby current ensures energy efficiency. Wide operating temperature range from -40°C to 150°C.

Surface mount SOT-223 package measuring 6.7mm length, 3.7mm width, and 1.8mm height. Driver type MOSFET with fast rise and fall times of 10 μs each. Ideal for automotive and industrial electronic applications. Explore more power management ICs and semiconductor devices at EnvMart.
