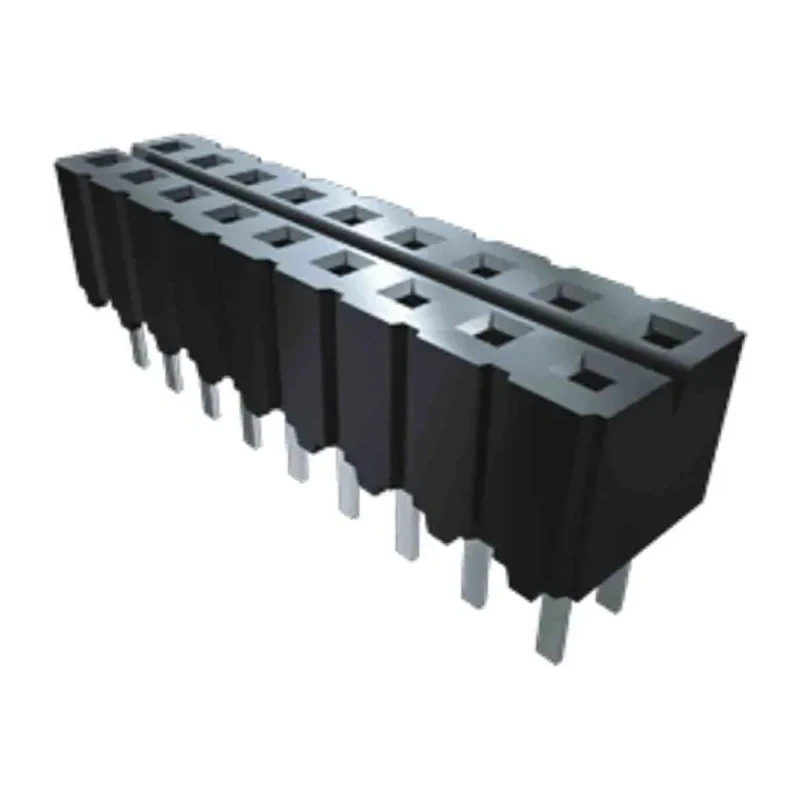

Samtec CES Series 40-Contact 2 Row 2.54 mm Pitch Straight Through Hole PCB Socket CES-120-01-G-D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 5.5A |
| Model | CES-120-01-G-D |
| Mount Type | Through Hole |
| Housing Material | Black Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | CES |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold over Tin |
| Number of Contacts | 40 |
Key Features
- Designed for board-to-board connection with 40 contact points arranged in 2 rows.
- Features a pitch of 2.54 mm for standard PCB compatibility.
- Housing is made from black liquid crystal polymer ensuring durability.
- Contact material consists of phosphor bronze with gold over tin plating for reliable conductivity.
- Supports current rating of 5.5 A per pin for robust electrical performance.
- Operating temperature range from -55°C to 125°C suitable for industrial applications.
- Provides straight orientation with through-hole mount type for secure PCB installation.
- Compliant with RoHS standards ensuring environmental safety.
Product Description
Samtec CES-120-01-G-D is a high-quality PCB Socket from the CES Series designed for straight through-hole mounting with a pitch of 2.54 mm. This component features 40 contacts arranged in 2 rows, built for reliable board-to-board connections in electronic and industrial applications.
The socket housing is constructed from black liquid crystal polymer, known for its robustness and thermal stability. The contact material is phosphor bronze plated with gold over tin to provide excellent electrical conductivity and corrosion resistance. With a current rating of 5.5 A per pin and an operating temperature range from -55°C to 125°C, this socket is capable of performing reliably in demanding environments.
This PCB socket supports through-hole mounting and a straight orientation to facilitate easy integration into printed circuit boards. Its RoHS compliance certifies that it meets critical environmental standards, making it suitable for use in manufacturing, electronics assembly, laboratory prototyping, and other related industrial uses.
Board-to-board connection system with 40 contacts in two rows. 2.54 mm pitch standard suitable for many PCB designs. Black liquid crystal polymer housing for mechanical strength and thermal resistance. Phosphor bronze contacts plated with gold over tin for enhanced conductivity.
Rated to handle up to 5.5 A current per pin safely. Operates effectively in wide temperature range from -55°C up to 125°C. Straight orientation through-hole mount for reliable soldered installation. Complies with RoHS for environmentally safe electronics manufacturing.
This product is commonly used in electronic manufacturing, laboratory testing environments, industrial automation systems, and anywhere reliable PCB connection sockets are required. Its robust construction and standard pitch make it a versatile and essential component for connectors in the electronics industry.
Explore more in our PCB Socket category for compatible components and accessories. Samtec CES Series delivers dependable electronic connections for professional industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB socket is 2.54 mm, making it compatible with standard PCB designs.
This model features 40 contacts arranged in 2 rows for board-to-board connections.
The CES-120-01-G-D is rated for a current of 5.5 A per pin, ensuring robust electrical performance.
It operates effectively within a temperature range of -55°C to 125°C, suitable for industrial applications.
The housing is made from black liquid crystal polymer, while the contacts are phosphor bronze plated with gold over tin for enhanced conductivity.
This model supports through-hole mounting, providing a secure installation on printed circuit boards.
Yes, it is compliant with RoHS standards, ensuring it meets critical environmental safety requirements.
The termination type for this socket is solder, facilitating a reliable connection to the PCB.
This socket is part of the Samtec CES Series, designed for reliable electronic connections.
The orientation of this socket is straight, allowing for easy integration into various PCB layouts.
The country of origin for this PCB socket is India.
This PCB socket is commonly used in electronic manufacturing, laboratory testing environments, and industrial automation systems.
