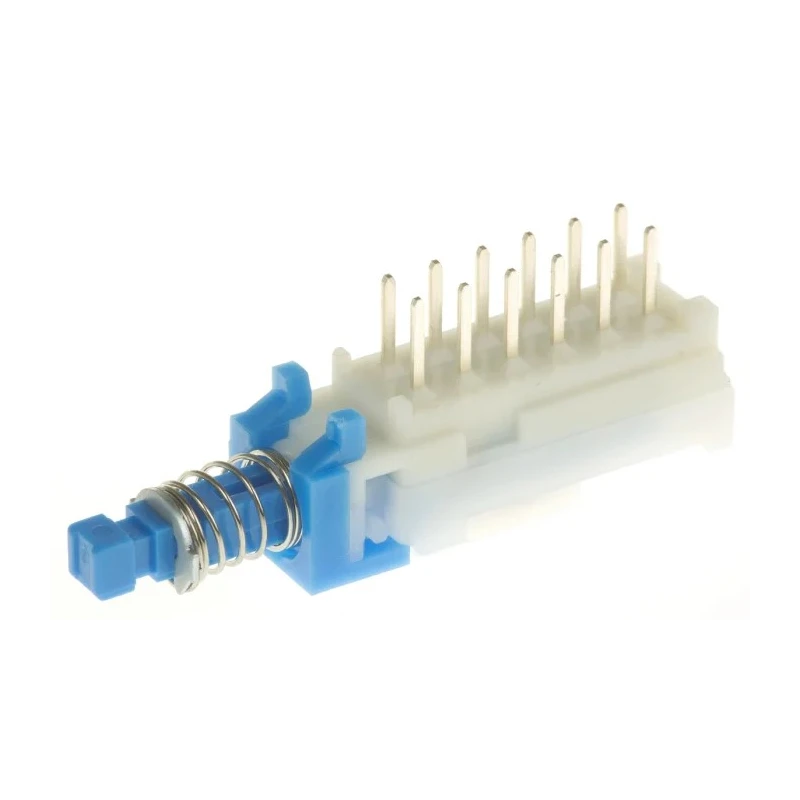

Alps Alpine SPUJ Series Latching Push Button Switch, PCB Mount, DPDT, Through Hole, 100mA Current SPUJ193700
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Alps Alpine |
| Model | SPUJ193700 |
| Mount Type | PCB |
| Series | SPUJ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | Latching |
| Switch Contact Current | 100mA |
Key Features
- Designed for through hole mounting on PCBs ensuring secure electrical connections.
- Features dual pole double throw (DPDT) contacts for versatile switching applications.
- Latching switch operation offers self-locking capability for stable switching states.
- Operates reliably within a temperature range of -40°C to 85°C, suitable for diverse environments.
- Rated for 100mA contact current at 30V DC, ensuring efficient low-current signal switching.
- Complies with RoHS standards enhancing environmental and user safety compliance.
- Manufactured in Japan, reflecting high-quality standards and precise manufacturing processes.
- Through hole terminal type facilitates easy and permanent PCB installation.
Product Description
Alps Alpine SPUJ193700 is a latching push button switch from the SPUJ Series, designed for PCB mounting with a DPDT contact configuration. It operates with a 100mA contact current rating at 30V DC and supports through hole terminal installation, making it ideal for stable and reliable switching on printed circuit boards.
This push button switch is designed for challenging environments with an operating temperature range from -40°C to 85°C. It is non-illuminated and complies with RoHS standards, ensuring low environmental impact and safety in automation and electrical control applications.
The SPUJ193700 model features a 2mm switch travel typical of the SPUJ series, with a robust build quality originating from Japan. Its compact physical dimensions of 32.5mm depth, 8.8mm height, and 7.5mm width make it suitable for compact PCB layouts and industrial electronic systems.
Applications include industrial automation, electrical equipment, consumer electronics, and other PCB-based control circuits where reliable switching is required. The latching function provides stable ON/OFF states, critical for durable and consistent performance.
Designed for through hole PCB mounting with secure connections. DPDT contacts enable versatile circuit control options. Latching operation for self-locking switch function. Wide operating temperature range from -40°C to 85°C.
Rated for 100mA switching at 30V DC. RoHS compliant for environmental and safety standards. Compact dimensions suitable for space-limited PCB designs. Manufactured in Japan ensuring high quality.
Choose Alps Alpine SPUJ193700 for high-quality, reliable Push Button Switch solutions suitable for demanding industrial and electronic applications. Explore more in the Electronics & Electricals category on EnvMart for compatible switches and components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a contact current of 100mA at 30V DC, making it suitable for low-current signal switching applications.
It is designed for through hole mounting on printed circuit boards (PCBs), ensuring secure electrical connections.
The Alps Alpine SPUJ193700 operates reliably within a temperature range of -40°C to 85°C, suitable for diverse environments.
This model features a dual pole double throw (DPDT) contact configuration, allowing for versatile switching applications.
Yes, it complies with RoHS standards, enhancing environmental and user safety compliance.
The switch has compact dimensions of 32.5mm depth, 8.8mm height, and 7.5mm width, making it suitable for space-limited PCB designs.
It utilizes a latching switch operation, providing a self-locking capability for stable ON/OFF states.
This model is manufactured in Japan, reflecting high-quality standards and precise manufacturing processes.
It is suitable for applications in industrial automation, electrical equipment, consumer electronics, and other PCB-based control circuits.
The switch features a typical travel of 2mm, which is standard for the SPUJ series.
It features a through hole terminal type, facilitating easy and permanent installation on PCBs.
This model is part of the SPUJ Series of push button switches from Alps Alpine.
