onsemi Optocoupler Surface Mount 6-Pin SOP, 20mA Input Current, 5000V Isolation Voltage FOD8480

Free Delivery in India | Lowest Global Shipping Charges

onsemi Optocoupler Surface Mount 6-Pin SOP, 20mA Input Current, 5000V Isolation Voltage FOD8480

Name: onsemi Optocoupler Surface Mount 6-Pin SOP, 20mA Input Current, 5000V Isolation Voltage FOD8480
Brand: onsemi
SKU: 104683



Category Optocoupler Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Model	FOD8480
Packaging	Tube or Tape and Reel
Mount Type	Surface
Series	FOD848x
Maximum Operating Temperature	100°C
Package Type	6-Pin SOP
Minimum Operating Temperature	-40°C
Maximum input current	20mA
Standards/Approvals	UL1577, 000 VACRMS for 1 Min., DIN-EN/IEC60747-5-5, 140 V Peak Working Insulation Voltage
Maximum Forward Voltage	0.8V
Number of Pins	6
Typical Rise Time	15ns
Typical Fall Time	10ns
Isolation Voltage	5000V

Key Features

Supports isolated digital communication to Intelligent Power Modules with high input-output isolation voltage.
Operates with a maximum input current of 20mA and a forward voltage of 0.8V.
Provides a typical rise time of 15ns and fall time of 10ns ensuring fast switching.
Designed for operating temperature range from -40°C to 100°C, suitable for harsh environments.
Features a totem pole, non-inverting logic output that does not require a pull-up resistor.
Meets UL1577 safety standard and DIN-EN/IEC60747-5-5 approvals with a 5000V isolation voltage.
Packaged in tube or tape and reel for versatile assembly options.

Product Description

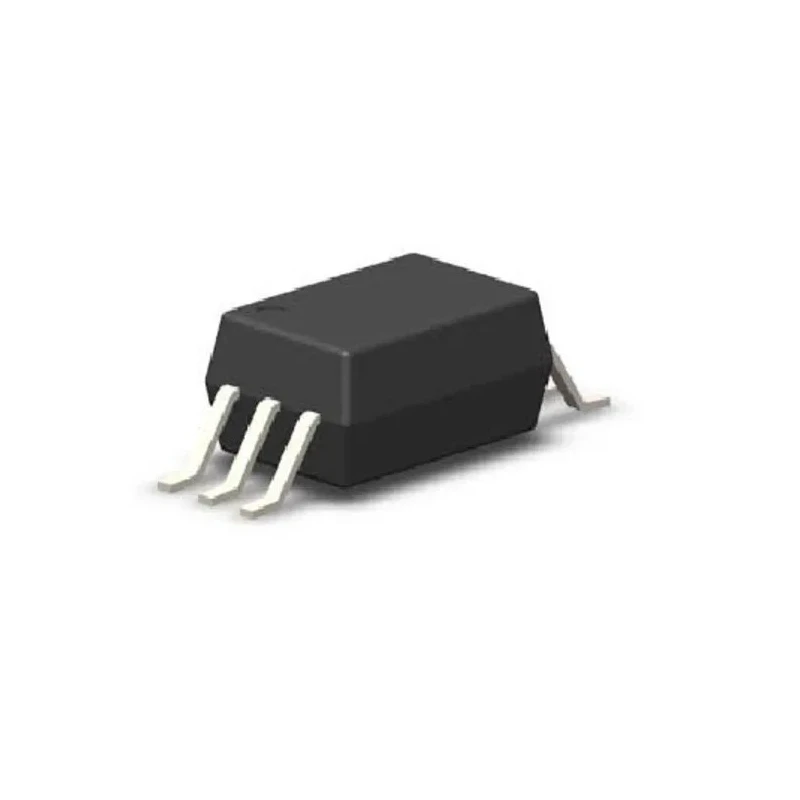

onsemi FOD8480 is a surface mount optocoupler in a 6-pin small outline plastic (SOP) package, designed for electrically isolating signal transfer in industrial and electronic systems.

This device integrates an aluminium gallium arsenide (AlGaAs) LED and a high gain photodetector with threshold hysteresis to achieve noise immunity and eliminate output signal chatter. It supports isolated interface communication to Intelligent Power Modules (IPM), transmitting digital control signals without ground loops or hazardous voltages.

The optocoupler provides a typical rise time of 15ns and fall time of 10ns, suitable for fast switching applications. It operates reliably across a wide temperature range of -40°C to 100°C, making it robust for industrial and commercial electronics environments.

With a maximum forward voltage of 0.8V and maximum input current of 20mA, the device efficiently handles input signals. The output logic is a non-inverting totem pole structure that simplifies circuit design by eliminating the need for an external pull-up resistor.

This component meets stringent safety and performance standards including UL1577 and DIN-EN/IEC60747-5-5, offering an isolation voltage rating of 5000V for enhanced electrical isolation and protection.

Supports isolated digital communication to Intelligent Power Modules. High gain photodetector with hysteresis ensures noise immunity. Totem pole output eliminates pull-up resistor requirement. Wide operating temperature range of -40°C to 100°C.

Complies with UL1577 and IEC standards for safety and performance. Available in tube or tape and reel packaging for flexible assembly.

This Optocoupler is ideal for use in industrial electronics, power module isolation, and communication interface applications requiring reliable signal transmission with high isolation and noise rejection. EnvMart offers the onsemi FOD8480 as part of a broad range of electronic components tailored for industrial and commercial uses.
