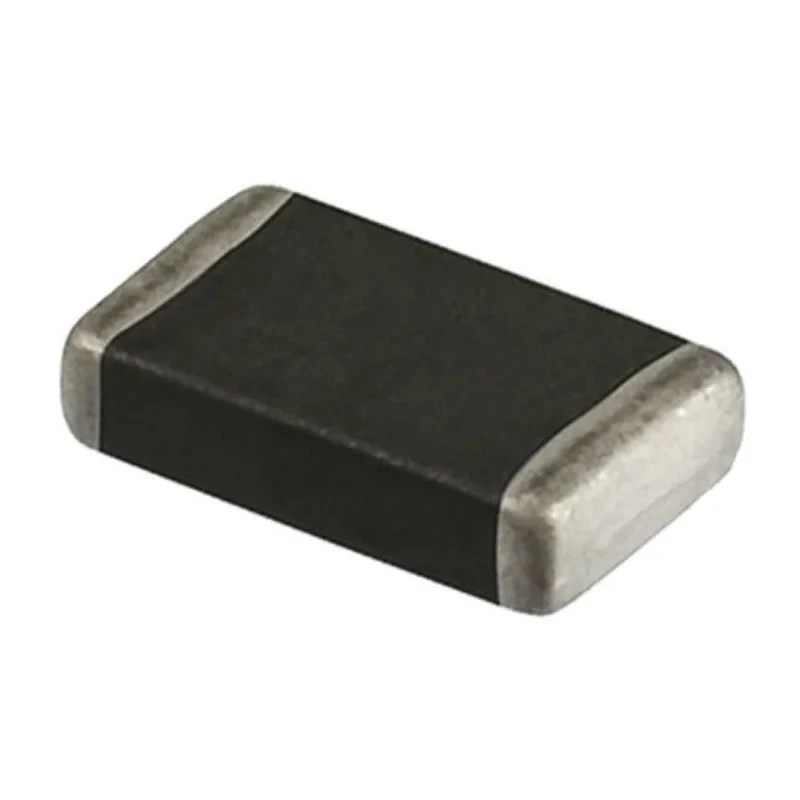

Wurth Elektronik 1-Element TVS Diode Surface Mount 0603 Package 12V Reverse Stand-off Voltage 82306120029
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 0.9mm |
| Length | 1.6mm |
| Width | 0.8mm |
| Mount Type | Surface |
| Series | WE-VE |
| Maximum Operating Temperature | 85°C |
| Package Type | 0603 |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB 2 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 30V |
| Diode Configuration | Single |
| Maximum Reverse Stand-off Voltage Vwm | 12V |
| Test Current It | 1A |
| Maximum Peak Pulse Current Ippm | 1A |
| Maximum Reverse Leakage Current | 10nA |
Key Features
- Single diode configuration designed for transient voltage suppression.
- Surface mount with a 0603 package type for PCB assembly.
- Maximum reverse stand-off voltage of 12 volts ensuring circuit protection.
- Clamping voltage of 30 volts for effective surge absorption.
- Operational temperature range from -40°C to 85°C for diverse environments.
- Rated for 1 amp test current and peak pulse current.
- Electrostatic discharge (ESD) protection ideal for USB 2.0, HDMI, and other interfaces.
- Compact dimensions of 1.6mm length, 0.8mm width, and 0.9mm height.
Product Description
Wurth Elektronik 82306120029 is a high-quality 1-element Transient Voltage Suppressor (TVS) diode designed for electrostatic discharge (ESD) protection in sensitive electronic circuits. This device comes in a compact 0603 surface mount package ensuring easy integration on printed circuit boards (PCBs). Featuring a maximum reverse stand-off voltage of 12V and a clamping voltage of 30V, it effectively protects circuits against voltage spikes and surges.
It supports a test current (It) and peak pulse current (Ippm) rating of 1 amp, accommodating transient events without damage. The operating temperature range from -40°C to 85°C makes it suitable for a wide spectrum of industrial, automotive, and consumer electronics applications. Dimensions of 1.6mm in length, 0.8mm in width, and 0.9mm in height enable compact design implementations.
This diode is optimized for ESD protection on interfaces such as USB 2.0, HDMI, DVI, Ethernet, Firewire, and serial bus connections, making it an essential component for protecting high-speed communication lines and sensitive circuitry.
Single diode configuration designed for transient voltage suppression. Surface mount 0603 package for standard PCB mounting. Maximum reverse stand-off voltage of 12 volts for circuit safety. Clamping voltage of 30 volts to absorb transient surges.
Operates reliably between -40°C and 85°C. Test current and peak pulse current ratings of 1 amp. Low leakage current ensuring minimal impact on circuit performance. Compact dimensions ideal for space-constrained applications.
This Wurth Elektronik TVS Diode belongs to the WE-VE series, known for ultra-low capacitance ESD protection solutions. It is essential for electrical and electronic designs that require robust transient voltage supression to enhance device longevity and reliability.
EnvMart offers this state-of-the-art diode as part of its comprehensive semiconductor catalog. Browse our Electronics & Electricals -> Semiconductor categories for more protective components and related products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse stand-off voltage of this diode is 12 volts, ensuring effective circuit protection against voltage spikes.
The clamping voltage for this TVS diode is 30 volts, which allows it to absorb transient surges effectively.
This diode operates reliably within a temperature range of -40°C to 85°C, making it suitable for various environments.
This model has compact dimensions of 1.6mm in length, 0.8mm in width, and 0.9mm in height, which is ideal for space-constrained applications.
The test current rating for this diode is 1 amp, accommodating transient events without damage.
It comes in a 0603 surface mount package type, designed for standard PCB assembly.
This model is optimized for ESD protection on interfaces such as USB 2.0, HDMI, DVI, Ethernet, Firewire, and serial bus connections.
This diode features a single element configuration, designed specifically for transient voltage suppression.
The maximum peak pulse current rating for this diode is also 1 amp, which allows it to handle transient events effectively.
The maximum reverse leakage current is 10nA, ensuring minimal impact on circuit performance.
This model belongs to the WE-VE series, known for ultra-low capacitance ESD protection solutions.
The country of origin for this diode is India.
