Infineon 8-Pin DIP 5-Channel PWM Controller 65 kHz Switching Frequency 27V Maximum Supply Voltage ICE3BR0665JXKLA1

Free Delivery in India | Lowest Global Shipping Charges

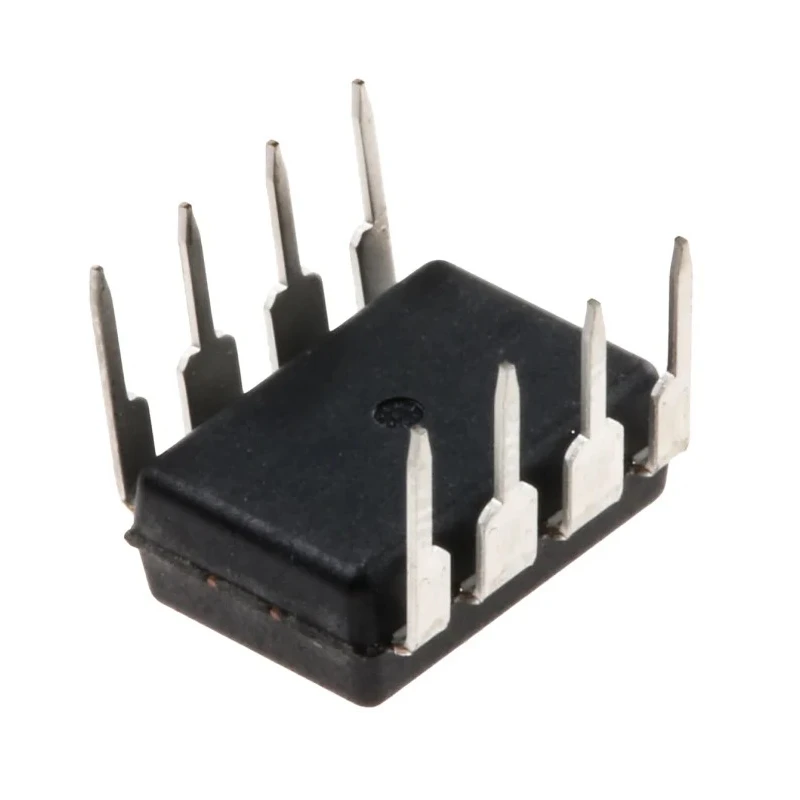

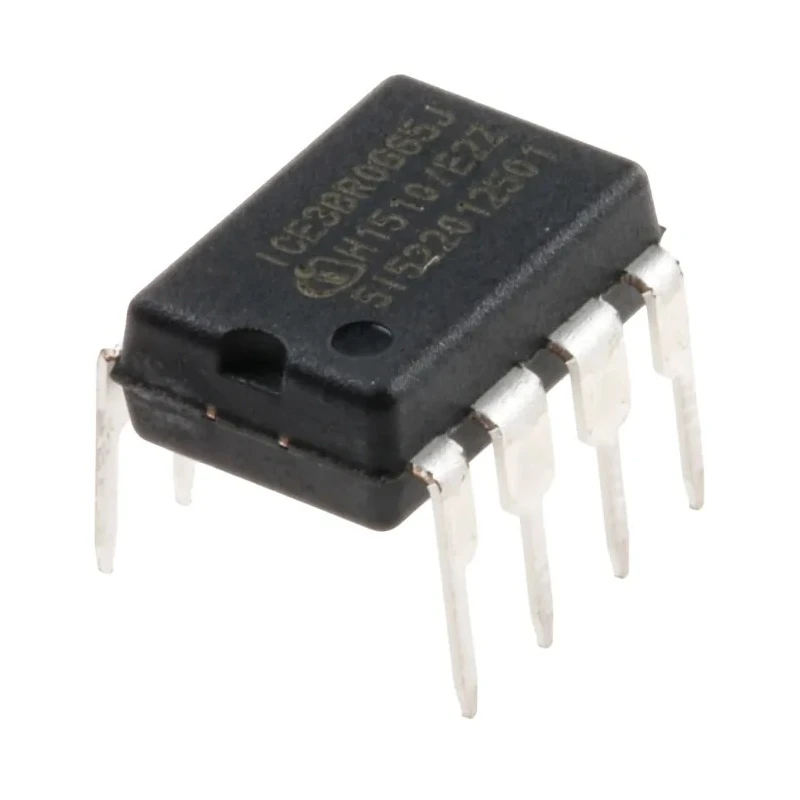

Infineon 8-Pin DIP 5-Channel PWM Controller 65 kHz Switching Frequency 27V Maximum Supply Voltage ICE3BR0665JXKLA1

Name: Infineon 8-Pin DIP 5-Channel PWM Controller 65 kHz Switching Frequency 27V Maximum Supply Voltage ICE3BR0665JXKLA1
Brand: Infineon
SKU: 104540
Price: 3.44 USD
Availability: InStock



Category Power Management ICs Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	4.8mm
Length	9.77mm
Model	ICE3BR0665JXKLA1
Width	6.6mm
Mount Type	Through Hole
Maximum Duty Cycle	75%
Series	ICE
Output Current	9.95A
Topology	Flyback
Maximum Operating Temperature	150°C
Package Type	DIP
Minimum Operating Temperature	-40°C
Number of outputs	5
Output Voltage	650V
Maximum Switching Frequency	65kHz
Pin Count	8
Maximum Supply Voltage	27V
Minimum Supply Voltage	-0.3V
Supply Current	2.3mA
Start-up Supply Current	1.5mA
PWM Controller Type	Current Mode

Key Features

Operates at a maximum switching frequency of 65 kHz ensuring rapid response.
Supports output voltage up to 650V and output current of 9.95A for robust applications.
Equipped with 5 outputs in an 8-pin DIP package for easy through-hole mounting.
Features current mode PWM control ideal for flyback topology power supplies.
Wide operating temperature range from -40°C to +150°C suitable for harsh environments.
Integrated soft start function to minimize inrush current on power-up.
Auto restart protection for overload and overtemperature conditions enhances safety.
Compact dimensions of 9.77 x 6.6 x 4.8 mm simplify PCB integration.

Product Description

Infineon ICE3BR0665JXKLA1 is a high-performance 5-channel PWM Controller housed in an 8-pin dual in-line package (DIP). It supports a maximum switching frequency of 65 kHz and maximum supply voltage of 27V, making it well-suited for current mode flyback power supply applications.

This device integrates a soft start feature to minimize inrush current, frequency jittering to lower electromagnetic interference, and auto restart protections for overload and overtemperature scenarios, thereby enhancing operational safety and reliability.

The PWM controller offers an output voltage capability of up to 650V and an output current of 9.95A, allowing it to efficiently manage power in off-line switched-mode power supplies (SMPS) such as those used in DVD players, set-top boxes, and automation systems.

Its robust design includes a wide operating temperature range from -40°C to +150°C, making it applicable for demanding industrial environments and automotive-related power management where durability and high temperature tolerance are required.

Featuring a through-hole DIP mounting style, the device is easy to integrate in both prototype and production printed circuit boards. Its compact size of approximately 9.77 mm in length, 6.6 mm in width, and 4.8 mm in height allows for space-efficient designs.

Operates with a maximum switching frequency of 65 kHz for efficient power conversion. Supports flyback topology, ideal for cost-effective SMPS designs. Soft start and frequency jittering features minimize EMI and inrush current.

Overload and overtemperature auto restart enhances system protection. Wide -40°C to +150°C temperature range supports industrial applications. 5 output channels support multi-output power supply needs. Through-hole 8-pin DIP package facilitates straightforward PCB integration.

Compact dimensions optimize board space usage. Ideal for use in consumer electronics, automation, and power adapters.

This Infineon PWM controller is a reliable component for various electronic power management applications requiring efficient switching, safety features, and compact form factor. Explore more Power Management ICs on EnvMart for diverse industrial and commercial needs.
