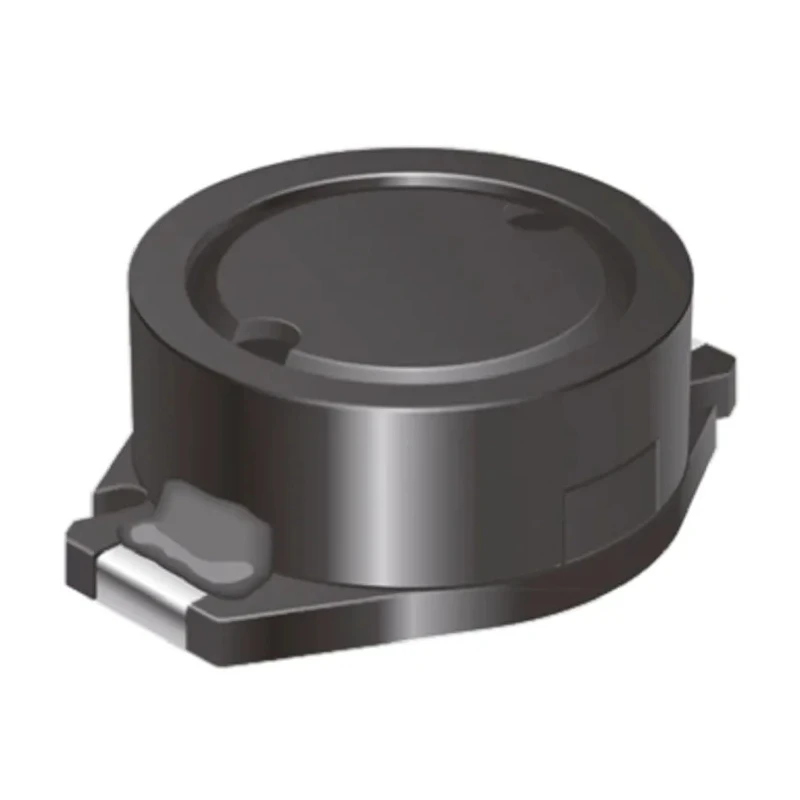

Bourns 1806 Shielded Surface Mount Inductor with Ferrite Core 33μH ±20% 2.5A Idc Q44 SRR1806
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 6.8mm |
| Length | 18.3mm |
| Model | SRR1806 |
| Depth | 14mm |
| Packaging | Reel |
| Series | SRR1806 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 33μH |
| Standards/Approvals | RoHS, JEDEC |
| Package/Case | 1806 |
| Maximum DC Current | 2.5A |
| Maximum DC Resistance | 83mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 10MHz |
| Minimum Quality Factor | 44 |
| Inductor Construction | Wirewound |
Key Features
- Compact 1806 package suitable for space-constrained designs.
- Magnetically shielded to reduce electromagnetic interference.
- Wirewound construction ensuring high reliability and stability.
- Operating temperature range from -40°C to 125°C.
- Low DC resistance of 83mΩ for efficient power delivery.
- Suitable for input/output stages of DC/DC converters and power supplies.
- Complies with RoHS and JEDEC standards for quality assurance.
- Packaged on a reel facilitating efficient manufacturing processes.
Product Description
Bourns SRR1806 shielded surface mount inductor is a 33 μH ±20% wirewound component with a ferrite core designed for high performance in compact electronic circuits. It features a low-profile 1806 case measuring 18.3mm in length, 6.8mm in height, and 14mm in depth, optimized for surface mounting and automated assembly lines.
This inductor supports a maximum DC current of 2.5A with a maximum DC resistance of 83mΩ, ensuring efficient power management in electronic devices. It operates within a temperature range from -40°C to 125°C and meets RoHS and JEDEC standards, making it suitable for diverse industrial and commercial electronics applications.
The magnetic shielding of the SRR1806 reduces electromagnetic interference, critical for sensitive communications equipment such as portable communication devices, camcorders, LCD TVs, and car radios. The inductor's high quality factor of 44 and self-resonant frequency of 10 MHz supports stable operation in power supply circuits, including DC/DC converters.
The ferrite core construction and wirewound design provide durability and consistent inductance characteristics. It is supplied on a reel to facilitate integration into automated manufacturing processes, improving production efficiency and component handling.
Compact 1806 package suitable for space-constrained designs. Magnetically shielded to reduce electromagnetic interference. Wirewound construction ensuring high reliability and stability. Operating temperature range from -40°C to 125°C.
Low DC resistance of 83mΩ for efficient power delivery. Suitable for input/output stages of DC/DC converters and power supplies. Complies with RoHS and JEDEC standards for quality assurance. Packaged on a reel facilitating efficient manufacturing processes.
Ideal for industrial, telecommunications, consumer electronics, and automotive electronics applications, the Bourns SRR1806 inductor enables improved power management and EMI reduction in sensitive electronic circuits. Browse more Surface Mount Inductors and electronic components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 33μH with a tolerance of ±20%.
This inductor supports a maximum DC current of 2.5A.
The dimensions of this inductor are 18.3mm in length, 6.8mm in height, and 14mm in depth.
It operates within a temperature range from -40°C to 125°C.
This model features a wirewound construction with a ferrite core.
The magnetic shielding reduces electromagnetic interference, making it suitable for sensitive applications such as communication devices and LCD TVs.
The maximum DC resistance is 83mΩ, which contributes to efficient power delivery.
The maximum self-resonant frequency for this inductor is 10 MHz.
It complies with RoHS and JEDEC standards for quality assurance.
This inductor is suitable for input/output stages of DC/DC converters and power supplies, as well as various industrial and consumer electronics applications.
It is packaged on a reel to facilitate efficient integration into automated manufacturing processes.
The minimum quality factor of the SRR1806 is 44, supporting stable operation in power supply circuits.
