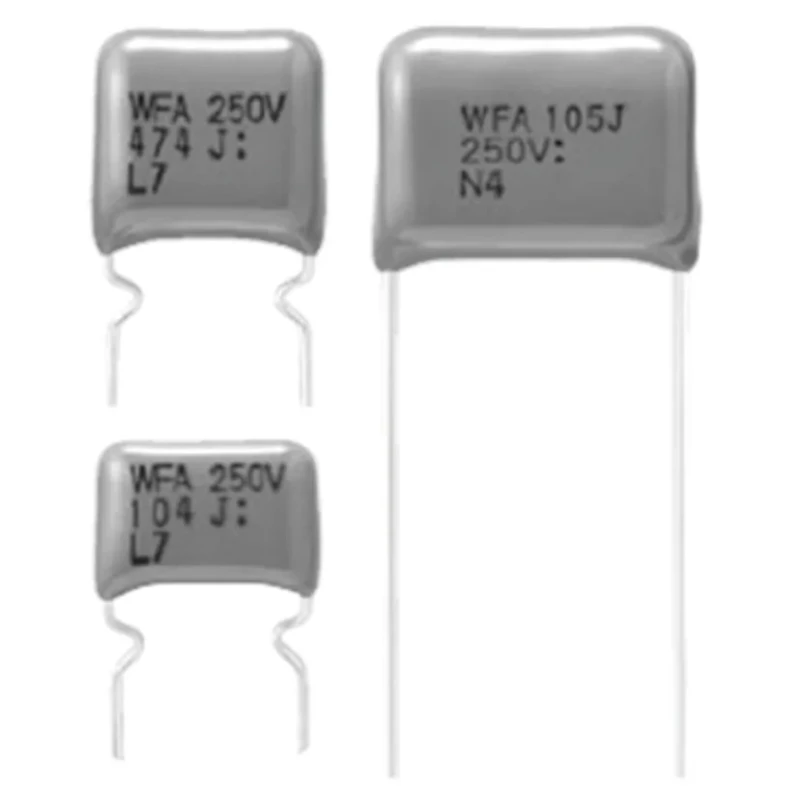

Panasonic ECWF(A) Film Capacitor ±5% 220nF 250 V dc Through Hole ECWF2224JAQ

Panasonic ECWF2224JAQ film capacitor is a high-performance metallised polypropylene capacitor featuring ±5% capacitance tolerance, a capacitance of 220nF, and a rated DC voltage of 250 V dc. This through hole mount capacitor is designed for environments requiring high current and high frequency operation, making it ideal for active filter circuits and demanding electronic applications.

The capacitor supports a broad operating temperature range from -40°C to 105°C and incorporates a low dissipation factor of 0.1%, which minimizes power loss during operation. Its compact size, smaller than similar ECQE(H) and ECWF(S) series capacitors, ensures ease of integration on compact printed circuit boards.

The ECWF2224JAQ is encapsulated with UL94V-0 rated self-extinguishing resin, enhancing safety and reliability in industrial and automotive electronics. It conforms to the stringent AEC-Q200 automotive standard, ensuring robust operation under automotive conditions. This capacitors' lead pitch is 10 mm with a lead diameter of 0.6 mm, providing secure and reliable through hole connections.

Typical applications include high current and high frequency circuits such as power supplies, active filters, and high-frequency amplifiers. The capacitor excels in providing low noise and stable performance, essential for precision electronic systems.

Panasonic's advanced safety construction technology used in this capacitor offers low noise, low loss, and a compact footprint, contributing to energy-efficient and reliable electronics design across industrial, automotive, and commercial sectors.

Compact metallised polypropylene Film Capacitor designed for high frequency and high current applications. Rated for operation between -40°C to 105°C temperatures. Features low dissipation factor of 0.1% ensuring energy efficiency.

Encapsulated in UL94V-0 self-extinguishing material for enhanced safety. Complies with automotive standard AEC-Q200 for reliability. Lead pitch measures 10 mm with 0.6 mm lead diameter terminals. Dimensions are 19.9 mm height, 13 mm length, and 6.3 mm width for compact PCB integration.

Suitable for active filter circuits and high frequency, high current applications. Explore our Electronics Components catalog for more high-quality capacitors and related products designed to meet rigorous industrial and commercial standards.
