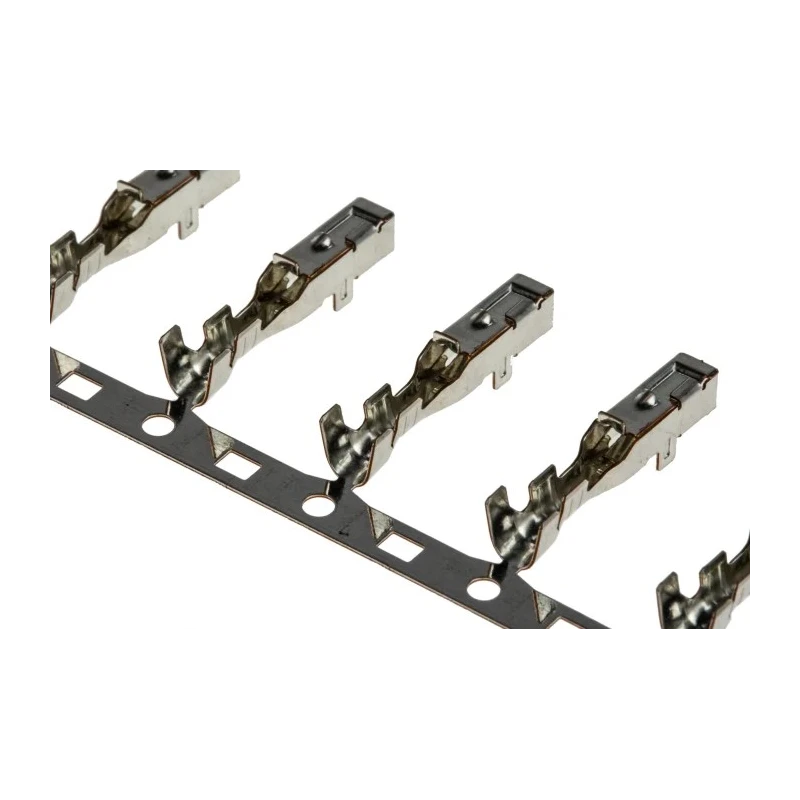

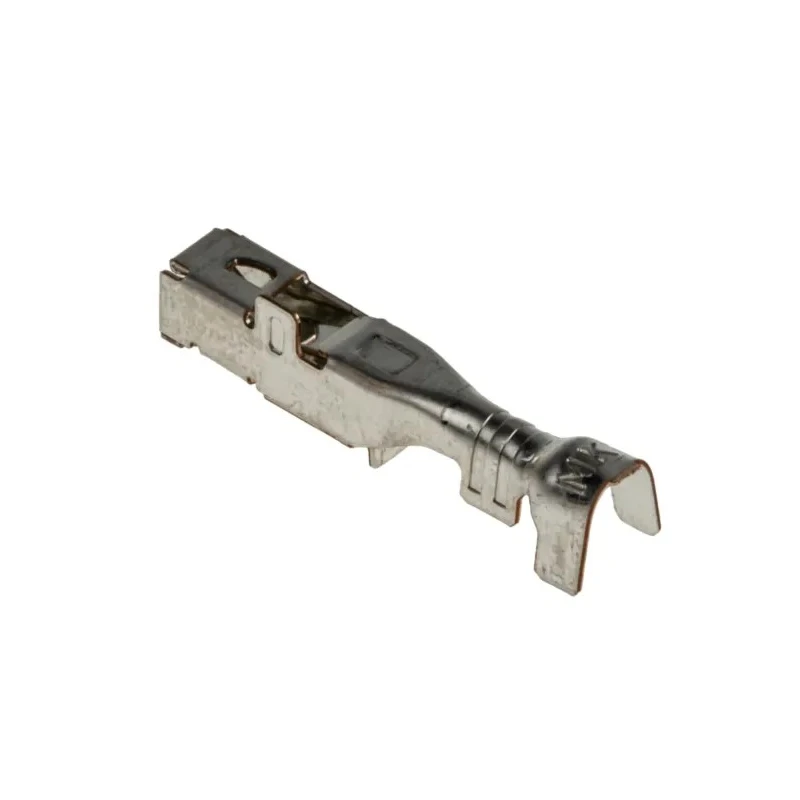

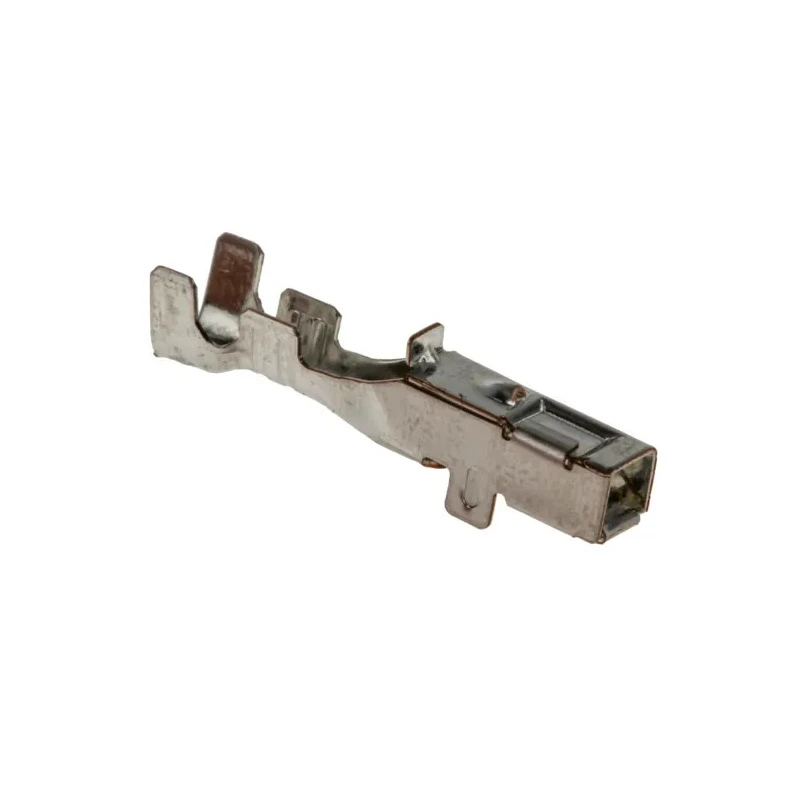

Molex Female Crimp Terminal for 22 AWG to 20 AWG Wire Size, Tin Plating, Phosphor Bronze Contact Material 50420-8000
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | Molex |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 50420 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| For Use With | OBD-II Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 100mΩ |
Key Features
- Suitable for OBD-II connector housings ensuring secure wire connections.
- Constructed from phosphor bronze for excellent conductivity and durability.
- Tin-plated contacts provide corrosion resistance and ease of crimping.
- Supports a wire size range from 22 AWG (minimum) to 20 AWG (maximum).
- Crimp termination enables quick and solder-free installation.
- Operating temperature range from -40°C to 85°C.
- Maximum contact resistance of 100 milliohms ensures efficient signal transmission.
- Ideal for automotive industry applications including vehicle monitoring and diagnostics.
Product Description
Molex 50420-8000 female crimp terminal is engineered for reliable and durable wire connections within the automotive and industrial sectors. This crimp terminal is designed to fit OBD-II connector housings, supporting wire sizes ranging from 22 to 20 AWG, making it versatile for multiple wiring needs.
Made with high-quality phosphor bronze contact material, the terminal offers excellent electrical conductivity and resilience against wear. The tin plating on contact surfaces enhances corrosion resistance and facilitates easy, solder-free crimp termination. The ribbed metal arms grip wires securely to maintain stable electrical connections in critical vehicle systems.
This terminal operates efficiently within a temperature range of -40°C to 85°C, suitable for harsh automotive environments. Its maximum contact resistance is specified at 100 milliohms ensuring low signal loss. The crimp connection design supports quick installation and maintenance in automotive powertrain and safety monitoring circuits.
Applications include automotive diagnostics, vehicle monitoring, industrial automation, and other electronic control systems requiring dependable wire terminal connections. The terminal is manufactured in the Republic of Korea, ensuring compliance with high manufacturing standards.
Suitable for OBD-II series connector housings, including Molex 16-way flange-mount receptacles. Phosphor bronze contact provides durability and excellent conductivity. Tin plating ensures corrosion-resistant and reliable connections.
Supports wire sizes from 22 AWG minimum to 20 AWG maximum. Crimp termination type for solder-free installation. Operates between -40°C and 85°C for automotive and industrial environments. Maximum contact resistance is 100 milliohms for connectivity efficiency.
Designed for automotive, vehicle monitoring, and industrial automation usage. Explore the Molex range of high-quality crimp terminals and connectors at EnvMart for your electronic and automotive assembly needs.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This female crimp terminal supports wire sizes ranging from 22 AWG (minimum) to 20 AWG (maximum).
The contacts are made from phosphor bronze, which provides excellent conductivity and durability.
The maximum operating temperature for this terminal is 85°C.
This terminal utilizes a crimp termination type, allowing for quick and solder-free installation.
The maximum contact resistance is specified at 100 milliohms, ensuring efficient signal transmission.
It is commonly used in automotive diagnostics, vehicle monitoring, and industrial automation applications.
This crimp terminal is manufactured in Korea.
The minimum operating temperature is -40°C, making it suitable for harsh environments.
This terminal is designed for use with OBD-II connector housings, including Molex 16-way flange-mount receptacles.
The contacts are tin-plated, providing corrosion resistance and facilitating easy crimping.
The minimum wire size that this terminal can accommodate is 0.3 mm².
The maximum wire size for this terminal is 0.8 mm².
