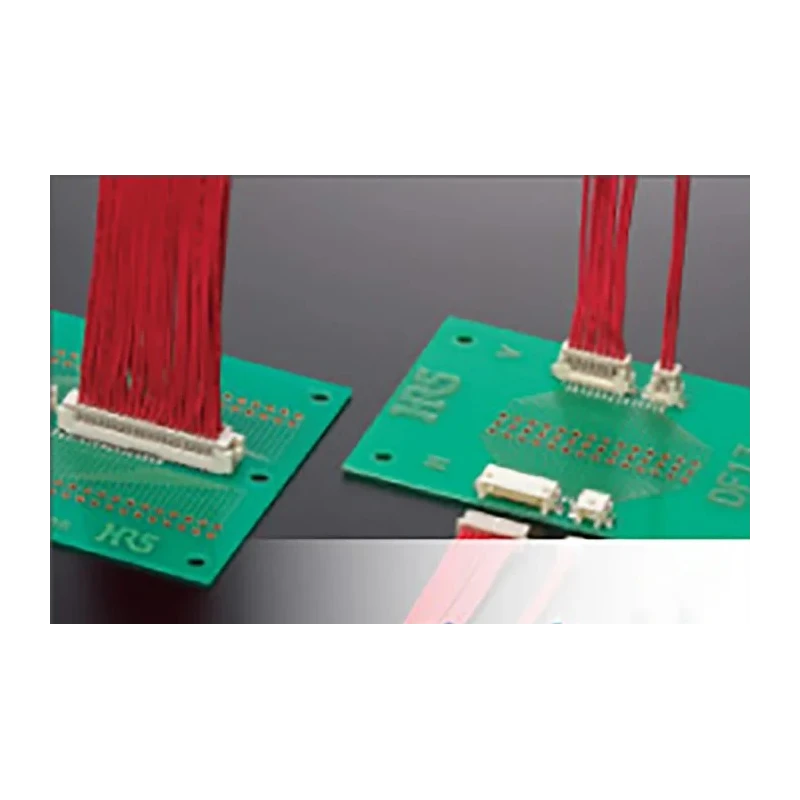

Hirose DF13 Series Straight Surface PCB Header 2 Contacts 1.25 mm Pitch 1 Row Shrouded

Hirose DF13C-2P-1.25V(51) is a Surface Mount PCB Header designed for high-precision and compact electronic applications. This straight, shrouded connector from the DF13 Series features 2 gold-plated brass contacts with a 1.25 mm pitch and single row configuration, offering reliable wire-to-board connections at a voltage rating of 150V and current rating of 1A.

The polyamide housing provides excellent insulation and mechanical durability, while the shrouded design protects contacts against mechanical stress and accidental short circuits. Its surface mount termination type allows for efficient soldering on PCB surfaces, making it ideal for automated assembly processes.

Operating reliably between -35°C and 85°C, this connector supports demanding industrial and commercial electronics such as industrial control systems, communication devices, instrumentation, and consumer electronics where space-saving and signal integrity are essential.

Key features include a male contact gender for compatibility, straight orientation for simple PCB layout, and a robust construction that meets rigorous quality standards. This connector is manufactured in Japan, reflecting high craftsmanship and quality assurance.

Engineers and designers will find this connector suitable for applications requiring compactness, precision pitch, and durable connections. It is commonly used in electronic manufacturing, testing equipment, and embedded system designs that demand reliable interconnect solutions.

Compact 1.25 mm pitch suitable for miniature PCB applications. Features 2 gold-plated brass contacts for reliable electrical connection. Shrouded design ensures robust contact protection and alignment. Surface mount type with straight orientation for easy PCB surface mounting.

Constructed with durable polyamide housing material for enhanced insulation. Supports current rating up to 1 ampere and voltage rating of 150 volts. Operating temperature range from -35°C to 85°C for diverse environments.

Termination by soldering ensures secure and stable physical connection. Male contact gender designed to mate with appropriate female connectors. Explore more PCB connectors and headers in EnvMart's Electronics Components category for optimized electronic assembly solutions.
