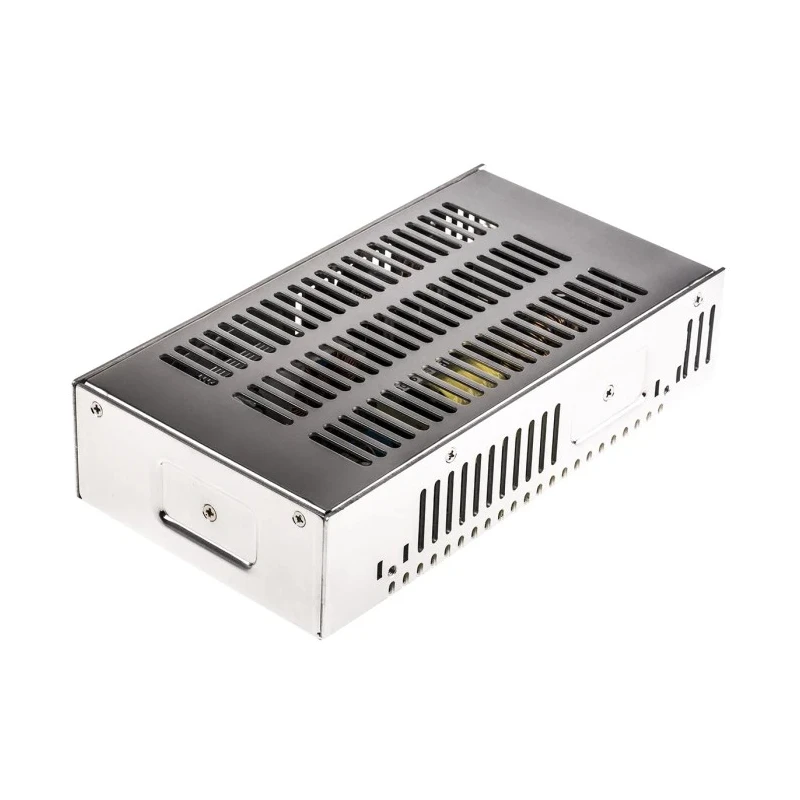

MEAN WELL SPV-150-24 Switching Power Supply 24V DC 150W Chassis Mount Programmable Output Voltage SPV-150-24
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Power | 150W |
| Efficiency | 83% |
| Length | 215mm |
| Model | SPV-150-24 |
| Depth | 50mm |
| Gross Weight | 1.1kg |
| Width | 115mm |
| Mount Type | Chassis |
| Series | SPV-150 |
| Maximum Operating Temperature | 65°C |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Protections | Short circuit, Overload, Over voltage, Over temperature |
| Maximum Output Voltage | 24V dc |
| SMPS Output Current | 6.25A |
| Minimum Input Voltage | 88V ac |
Key Features
- Equipped with built-in active power factor correction (PFC) achieving power factor over 0.95.
- Supports output current of 6.25A with high efficiency of 83% to reduce energy loss.
- Programmable output voltage adjustable from 20% to 110% using an external 1 to 5.5V DC control signal.
- Protected against short circuit, overload, over voltage, and over temperature conditions.
- Designed for universal AC input voltage ranging from 88V AC to 264V AC and DC input up to 370V DC.
- Compact chassis mount form with dimensions 215mm (L) x 115mm (W) x 50mm (D) and weight of 1.1 kg.
- Operational temperature range from -20°C to 65°C for reliable performance in varied environments.
- Ideal for LCD panel burn-in systems, IC test equipment, factory automation, and mechanical industries.
Product Description
MEAN WELL SPV-150-24 is a high frequency, single output switching power supply that provides a stable 24V DC output at 150W power with a chassis mount configuration. It includes a programmable output voltage feature allowing adjustment from 20% to 110% of the rated voltage via an external 1 to 5.5V DC control signal, enhancing flexibility for diverse industrial systems.
The power supply incorporates a built-in active power factor correction (PFC) circuit to maintain a power factor greater than 0.95, ensuring energy efficiency and compliance with power regulations. It operates efficiently with an 83% efficiency rating, minimizing power loss and heating.
Designed for durability and safety, the SPV-150-24 offers comprehensive protections including short circuit, overload, over voltage, and over temperature safeguards, improving device longevity and user safety. It supports a wide input voltage range from 88V AC up to 264V AC and can also accept up to 370V DC input, making it suitable for various electrical supply environments.
With compact dimensions of 215mm length, 115mm width, and 50mm depth, and weighing 1.1 kg, this power supply is easily incorporated into industrial and manufacturing equipment. It is cooled by free air convection without the need for additional fans, enhancing reliability.
This power supply series complies with multiple international safety standards including UL 62368-1, EN 62368-1, CSA C22.2 No. 62368-1, TUV, and others, ensuring safe operation in industrial and commercial environments.
Built-in active PFC function with power factor > 0.95. Short circuit, overload, over voltage, and over temperature protections. Adjustable output voltage programmable by external control signal. Universal AC input and wide DC input voltage compatibility.
High efficiency design with 83% efficiency. Chassis mount type with compact size and light weight. Suitable for industrial automation, testing equipment, and LCD panel burn-in systems.
MEAN WELL offers a highly reliable and versatile solution in the SPV-150-24 switching power supply, suited for various demanding industrial and commercial power conversion applications. Browse the range of MEAN WELL power supplies and accessories on EnvMart for tailored solutions.
Explore more products in our Switching Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SPV-150-24 provides an output power of 150W.
The maximum output voltage of this model is 24V DC.
This power supply has an efficiency rating of 83%.
The dimensions of this chassis mount power supply are 215mm in length, 115mm in width, and 50mm in depth.
This model includes protections against short circuit, overload, over voltage, and over temperature conditions.
The operational temperature range for this power supply is from -20°C to 65°C.
The weight of this power supply is 1.1 kg.
The output current of this model is 6.25A.
Yes, the output voltage is programmable and can be adjusted from 20% to 110% using an external 1 to 5.5V DC control signal.
The country of origin for this power supply is India.
This power supply features a chassis mount configuration.
