Recom Switching Power Supply 5V DC 4W 305V AC PCB Mount with 800mA Output RAC04-05SGA

Free Delivery in India | Lowest Global Shipping Charges

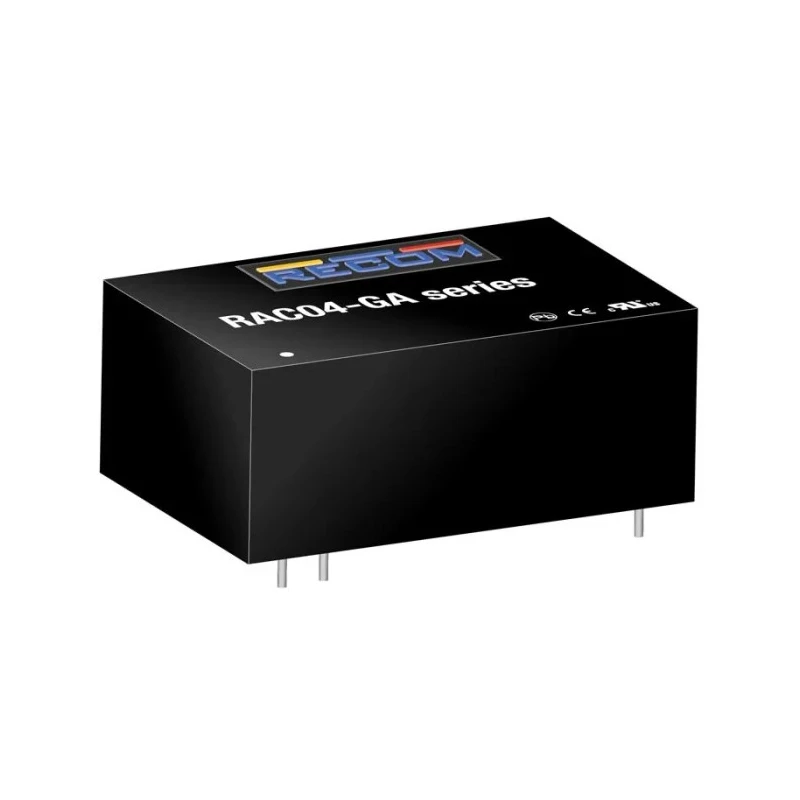

Recom Switching Power Supply 5V DC 4W 305V AC PCB Mount with 800mA Output RAC04-05SGA

Name: Recom Switching Power Supply 5V DC 4W 305V AC PCB Mount with 800mA Output RAC04-05SGA
Brand: Recom
SKU: 211202



Category Switching Power Supplies Brand Recom Condition New

Specifications

Country of Origin	China
Brand	Recom
Power	4W
Efficiency	72%
Length	37mm
Model	RAC04-05SGA
Depth	15mm
Gross Weight	20g
Width	24mm
Mount Type	PCB
Series	RAC04-GA
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	305V ac
Standards/Approvals	UL 60950-1, CAN/CSA C22.2 No. 60950-1-07, EN 55022 Class A, EN 55024, EN 60950-1, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60950-1, RoHS
Maximum Output Voltage	5V dc
SMPS Output Current	800mA

Key Features

Compact dimensions of 37 mm length, 24 mm width, and 15 mm depth allow space-saving installation.
High efficiency of 72% reduces power loss and heat generation.
Operating temperature range from -40°C to 70°C ensures reliable performance in harsh environments.
Encapsulated design minimizes electrical noise and interference for stable operation.
Provides a regulated and short-circuit-proof output current of 800 mA.
Easy PCB mounting with 0.05 mm connector pins for direct board installation.
Certified to multiple international standards including UL 60950-1 and EN 55022 Class A.
Suitable for industrial applications including computer development, networking, security, and manufacturing equipment.

Product Description

Recom RAC04-05SGA switching power supply offers a reliable and efficient solution for converting 85 to 305 Volt AC input into a regulated 5 Volt DC output with a power rating of 4 Watts. With a single output providing 800 mA current, this PCB mount device is designed for compact industrial installations.

The device features a robust encapsulated construction that effectively reduces electromagnetic interference and electrical noise, making it ideal for sensitive electronic systems. Its compact footprint measuring 37 mm length, 24 mm width, and 15 mm height provides easy integration into space-constrained environments.

Operating across a wide temperature range from -40°C up to 70°C, this power supply is suited for demanding industrial and commercial environments. It incorporates a Class A FCC Part 15 EMC filter and complies with international safety and electromagnetic compatibility standards including UL, CAN/CSA, and IEC approvals.

Compact PCB mount switching power supply with universal AC input range of 85-305V. Encapsulated design enhances noise suppression and product longevity. Delivers a stable 5V DC output with maximum current of 800 mA and power of 4W.

Suitable for industrial automation, networking, security systems, and computer hardware. Wide operating temperature range from -40°C minimum to 70°C maximum. Compliance with multiple major international safety and EMC standards.

Dimensions 37 mm (L) x 24 mm (W) x 15 mm (D) for compact spaces. Quick startup time of 30 ms for rapid power availability after switching on. Efficiency of 72% reduces energy consumption and thermal load.

This switching power supply is ideal for applications including computer development platforms, networking equipment, manufacturing facilities, and security apparatus. Its rugged design and broad input voltage tolerance combined with international certifications make it a dependable choice for industrial use.

Recom products are engineered for performance and safety, and the RAC04-05SGA model comes with a three-year warranty for added confidence. Explore additional Switching Power Supplies from Recom in the EnvMart catalog to find compatible components for your specific requirements.
