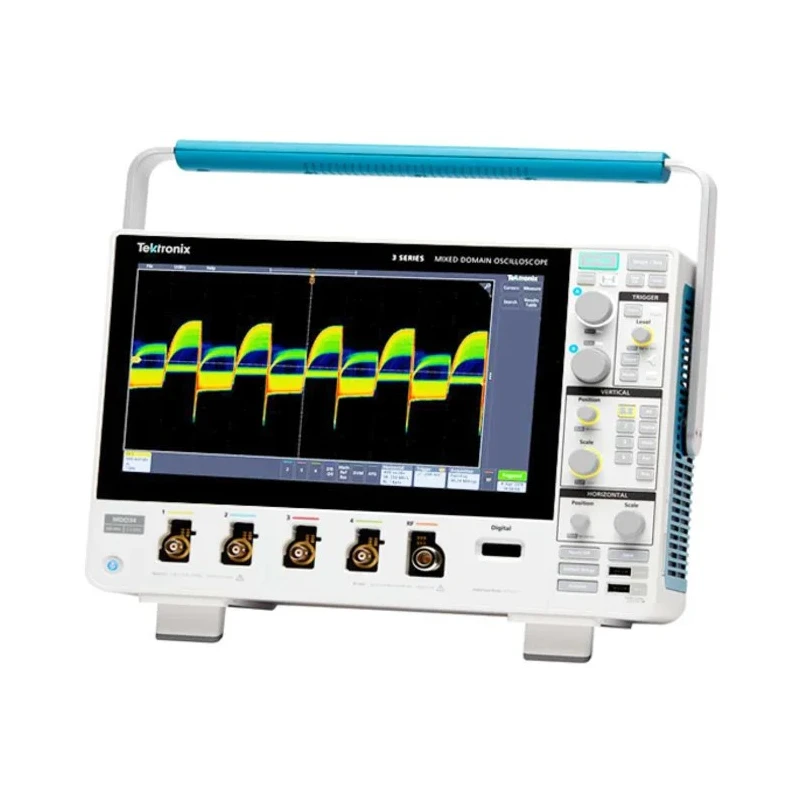

Tektronix 3 Series MDO Mixed Domain Bench Oscilloscope 350 MHz Bandwidth, 16 Channels, 11.6 in TFT LCD MDO34 3-BW-350

Tektronix MDO34 3-BW-350 is a 3 Series MDO Mixed Domain Bench Oscilloscope designed for advanced industrial, laboratory, and electronic testing applications. Featuring a 350 MHz bandwidth and 16 channels, it delivers reliable and high-precision signal analysis, making it ideal for RF, IoT baseband, and EMI testing. The large 11.6-inch TFT LCD capacitive touchscreen facilitates intuitive operation and visualization of complex waveforms.

With a sampling rate of up to 5 GS/s per analog channel and a memory depth of 10 million points, this oscilloscope captures high-fidelity signals with fast refresh rates of 280,000 waveforms per second. Its integrated 1 GHz Spectrum Analyser allows simultaneous time and frequency domain analysis, enhancing diagnostic capabilities for complex signals.

The instrument supports diverse serial bus decode and trigger options, including CAN, IIC, LIN, RS-232, RS-422, RS-485, SPI, UART, and USB interfaces. It features an 8-bit vertical resolution with a minimum time base of 1 ns/div and a rise time of 1.14 ns, ensuring accurate signal representation across various test scenarios.

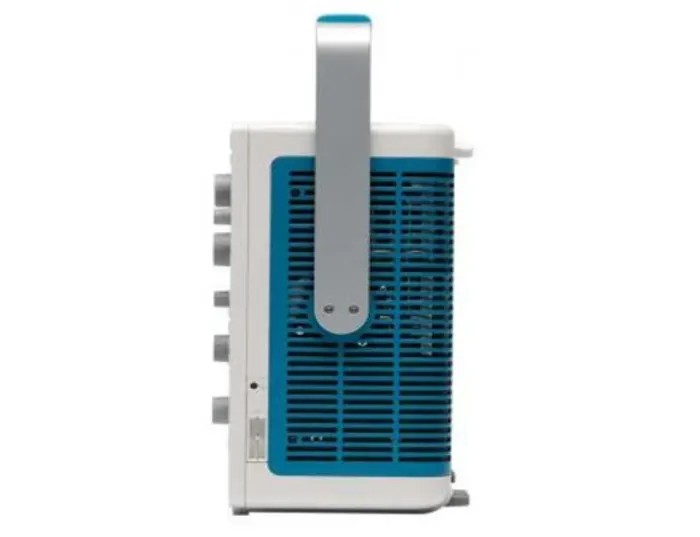

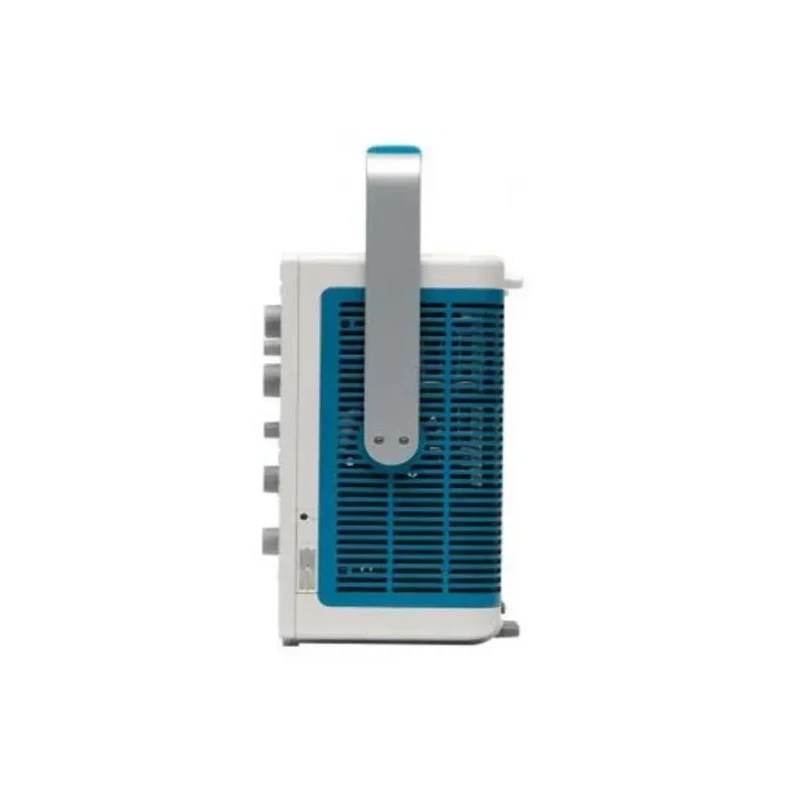

Additional features include dozens of automated measurements, extensive upgradeability with bandwidth and software options, and improved low-level signal measurement accuracy by up to 40%. The oscilloscope is mains powered and housed in a compact form factor with dimensions of 252 mm height, 148.6 mm width, and 148.6 mm depth. It is manufactured in China.

Equipped with 16 channels for comprehensive waveform monitoring. Features a high definition 11.6-inch capacitive touchscreen display for clear visualization. Provides 350 MHz bandwidth suitable for high-frequency signal analysis.

Offers up to 5 GS/s sample rate on each analog channel for accurate signal sampling. Includes built-in 1GHz Spectrum Analyser for combined time and frequency domain analysis. Supports multiple interface types including CAN, IIC, LIN, RS-232, RS-422, RS-485, SPI, UART, and USB.

Memory depth of 10Mpts enables detailed capture and analysis of waveforms. Provides 280,000 waveform refresh rate per second for rapid signal updates. Improved low-level signal measurement accuracy by up to 40% for precise diagnostics.

Upgradeable options include bandwidth, spectrum analyser frequency, digital channels, and advanced analysis software.

This oscilloscope is well-suited for applications in industrial manufacturing, research laboratories, telecommunications, automotive diagnostics, aerospace engineering, and educational institutions. Its comprehensive feature set and modular upgrade options enable users to tailor the instrument for precise and diverse measurement tasks.
