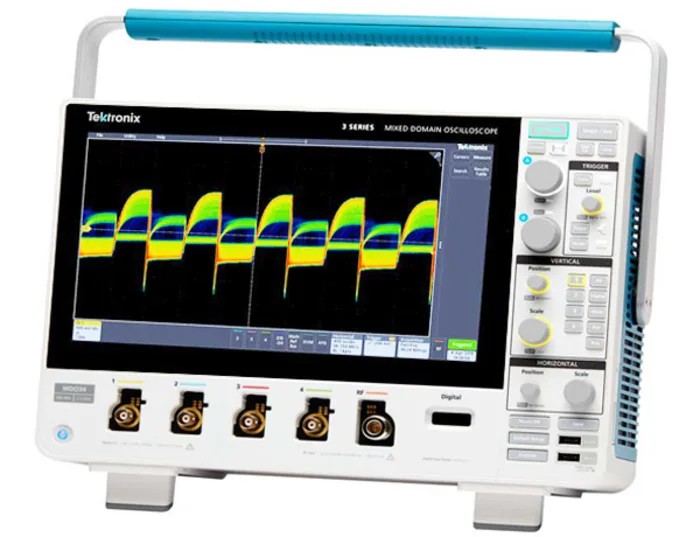

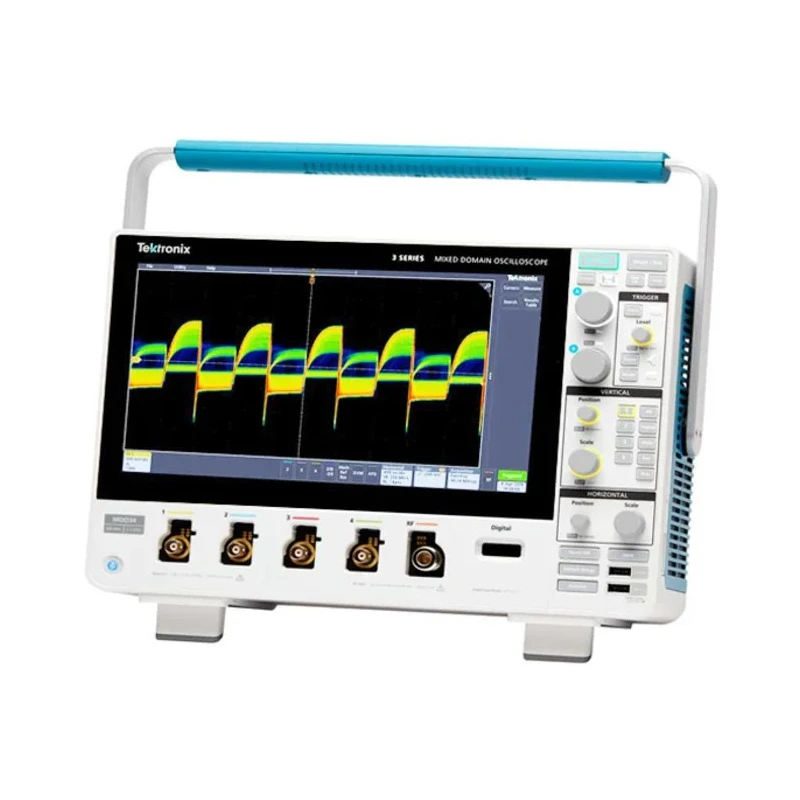

Tektronix 3 Series MDO Mixed Domain Bench Oscilloscope 100 MHz Bandwidth 16 Channels MDO32 3-BW-100

Tektronix MDO32 3-BW-100 is a 3 Series mixed domain bench oscilloscope delivering 100 MHz bandwidth and 16 channels, designed for precise electrical signal analysis and testing in industrial, laboratory, and manufacturing environments. Featuring an 11.6-inch HD capacitive touchscreen TFT LCD, it provides intuitive operation and superior waveform visualization. The oscilloscope supports multiple digital interfaces including CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, and USB, enabling connectivity with a wide range of devices.

This innovative device offers a memory depth of 10 Mpts allowing detailed waveform capture, and a waveform refresh rate of 280,000 per second guarantees accurate measurement of complex signals. It excels in low-level signal accuracy improved by 40% and includes over 125 trigger combinations to accommodate various testing scenarios.

Notably, the MDO32 integrates a 1 GHz spectrum analyzer for advanced RF testing and EMI sniffing with industry-leading probe performance. Optional upgrades include bandwidth extension up to 3 GHz, 16 digital MSO channels, a 50 MHz arbitrary/function generator, and diverse software tailored to power, automotive, aerospace, and security applications. It also supports remote-hybrid learning through TekScope™ software and collaborative workspace TekDrive.

The robust bench design with dimensions 370 mm wide, 252 mm tall, and 148.6 mm deep ensures adaptability on laboratory and manufacturing workbenches. This new condition product is made in China and supports comprehensive industrial, laboratory, HVAC, and telecommunications testing requirements.

Features an 11.6-inch capacitive touchscreen TFT LCD display for clear visualization. Supports mixed domain operation combining analog and digital signal analysis. Provides high memory depth of 10Mpts for extensive waveform capture.

Includes versatile digital interfaces such as CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, and USB. Offers a waveform refresh rate of up to 280,000 per second for fast and accurate data acquisition. Designed with user-configurable serial bus decode and trigger options for various protocols.

Equipped with an integrated 1 GHz Spectrum Analyzer for superior RF testing. Upgradeable options for bandwidth, digital channels, arbitrary/function generators, and advanced analysis software. Housed in a compact bench form factor measuring 370 mm width, 252 mm height, and 148.6 mm depth.

This oscilloscope is essential for high precision electronic design, verification, and troubleshooting across industrial, laboratory, and manufacturing sectors. See EnvMart for more Tektronix Oscilloscopes and test equipment.
