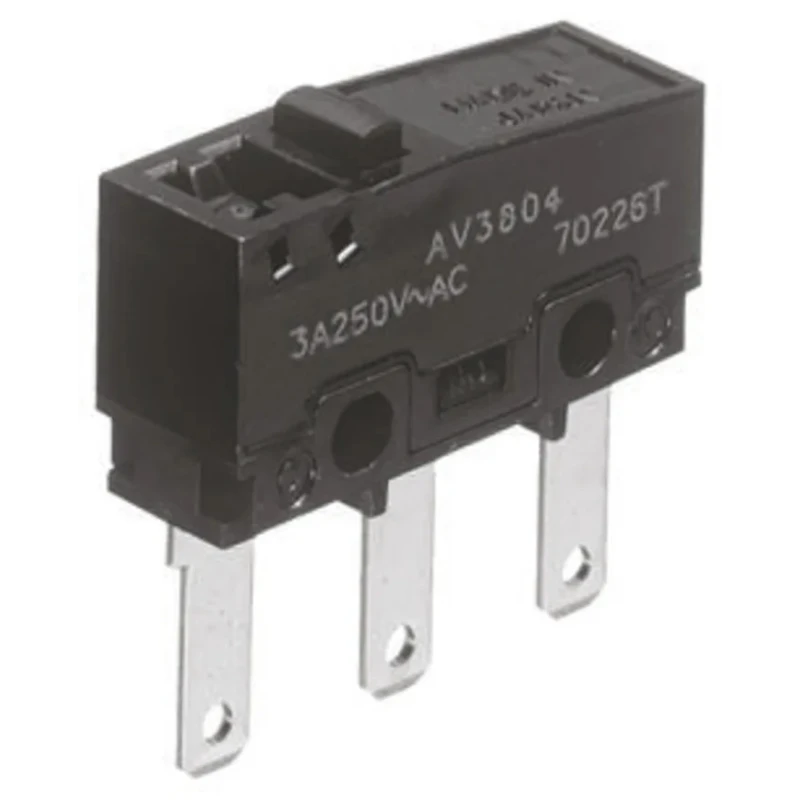

Panasonic Pin Plunger Micro Switch Tab Terminal 100mA 250V ac 30V dc SPCO AVM3805613-A
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Model | AVM3805613-A |
| Series | AVM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPCO |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -25°C |
| Terminal type | Tab |
| Standards/Approvals | RoHS, SEMKO, UL, VDE, CSA |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Operating Force | 1.47N |
| Mechanical Life | 10Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Subminiature |
Key Features
- This switch features a pin plunger actuator type for precise control.
- It supports a contact current of 100mA with a subminiature form factor.
- The contact configuration is SPCO, providing single pole changeover functionality.
- Operating temperature ranges from -25°C to +85°C, suitable for various environments.
- The switch requires an operating force of 1.47N for actuation.
- It offers high mechanical reliability with a life of 10 million operations.
- Conforms to standards RoHS, SEMKO, UL, VDE, and CSA ensuring quality and safety.
- Ideal for use in communication equipment, vending machines, security systems, data systems, and medical equipment.
Product Description
Panasonic AVM3805613-A Pin Plunger Micro Switch is a subminiature high precision switch featuring a pin plunger actuator and tab terminal connection suited for precise electrical switching applications. Rated for a switch contact current of 100mA, it operates safely at 250V AC and 30V DC with SPCO contact configuration, providing reliable single pole changeover switching.
Designed for demanding industrial, communication, and medical environments, it operates effectively within a temperature range of -25°C to 85°C and demands an operating force of 1.47N ensuring consistent actuation performance. The switch boasts a long mechanical life of 10 million operations, underscoring its durability and suitability for prolonged use.
Certified to international standards including RoHS, SEMKO, UL, VDE, and CSA, it meets global safety and environmental requirements. The switch's flux resistant construction with integrally moulded terminals ensures enhanced reliability and solderability. Its compact subminiature design offers space-saving advantages in equipment design.
Typical applications include communication equipment, vending machines, security systems, data processing equipment, and medical instrumentation where precise and reliable switching is paramount. This series is known for long electrical and mechanical life, making it an ideal choice for high-reliability industrial and commercial systems.
Pin plunger actuator type for precise mechanical control. Tab terminal for easy integration into circuits. Rated 100mA contact current at 250V AC and 30V DC. SPCO contact configuration enabling single pole changeover switching.
Operating force of 1.47N suitable for responsive actuation. Wide operating temperature range from -25°C to 85°C for versatility. Long mechanical life of 10 million operations ensuring durability. Meets RoHS, SEMKO, UL, VDE, and CSA certifications.
Manufactured in Thailand with high quality standards. Explore more precision Micro Switches and electrical components at EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The micro switch features an SPCO (Single Pole Change Over) contact configuration, allowing for reliable switching between two circuits.
It operates effectively within a temperature range of -25°C to 85°C, making it suitable for various environments.
This model is rated for a contact current of 100mA, ensuring it can handle the specified electrical loads.
The switch uses a pin plunger actuator type, which provides precise mechanical control for actuation.
The required operating force for this micro switch is 1.47N, ensuring responsive actuation performance.
It conforms to several certifications including RoHS, SEMKO, UL, VDE, and CSA, ensuring compliance with safety and environmental standards.
This micro switch boasts a mechanical life of 10 million operations, highlighting its durability for prolonged use.
It operates safely at 250V AC and 30V DC, making it versatile for different electrical applications.
This switch features tab terminals, which facilitate easy integration into circuits.
Typical applications include communication equipment, vending machines, security systems, data processing equipment, and medical instrumentation.
This model is manufactured in Thailand, adhering to high quality standards.
