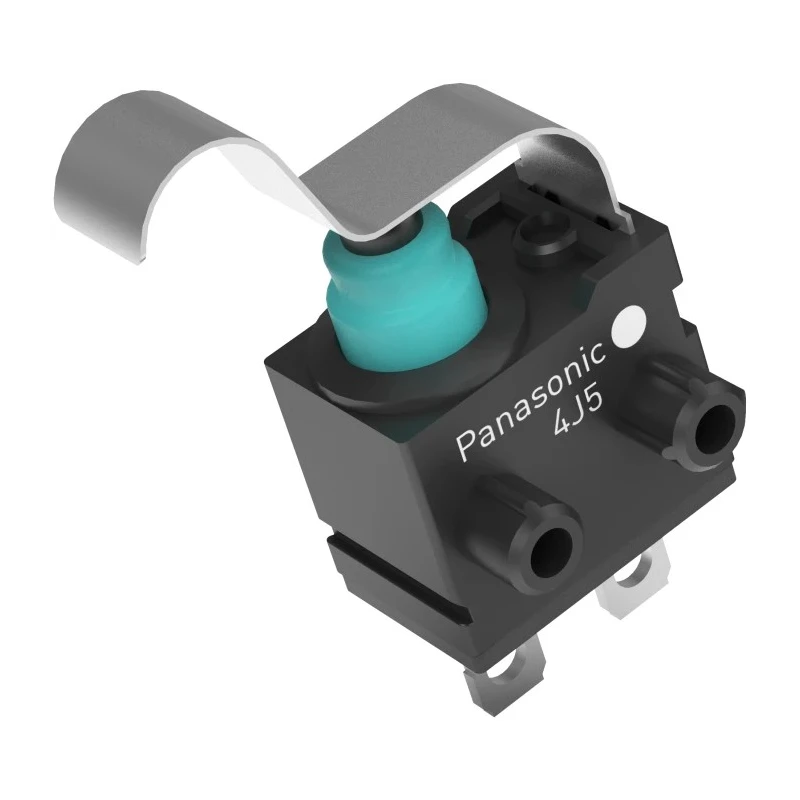

Panasonic Simulated Roller Lever Snap Action Micro Switch, Solder Terminal, 50mA, 16 V dc, SPST, IP67 ASQM17438-A

Panasonic ASQM17438-A Snap Action Micro Switch features a simulated roller lever actuator and solder terminals designed for high reliability in low level switching loads. It offers a contact current rating of 50mA at 16 V dc with a Single Pole Single Throw (SPST) contact configuration and is rated IP67 for protection against dust and immersion in water.

The switch operates reliably over a wide temperature range from -40°C to 85°C with a modest operating force of 1.5N, suitable for subminiature applications where space is limited.

Designed primarily for use in automotive applications such as door opening detection and shift lever position sensing, it is also widely used in household appliances including vacuum cleaners, air conditioners, washing machines, and electric power tools. Its silent operation is achieved through sliding contacts enhancing user comfort and product lifespan.

With compliance to REACH and RoHS standards, the ASQM17438-A switch meets modern environmental and safety regulations, making it suitable for diverse industrial and commercial automation systems.

Simulated roller lever actuator for precise switch activation. Solder terminal type ensures secure connectivity. Supporting a contact current of 50mA at 16 V dc. Single Pole Single Throw (SPST) contact configuration. IP67 rating provides dust tight and water immersion protection.

Operating force of 1.5N ensures ease of actuation. Wide operating temperature range from -40°C to 85°C. Subminiature microswitch design for compact applications. Complies with REACH and RoHS standards for safety and environmental compliance.

Suitable for automotive, household appliances, and industrial automation use.

This Panasonic ASQM17438-A micro switch is manufactured in Thailand and is new, ready for integration into industrial, laboratory, and commercial control systems requiring dependable low current switching performance. Browse our selection of Micro Switches and reliable automation components at EnvMart.
