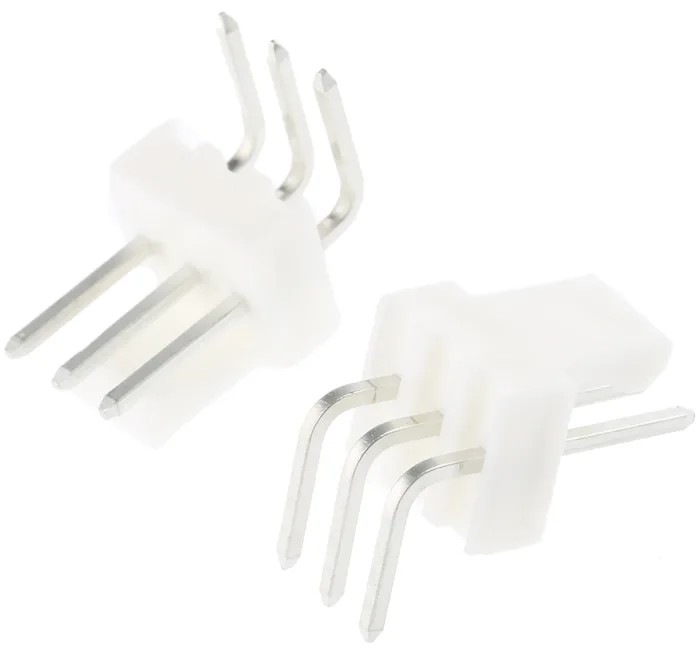

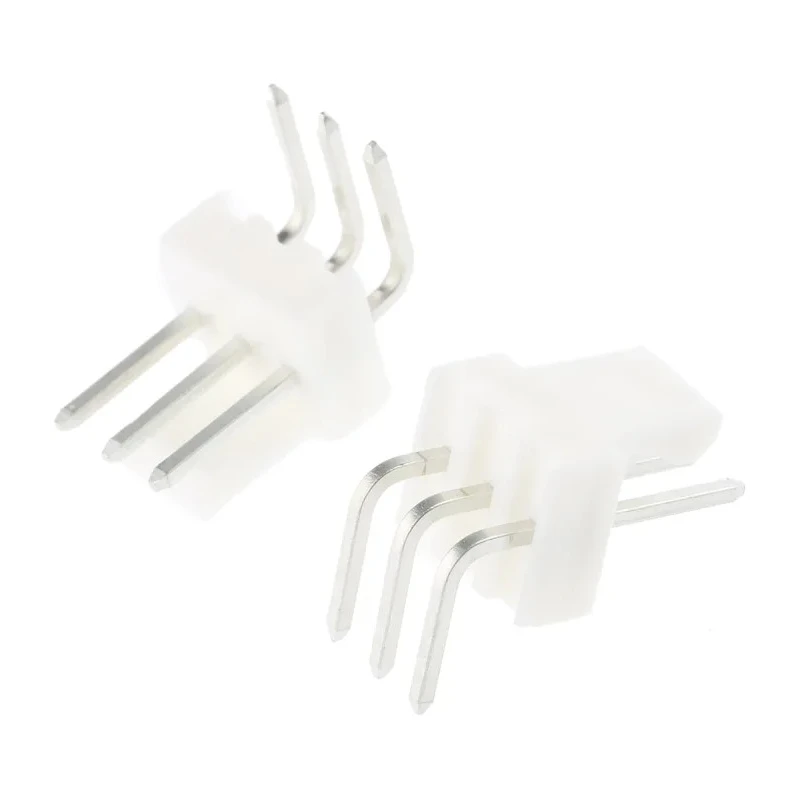

Molex KK 254 Series Right Angle Through Hole Pin Header 3 Contacts 2.54 mm Pitch 1 Row Unshrouded 22-05-3031
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 4A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | KK 254 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.58mm |
Key Features
- Constructed with brass contacts featuring tin plating for reliable conductivity.
- Features a nylon housing material rated UL 94V-0 white for flame resistance.
- Supports a current rating of 4A and voltage rating of 250V for electronic applications.
- Designed with a 90° right angle orientation and through hole mount for PCB integration.
- Operates in temperatures from -40°C up to 105°C, ensuring durability in varied conditions.
- Termination is solder type with male contact gender and tail pin length of 3.58 mm.
- Unshrouded configuration allows for easy wire-to-board connection with friction lock compatibility.
Product Description
Molex 22-05-3031 KK 254 Series right angle through hole pin header features 3 male contacts arranged in a single row with 2.54 mm pitch, suitable for wire-to-board connector systems. The pin header is unshrouded and constructed with brass contacts plated with tin to ensure optimal electrical conductivity and corrosion resistance. Its housing is made of white nylon material compliant with UL 94V-0 standards for high flame resistance.
Designed for industrial and electronic applications, this pin header supports a current rating of 4A and voltage rating of 250V, capable of reliable operation between temperatures from -40°C to 105°C. The right angle orientation and through-hole mount type facilitate secure and space-efficient PCB integration, making it ideal for use in industrial control systems, automation, consumer electronics, and communication equipment.
The termination type is solder, with a tail pin length of 3.58 mm, and the unshrouded design allows compatibility with Molex 2695 Series housings featuring friction lock capabilities. These pin headers allow for end-to-end stacking, simplifying PCB design and assembly processes. It is commonly used for creating robust connections in wire-to-board applications where space constraints and reliability are critical.
Brass contacts with tin plating for durable and stable electrical connections. Nylon UL 94V-0 white housing material providing flame resistance and mechanical support. Rated for 4A current and 250V voltage across a wide operating temperature range.
Right angle, through hole mount allows compact PCB connector layouts. Termination is solder type with male contact gender and a 3.58 mm tail pin length. Unshrouded and compatible with friction lock housings for secure wire-to-board interface.
Ideal for industrial, laboratory, and electronic device assembly applications. Explore Molex PCB connector solutions and other electronic components to optimize your circuit design with EnvMart’s comprehensive catalog.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this pin header is 250V, making it suitable for various electronic applications.
This pin header supports a current rating of 4A, allowing for reliable electrical connections in your applications.
The contacts of this pin header are arranged with a pitch size of 2.54 mm, which is standard for many PCB applications.
It features brass contacts with tin plating for conductivity and a nylon housing material rated UL 94V-0 for flame resistance.
This pin header operates effectively in temperatures ranging from -40°C to 105°C, ensuring functionality in various environments.
This model has 3 contacts arranged in a single row, suitable for wire-to-board applications.
The termination type for this pin header is solder, designed for secure connections on PCBs.
This pin header features a right angle orientation, which is beneficial for space-efficient PCB layouts.
The tail pin length of this pin header is 3.58 mm, allowing for effective soldering onto PCBs.
This model is unshrouded, which facilitates easy wire-to-board connections and compatibility with friction lock housings.
The mount type for this pin header is through hole, allowing for secure integration into printed circuit boards.
This pin header is suitable for industrial control systems, automation, consumer electronics, and communication equipment.
