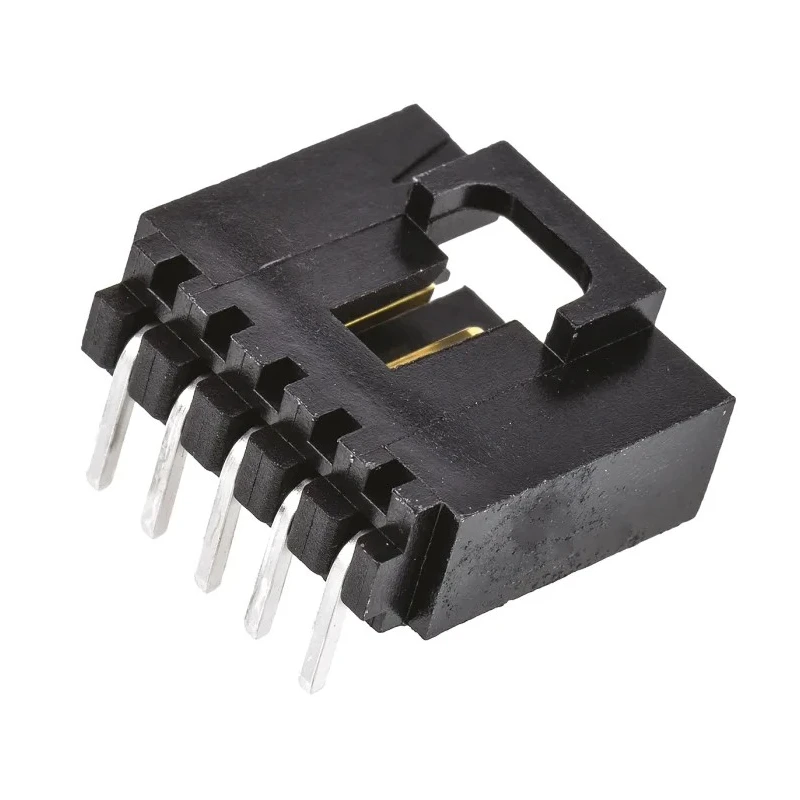

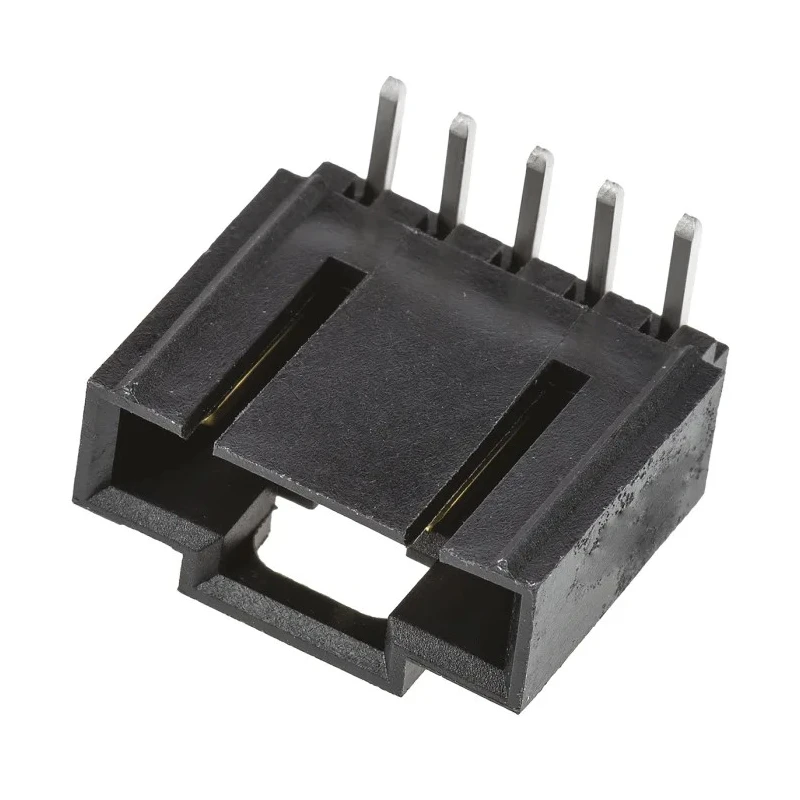

Molex SL Series Right Angle Through Hole PCB Header, 5 Contact(s), 2.54 mm Pitch, 1 Row, Shrouded 70553-0004
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | SL |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.3mm |
| Mating Pin Length | 6.1mm |
Key Features
- The header features phosphor bronze contacts plated with gold for reliable conductivity.
- It supports a maximum current rating of 3A and a voltage rating of 250V.
- Manufactured with thermoplastic housing and a shrouded design for secure mating.
- Operating temperature range extends from -40°C to 105°C, ensuring performance in varied environments.
- Tail pin length is 3.3 mm and mating pin length is 6.1 mm, suitable for through-hole PCB mounting.
- Right angle orientation allows space-saving on PCBs while maintaining robust contact.
- Designed to mate with Molex 70066G and 70066N series housings for flexible connectivity solutions.
- This connector is ideal for applications requiring wire-to-board interfacing in industrial and electronic equipment.
Product Description
Molex 70553-0004 is a SL Series right angle through hole PCB header featuring 5 male contacts arranged in a single row with a 2.54 mm pitch. The shrouded connector system provides enhanced protection and reliability for wire-to-board connections in electronic components, power & connectors sectors.
This header is built with a thermoplastic housing and phosphor bronze contacts plated with gold to ensure excellent conductivity and corrosion resistance. It supports a current rating of 3A and voltage rating of 250V, suitable for moderate power applications.
Operating temperature ranges from -40°C to 105°C, allowing it to perform well in various industrial, manufacturing, and electronic environments. The tail pin length of 3.3 mm and mating pin length of 6.1 mm provide secure through hole PCB mounting. The right angle orientation optimizes PCB layout for space constraints.
This header mates with Molex 70066G and 70066N series housings, making it versatile for integration into complex wiring harness assemblies. The header features high-quality phosphor bronze contacts plated with gold. It has a compact 1-row 5-contact configuration with 2.54 mm pitch.
Shrouded for secure mating and protection against accidental contact. Rated for 3A current and 250V voltage, suitable for a variety of electrical applications. Wide operating temperature tolerance from -40°C to 105°C. Tail and mating pin lengths designed for robust through hole mounting.
Right angle orientation saves PCB space and improves design flexibility. Manufactured in the United States ensuring consistent quality standards.
This Molex SL Series header is ideal for electronic component manufacturing, industrial assembly, and power connector applications. It enables efficient wire-to-board connections used in automation, telecommunications, consumer electronics, and instrumentation.
Explore more PCB Headers and connectors in the Electronics Components category at EnvMart for reliable, high-performance connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 3A.
This header has a voltage rating of 250V.
The contacts in this connector are spaced at a pitch of 2.54 mm.
The housing is made from thermoplastic, and the contacts are phosphor bronze plated with gold for conductivity.
The operating temperature range extends from -40°C to 105°C.
The tail pin length is 3.3 mm, and the mating pin length is 6.1 mm.
This header uses a through hole mounting type.
This model features a 1-row configuration with 5 male contacts.
It is designed to mate with Molex 70066G and 70066N series housings.
The orientation of this header is right angle, which helps save space on PCBs.
This connector utilizes a wire-to-board connector system.
