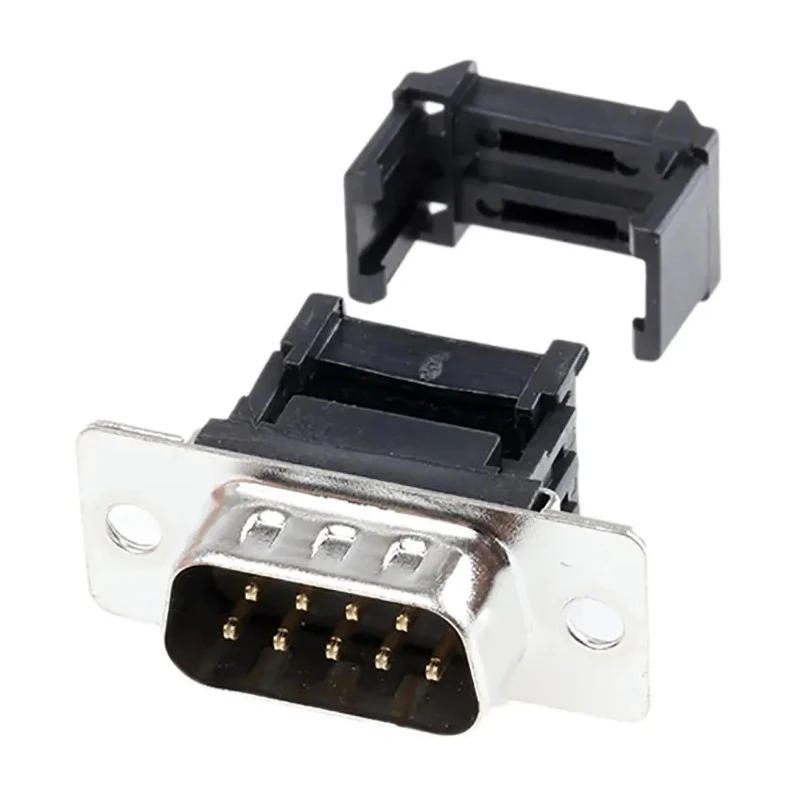

ASSMANN WSW 9-Way IDC Connector Male for Cable, 2 Row, 250V AC, 1A, Gold Tin Nickel Plating A-DSF 09LPIII/Z
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V ac |
| Brand | ASSMANN WSW |
| Orientation | Straight |
| Current | 1A |
| Model | A-DSF 09LPIII/Z |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AD |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold, Tin, Nickel |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shrouded/Unshrouded | Shrouded |
Key Features
- Features 9 contacts arranged in 2 rows for efficient wiring.
- Designed for 250V AC voltage and 1A current capacity.
- Gold, tin, and nickel plated contacts ensure high conductivity and corrosion resistance.
- Shrouded and male connector type suitable for cable mounting.
- Constructed with brass contacts and polybutylene terephthalate housing for durability.
- Supports a wide operating temperature range from -55°C to 105°C.
- Straight orientation with IDC termination type.
- Ideal for various electronic and industrial applications requiring robust IDC connectors.
Product Description
ASSMANN WSW A-DSF 09LPIII/Z is a 9-Way IDC Connector Male designed for cable mounting with 2 rows of contacts and a pitch of 2.54mm. Rated for 250V AC and 1A, this shrouded connector offers robust electrical connections in industrial, electronic, and manufacturing environments.
The connector features brass contacts plated with gold, tin, and nickel to enhance conductivity and protect against corrosion. Its polybutylene terephthalate housing provides excellent mechanical strength and durability, ensuring reliable performance across a wide operating temperature range from -55°C to 105°C.
This straight orientation connector is terminated using the IDC (Insulation Displacement Contact) method, simplifying cable assembly while maintaining secure contact. It is part of the AD series by ASSMANN WSW and is widely employed in power connectors, electronic component assemblies, and cable harness installations.
Features 9 contacts arranged in 2 rows for efficient wiring. Rated for 250V AC voltage and 1A current capacity. Contact plating includes gold, tin, and nickel for enhanced durability and conductivity. Constructed with brass contacts and polybutylene terephthalate housing.
Shrouded male connector suitable for cable mount applications. Operates reliably between -55°C and 105°C temperature range. 2.54mm pitch allows for precise PCB and cable interfacing. IDC termination simplifies installation and improves production efficiency.
Manufactured in China with new condition guaranteed.
This IDC Connector is suitable for industrial, laboratory, manufacturing, and electronic applications requiring secure wiring and reliable connector performance. It enables efficient cabling and flexible connectivity in power systems and electronic devices.
Explore more quality IDC Connectors and cable mounting solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 250V AC.
It has a current capacity of 1A.
The connector features 9 contacts arranged in 2 rows.
It is constructed with brass contacts and a polybutylene terephthalate housing.
It operates reliably between -55°C and 105°C.
This model employs the IDC (Insulation Displacement Contact) termination method.
The pitch of the contacts is 2.54mm.
This connector is shrouded, which enhances its protection and usability.
It is suitable for industrial, laboratory, manufacturing, and electronic applications requiring secure wiring.
The connector has a straight orientation.
It is manufactured in China.
The contacts are plated with gold, tin, and nickel to enhance conductivity and protect against corrosion.
