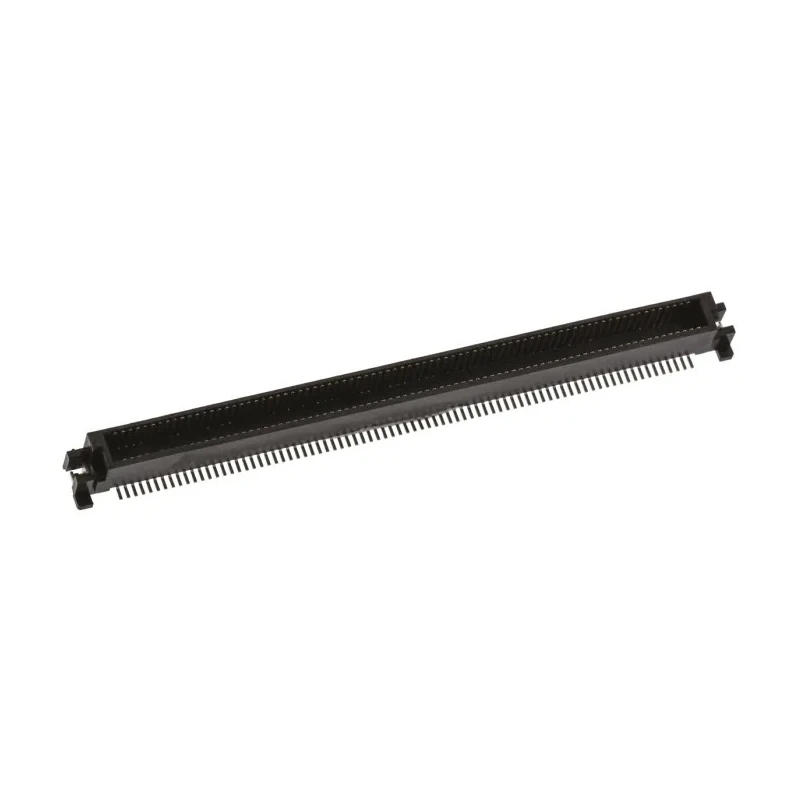

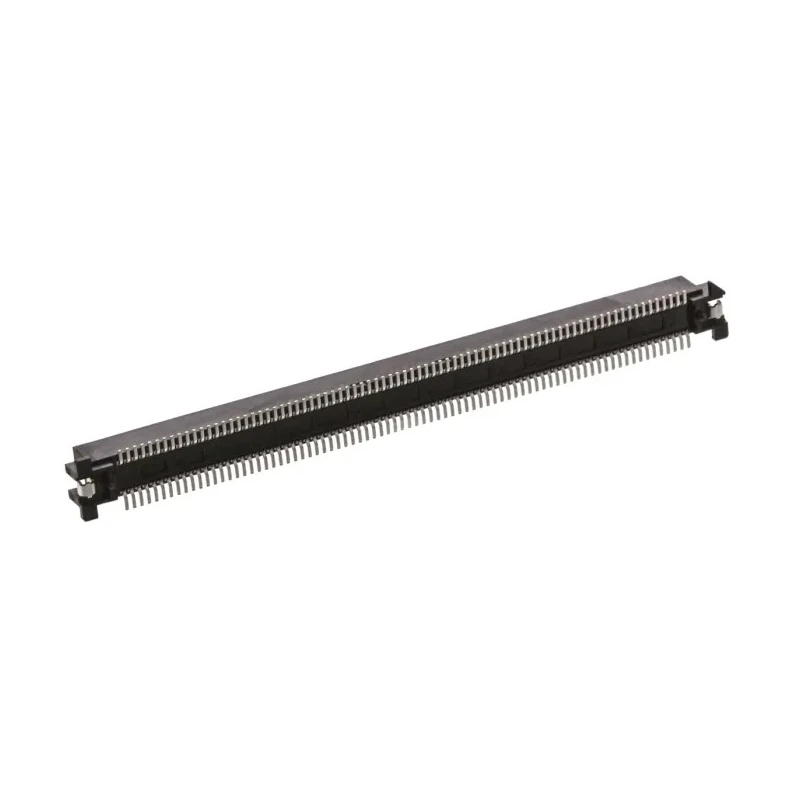

Molex SlimStack Series Straight Surface PCB Header 160 Contacts 0.64 mm Pitch 2 Row Shrouded 55091-1674
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 100V |
| Brand | Molex |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | SlimStack |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 0.64mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 160 |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
| Mating Pin Length | 6mm |
| Row Pitch | 2.27mm |
Key Features
- Features a shrouded design for enhanced protection and alignment.
- Constructed with liquid crystal polymer housing for durability.
- Gold-plated copper alloy contacts ensure high conductivity and corrosion resistance.
- Designed to operate at voltages up to 100V and currents of 500mA.
- Supports surface mount technology (SMT) for efficient PCB assembly.
- Suitable for applications requiring a mating pin length of 6 mm.
- Operating temperature range from -40°C to 105°C to accommodate various environments.
- Complies with RoHS standards ensuring environmental safety.
Product Description
Molex 55091-1674 SlimStack Series Straight Surface PCB Header is a highly reliable board-to-board connector featuring 160 gold-plated contacts spaced at a precise 0.64 mm pitch. The two-row, shrouded design provides excellent mating retention and alignment, making it suitable for high-density interconnection needs.
The housing is made from durable liquid crystal polymer, offering robust mechanical strength and thermal stability. The connector system supports surface mounting, facilitating modern PCB manufacturing processes.
This PCB header operates efficiently at current ratings of 500mA and voltage up to 100V, supporting demanding electronic applications. The gold plating on copper alloy contacts ensures excellent conductivity and resistance against corrosion, enhancing long-term reliability.
Designed for environments with operating temperatures ranging between -40°C and 105°C, this connector meets the demanding requirements of industrial, manufacturing, electronics assembly, and telecommunications sectors. Its solder termination type ensures secure placement on PCBs.
The product adheres to RoHS environmental standards, confirming its compliance with regulations on hazardous substances. Manufactured in Japan, this connector embodies high-quality engineering and precision manufacturing standards.
Features a shrouded design for enhanced protection and alignment. Housing made from liquid crystal polymer ensuring durability. Gold-plated copper alloy contacts for superior conductivity. Supports surface mount technology on PCB assemblies.
Rated for 500mA current and 100V voltage applications. Operating temperature range of -40°C to 105°C. Mating pin length of 6 mm for reliable connections. RoHS compliant for environmental safety. Manufactured in Japan for high quality and reliability.
This Molex SlimStack PCB header series is ideal for various industrial applications including electronics manufacturing, telecommunications equipment, and high-density computing devices requiring compact and reliable board interconnections. For further technical details and design integration, Molex’s SlimStack connectors provide a premium solution within the PCB header category at EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a maximum voltage of 100V and a current rating of 500mA.
The contacts are spaced at a pitch of 0.64 mm.
The housing is constructed from liquid crystal polymer, which provides durability and thermal stability.
It features a total of 160 contacts.
It can operate in temperatures ranging from -40°C to 105°C.
Yes, it complies with RoHS standards, ensuring environmental safety.
It uses a solder termination type for secure placement on PCBs.
The mating pin length is 6 mm.
This model is a board-to-board connector system.
The orientation of this connector is straight.
The contacts are made from copper alloy and are gold-plated for enhanced conductivity and corrosion resistance.
It is manufactured in Japan.
