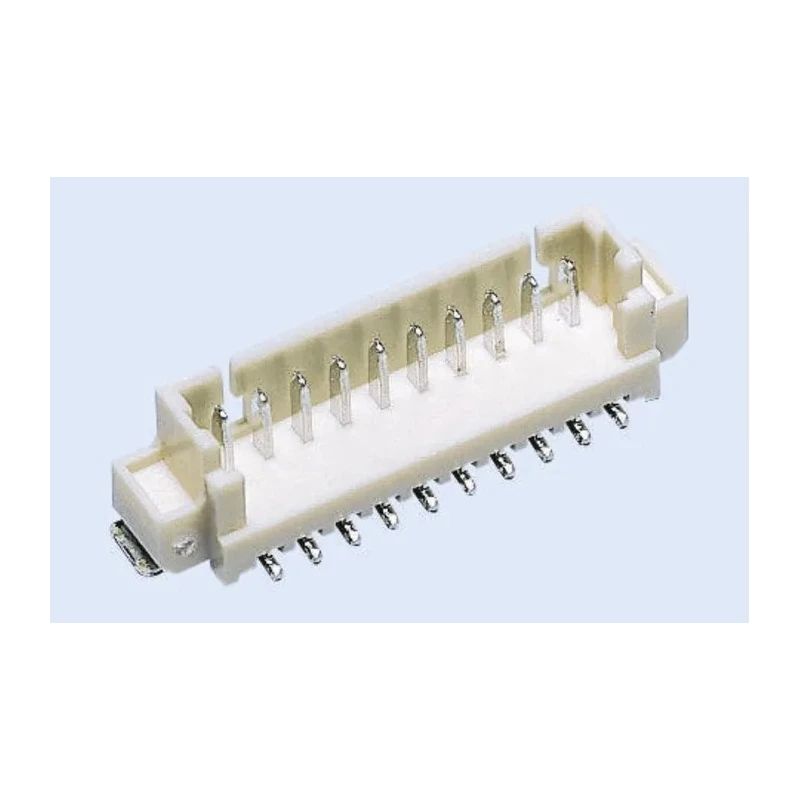

Molex PicoBlade Series Straight Surface PCB Header 13 Contacts 1.25 mm Pitch 1 Row Shrouded 53398-1371

Molex 53398-1371 PicoBlade Series Straight Surface PCB Header features 13 male contacts arranged in a single row with a precise 1.25 mm pitch, offering excellent compactness for electronic assemblies.

This surface mount PCB header utilizes a durable nylon housing and phosphor bronze contacts with tin plating to ensure robust electrical performance and mechanical reliability.

Designed for 1 A current capacity, this PCB header is ideal for applications requiring efficient wire-to-board interconnection with space-saving benefits up to 45% compared to standard 2.00 mm pitch connectors.

The shrouded design incorporates locking windows that engage friction locks for secure mating connections, preventing accidental unmating caused by vibration or mishandling, suitable for industrial and commercial use.

Solder tabs on the SMT version provide enhanced PCB retention and act as strain relief, reducing the risk of solder joint cracking during handling or thermal cycling.

Typical applications include automotive alarm systems, car audio and DVD players, industrial process controls, medical patient monitoring equipment, and other high-density wiring harnesses.

Compact 1.25 mm pitch design provides PCB space savings up to 45% compared to 2.00 mm pitch systems. Rated for 1 A current capacity suitable for various electronic applications. Shrouded design with friction locking mechanism ensures secure mating and prevents accidental disconnects.

Surface mount type with solder termination and solder tabs for strong PCB retention and strain relief. Housing constructed from durable nylon material for reliable insulation. Phosphor bronze contacts plated with tin for excellent conductivity and corrosion resistance.

Operating temperature range from -40°C to 105°C for versatile environmental use. Single row, straight orientation connector optimized for surface PCB mounting.

This Molex PicoBlade Series PCB Header combines compact size with reliable performance, making it suitable for demanding industrial, automotive, medical, and commercial electronics manufacturing environments.
