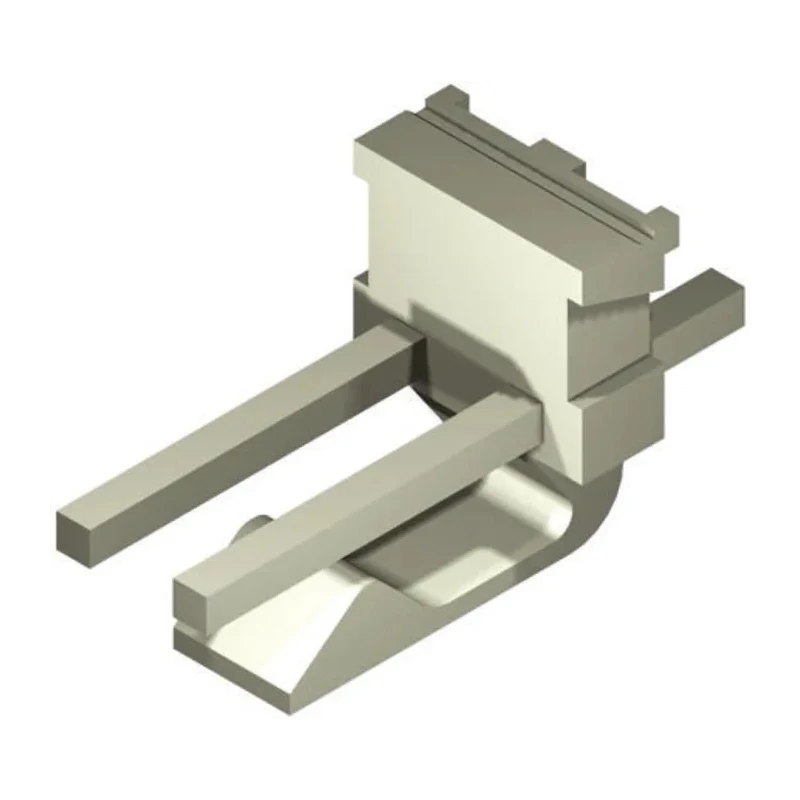

Molex KK 396 Series Straight Through Hole Pin Header, 2 Contacts, 3.96 mm Pitch, 1 Row, Unshrouded 41791-0832
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 7A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | KK 396 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.56mm |
Key Features
- Features 2 gold-plated brass male contacts for reliable conductivity.
- Constructed with polyester housing material ensuring durability.
- Designed for through hole mounting with straight orientation.
- Operates safely within -40°C to 80°C temperature range.
- Supports a maximum current rating of 7A and voltage rating of 250V.
- Contact tail pins are 3.56 mm in length for secure solder termination.
- Compatible with Molex 2139, 3069, 6442, 41695 series housings and 2145, 41815 series PCB connectors.
- Unshrouded connector style allows easy mating and unmating operations.
Product Description
Molex 41791-0832 KK 396 Series Straight Through Hole Pin Header is a high-quality wire-to-board connector designed with 2 contacts arranged in a single row with 3.96 mm pitch. This unshrouded pin header features gold-plated brass contacts housed in durable polyester, providing reliable electrical performance and robust mechanical strength.
Operating over a temperature range of -40°C to 80°C and rated for 7A current and 250V voltage, this connector ensures safe and efficient operation in electronic assemblies. The straight orientation and through-hole mount type facilitate secure soldering on printed circuit boards.
This pin header mates with several Molex connector housings including the 2139, 3069, 6442, and 41695 series, and PC board connectors of the 2145 and 41815 series, making it suitable for versatile applications in circuit board design and manufacturing.
The 3.56 mm tail pin length allows for solid solder termination, critical in maintaining mechanical and electrical integrity during use. Typical applications include use in industrial electronics, consumer electronics assembly, and repair, where secure and efficient wire-to-board connection is essential.
Features 2 gold-plated brass male contacts for reliable conductivity. Constructed with polyester housing material ensuring durability. Designed for through hole mounting with straight orientation. Operates safely within -40°C to 80°C temperature range.
Supports a maximum current rating of 7A and voltage rating of 250V. Contact tail pins are 3.56 mm in length for secure solder termination. Compatible with Molex 2139, 3069, 6442, 41695 series housings and 2145, 41815 series PCB connectors.
Unshrouded connector style allows easy mating and unmating operations. Suitable for industrial, electronics manufacturing, and repair applications.
This high-quality Molex pin header 41791-0832 ensures superior performance and durability in demanding environments. Browse EnvMart's extensive inventory of electronic connectors and components for your design and manufacturing needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 7A.
It has a voltage rating of 250V.
The pitch size is 3.96 mm.
It operates safely within a temperature range of -40°C to 80°C.
The housing is made of polyester, and the contacts are gold-plated brass.
The contact tail pins are 3.56 mm in length.
This model is designed for through hole mounting.
The orientation of this pin header is straight.
This model features 2 contacts arranged in a single row.
It uses solder termination.
It is suitable for applications in industrial electronics, consumer electronics assembly, and repair.
